KM36RV-JRSQ (1988)
Toyota Liteace
Production
Aug 1988
-
Jan 1992
Engine
5KC
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

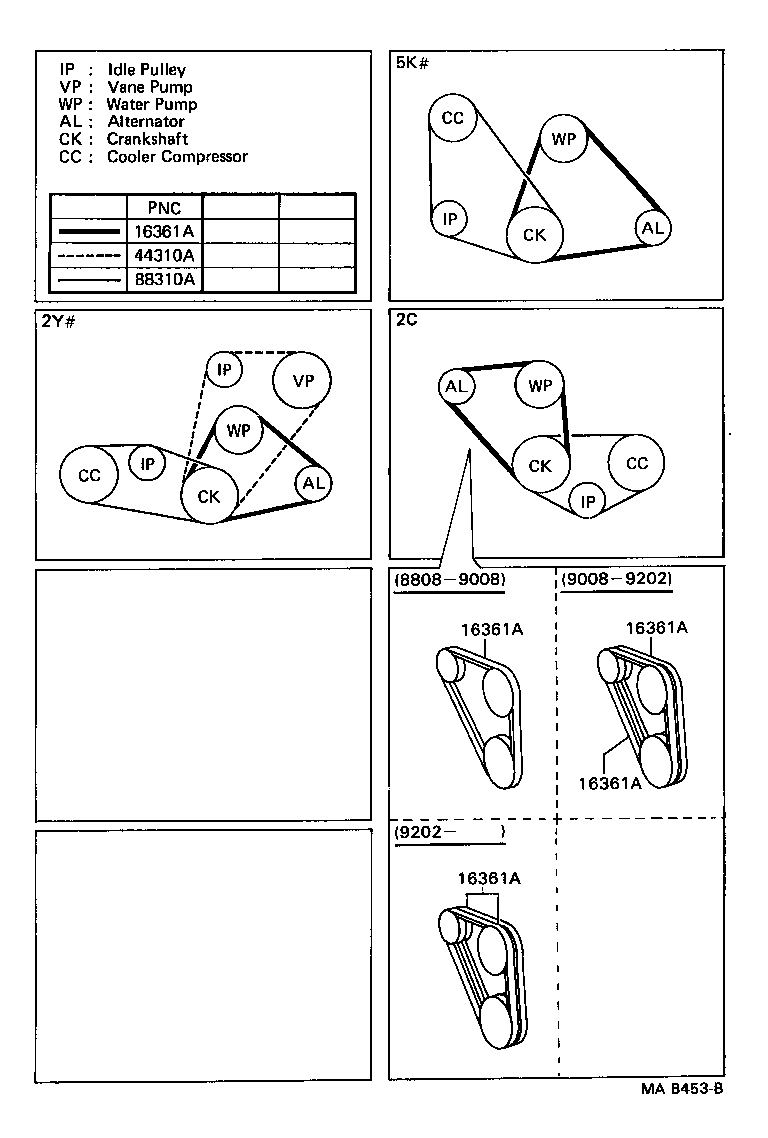

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00870 |
5K..KM36,37..4H W(12V 40A ALTERNATER) |
1 | ||
| 99321-00870 |
5KC..KM36;5K..KM36..4F;5K..KM30,36..MRF |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00870 |
5K..KM36,37..4H W(12V 40A ALTERNATER) |
1 | ||
| 99321-00870 |
5KC..KM36;5K..KM36..4F;5K..KM30,36..MRF |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00870 |
5K..KM36,37..4H W(12V 40A ALTERNATER) |
1 | ||
| 99321-00870 |
5KC..KM36;5K..KM36..4F;5K..KM30,36..MRF |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00870 |
5K..KM36,37..4H W(12V 40A ALTERNATER) |
1 | ||
| 99321-00870 |
5KC..KM36;5K..KM36..4F;5K..KM30,36..MRF |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00870 |
5K..KM36,37..4H W(12V 40A ALTERNATER) |
1 | ||
| 99321-00870 |
5KC..KM36;5K..KM36..4F;5K..KM30,36..MRF |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00980 |
KM30,37;KM36..06S..ARL;KM36..SRF..(4H,5F) |
1 | ||
| 99322-00980 |
KM36..ARL |
1 | ||
