KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5K#

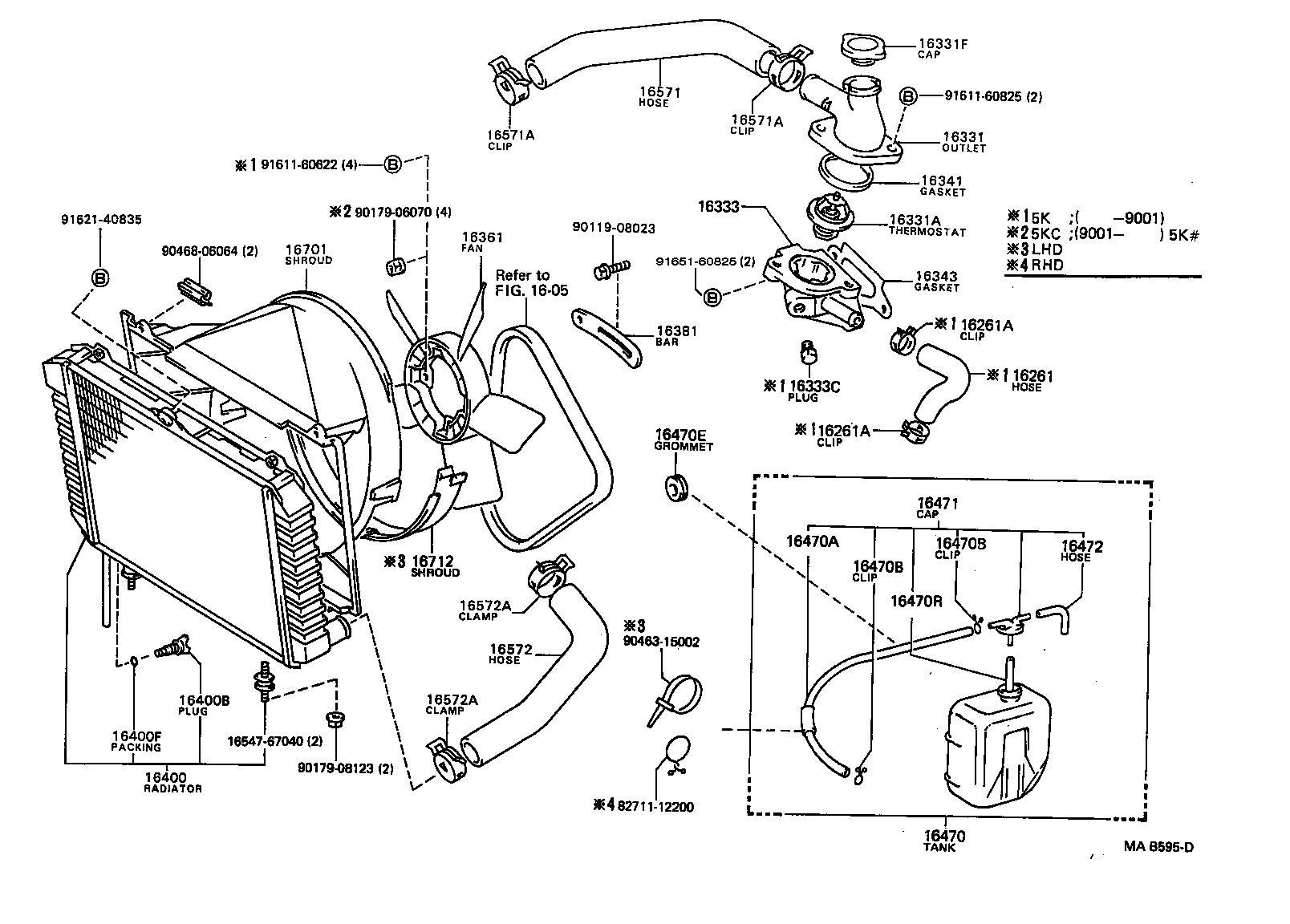

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16331 16331A 16331F 16333 16333C 16341 16343 16361 16381 16400 16400B 16400F 16470 16470A 16470B 16470B 16470E 16470R 16471 16472 1654767040 16571 16571A 16571A 16572 16572A 16572A 16701 16712 8271112200 9011908023 9017906070 9017908123 9046315002 9046806064 9161160622 9161160825 9162140835 9165160825
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-13030

5K..KM3#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22004

5K..KM3#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22004

5K..KM3#

 2
16331 - OUTLET, WATER
16331-13060

5K#..KM3#

 1
16331A - THERMOSTAT
90916-03078

5KC..KM36

*WAX 88-100

 1
90916-03083

5K..KM3#

*WAX 82-95

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-71010

5K#..KM3#

 1
16333 - HOUSING, WATER OUTLET
16333-13040

5K#..KM3#

 1
16333C - PLUG, W/HEAD TAPER SCREW
90345-53007

5K..KM3#

 1
16341 - GASKET, WATER OUTLET
16341-13030

5K#..KM3#

 1
16341-13011

5K#..KM3#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-22011

5K#..KM3#

 1
16361 - FAN
16361-44032

5K..KM3#

 1
16361-38010

5KC..KM36

 1
16361-44032

5K..KM3#..4H,5F

 1
16381 - BAR, FAN BELT ADJUSTING
16381-24011

5K#..KM3#

 1
16400 - RADIATOR ASSY
16400-13380

5K..KM3#..4H,5F

 1
16400-13380

5K..KM3#

 1
16400-13400

5KC..KM36

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

5K#..KM3#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

5K#..KM3#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-13060

5K..KM36..RHD

 1
16470-13070

5KC..KM36

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

5KC..KM36

L=1000

 1
90445-12078

5K..KM36..RHD

L=600,NO.1

 1
90445-12078

5K#..KM3#

L=600,NO.1

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5K#..KM3#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5K#..KM3#

 2
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-24173

5K#..KM3#

 1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

5K#..KM3#

L=600

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-13060

5K#..KM36..RHD

 1
16472 - HOSE, BREATHER
85338-30010

5K#..KM3#

 1
16571 - HOSE, RADIATOR, INLET
16571-13170

5K#..KM36..RHD

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31003

5K#..KM3#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31003

5K#..KM3#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-13140

5K#..KM36..RHD

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5K#..KM3#

RADIATOR SIDE

 1
90467-37002

5K#..KM3#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5K#..KM3#

RADIATOR SIDE

 1
90467-37002

5K#..KM3#

ENGINE SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-13260

5K..KM36..RHD

 1
16711-13261

5K..KM36..RHD..(4H,5F)

 1
16711-13240

5KC..KM36

 1
16711-13261

5K..KM36..RHD

 1
Common parts
16547-67040
82711-12200
90119-08023
90179-06070
90179-08123
90463-15002
90468-06064
91611-60622
91611-60825
91621-40835
91651-60825
Linked diagrams
1605

(9001- )5K

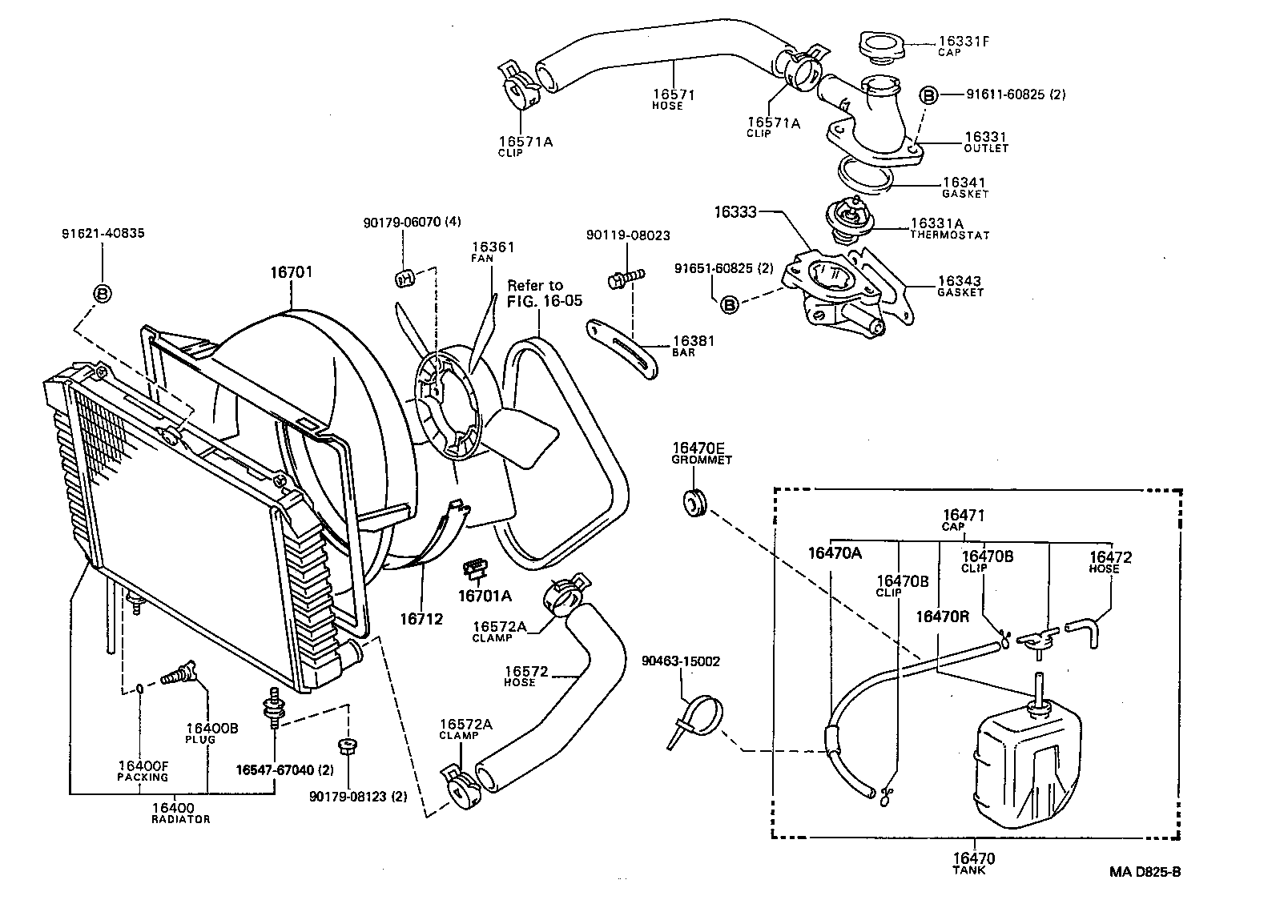

Click highlighted areas on diagram

PHILIPPINES SPEC

diagram 1605 16331 16331A 16331F 16333 16341 16343 16361 16381 16400 16400B 16400F 16470 16470A 16470B 16470B 16470E 16470R 16471 16472 1654767040 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16712 9011908023 9017906070 9017908123 9046315002 9161160825 9162140835 9165160825
Part # Description Qty Price
16331 - OUTLET, WATER
16331-13060

5K#..KM3#

 1
16331A - THERMOSTAT
90916-03078

5KC..KM36

*WAX 88-100

 1
90916-03083

5K..KM3#

*WAX 82-95

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-71010

5K#..KM3#

 1
16333 - HOUSING, WATER OUTLET
16333-13040

5K#..KM3#

 1
16341 - GASKET, WATER OUTLET
16341-13030

5K#..KM3#

 1
16341-13011

5K#..KM3#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-22011

5K#..KM3#

 1
16361 - FAN
16361-44032

5K..KM3#

 1
16361-38010

5KC..KM36

 1
16361-44032

5K..KM3#..4H,5F

 1
16381 - BAR, FAN BELT ADJUSTING
16381-24011

5K#..KM3#

 1
16400 - RADIATOR ASSY
16400-13380

5K..KM3#..4H,5F

 1
16400-13380

5K..KM3#

 1
16400-13400

5KC..KM36

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

5K#..KM3#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

5K#..KM3#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-13060

5K..KM36..RHD

 1
16470-13070

5KC..KM36

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

5KC..KM36

L=1000

 1
90445-12078

5K..KM36..RHD

L=600,NO.1

 1
90445-12078

5K#..KM3#

L=600,NO.1

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5K#..KM3#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5K#..KM3#

 2
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-24173

5K#..KM3#

 1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

5K#..KM3#

L=600

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-13060

5K#..KM36..RHD

 1
16472 - HOSE, BREATHER
85338-30010

5K#..KM3#

 1
16571 - HOSE, RADIATOR, INLET
16571-13170

5K#..KM36..RHD

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31003

5K#..KM3#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31003

5K#..KM3#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-13140

5K#..KM36..RHD

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5K#..KM3#

RADIATOR SIDE

 1
90467-37002

5K#..KM3#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5K#..KM3#

RADIATOR SIDE

 1
90467-37002

5K#..KM3#

ENGINE SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-13260

5K..KM36..RHD

 1
16711-13261

5K..KM36..RHD..(4H,5F)

 1
16711-13240

5KC..KM36

 1
16711-13261

5K..KM36..RHD

 1
Common parts
16547-67040
90119-08023
90179-06070
90179-08123
90463-15002
91611-60825
91621-40835
91651-60825
Linked diagrams
1605
