KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5K#

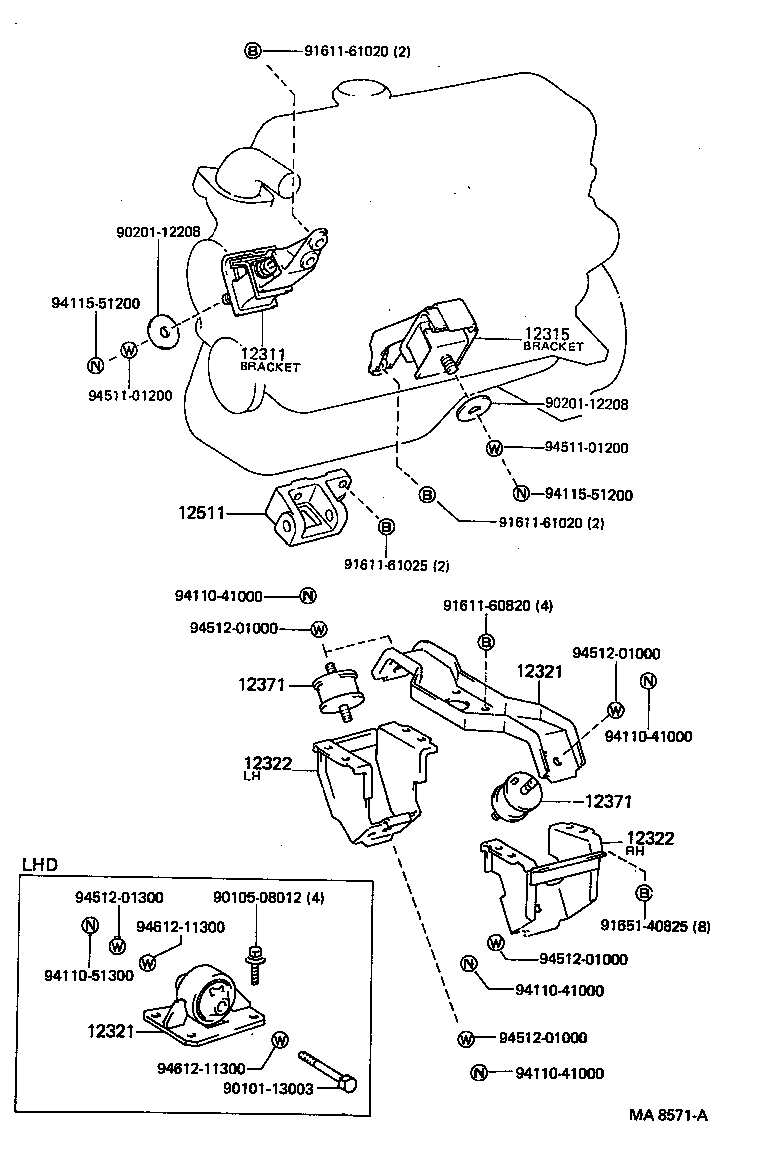

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12322 12371 12371 12511 9010113003 9010508012 9020112208 9020112208 9161160820 9161161020 9161161020 9161161025 9165140825 9411041000 9411041000 9411041000 9411041000 9411051300 9411551200 9411551200 9451101200 9451101200 9451201000 9451201000 9451201000 9451201000 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-13150

5K#..KM3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-13091

5K#..KM3#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-13040

5K#..KM36..RHD

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-13040

5K#..KM36..RHD

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-13020

5K#..KM36..RHD

LH

 1
12322-13050

5K#..KM36..RHD

RH

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-13020

5K#..KM36..RHD

LH

 1
12322-13050

5K#..KM36..RHD

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13070

5K#..KM36..RHD

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13070

5K#..KM36..RHD

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-24011

5KC..KM36;5K..KM36..4F;5K..KM30,36..MRF

 1
12511-24011

5K..KM36,37..4H

W(12V 40A ALTERNATER)

 1
Common parts
90101-13003
90105-08012
90201-12208
91611-60820
91611-61020
91611-61025
91651-40825
94110-41000
94110-51300
94115-51200
94511-01200
94512-01000
94512-01300
94612-11300
