KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5K#

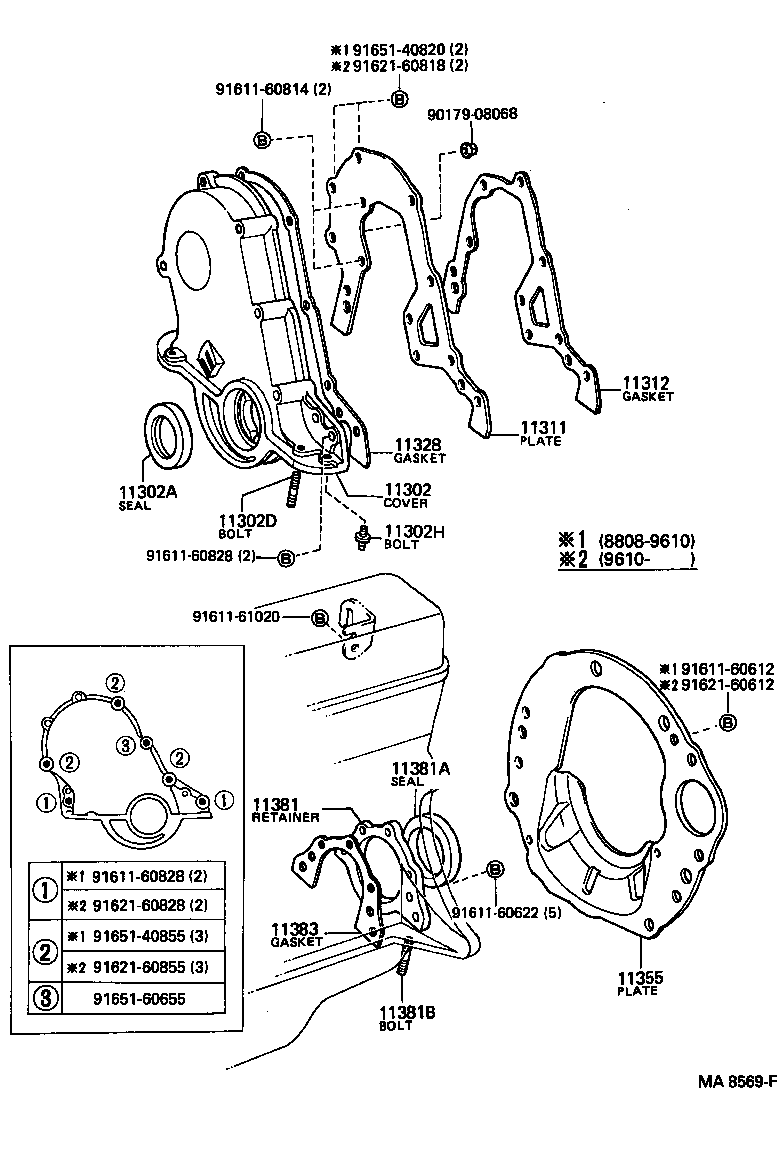

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302H 11311 11312 11328 11355 11381 11381A 11381B 11383 9017908068 9161160612 9161160622 9161160814 9161160828 9161160828 9161161020 9162160612 9162160818 9162160828 9162160855 9165140820 9165140855 9165160655
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-13042

5K#..KM3#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38022

5K#..KM3#

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06012

5K#..KM3#

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06006

5K#..KM3#

 2
11311 - PLATE, FRONT END
11311-13010

5K#..KM3#

 1
11312 - GASKET, FRONT END PLATE
11312-13040

5K#..KM3#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-13011

5K#..KM3#

 1
11355 - PLATE, REAR END
11355-13012

5K#..KM3#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-13011

5K#..KM3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

5K#..KM3#

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06035

5K#..KM3#

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-13010

5K#..KM3#

 1
Common parts
90179-08068
91611-60612
91611-60622
91611-60814
91611-60828
91611-61020
91621-60612
91621-60818
91621-60828
91621-60855
91651-40820
91651-40855
91651-60655
