KM36RV-JRSQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

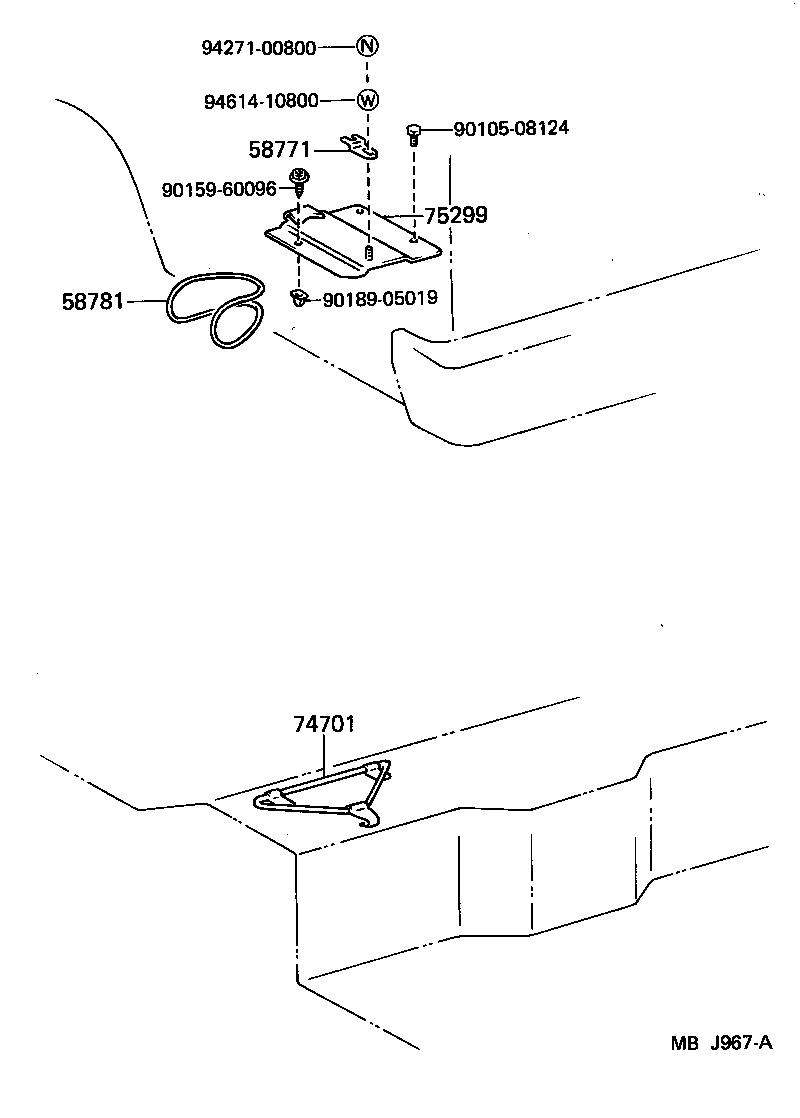

Click highlighted areas on diagram

diagram 58771 58781 74701 75299 9010508124 9015960096 9018905019 9427100800 9461410800
Part # Description Qty Price
58771 - CLAMP, JACK, NO.1
75298-95700

KM36,YM30..ARL;CM35,KM36..LHD..SRF;CM35,KM37,YM35,4#..4FC,4H,5F,5H

 1
58781 - BAND, TOOL BAG
58795-20011

KM36..ARL;CM35,YM35,41..MRF;CM35,KM36..LHD..SRF

 1
75299 - BASE, JACK HOLDER
75299-95700

KM36,YM30..ARL;CM35,KM36..LHD..SRF;CM35,KM37,YM35,4#..4FC,4H,5F,5H

 1
Common parts
90105-08124
90159-60096
90189-05019
94271-00800
94614-10800
