KM36RV-JRSQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

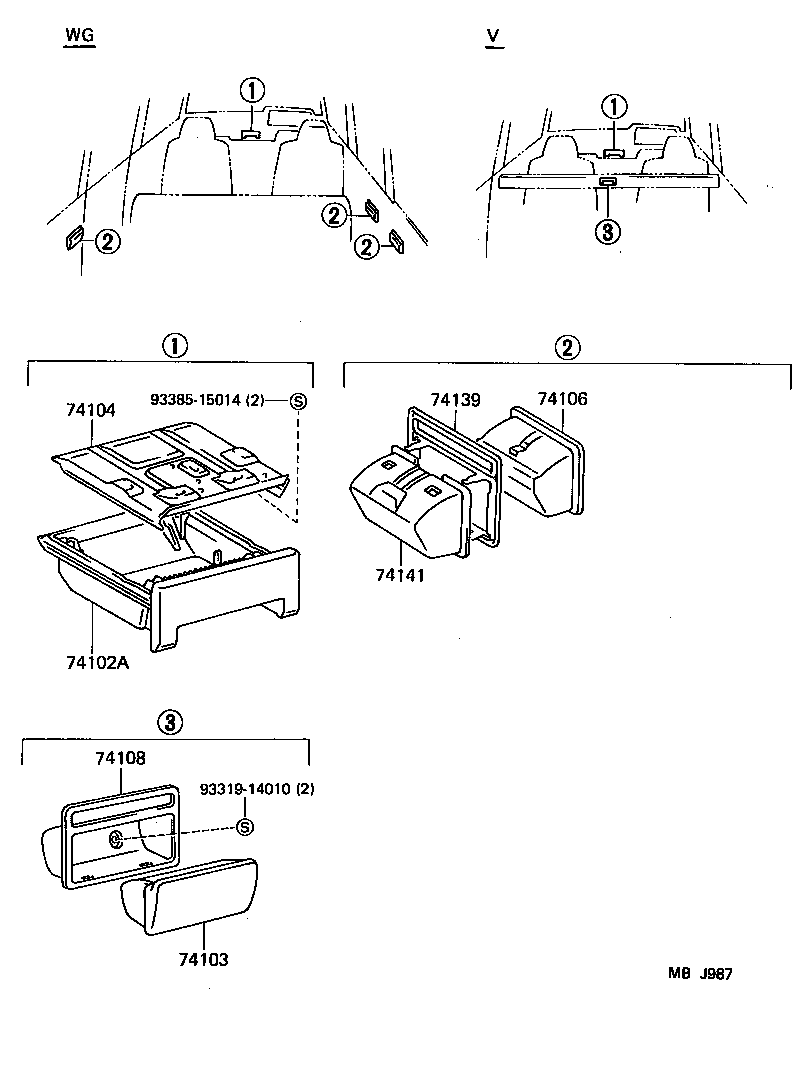

Click highlighted areas on diagram

diagram 74102A 74103 74104 74106 74108 74139 74141 9331914010 9338515014
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-9570206

CM3#,KM3#,YM3#,4#

BROWN,BROWN

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-95710

CM3#,KM3#,YM3#,4#

 1
74106 - RECEPTACLE SUB-ASSY, ASH, NO.2
74105-1001026

KM36..LHD..06S;KM36..06S..ARL;CM3#,KM36,YM31,41..05S

BROWN,BROWN

 1
74139 - RETAINER, REAR ASH RECEPTACLE, OUTER
74135-10030

KM36..LHD..06S;KM36..06S..ARL;CM3#,KM36,YM31,41..05S

 1
74141 - RETAINER, REAR ASH RECEPTACLE, INNER
74137-10030

KM36..LHD..06S;KM36..06S..ARL;CM3#,KM36,YM31,41..05S

 1
Common parts
93319-14010
93385-15014
