KM36RV-JRSQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )5K#

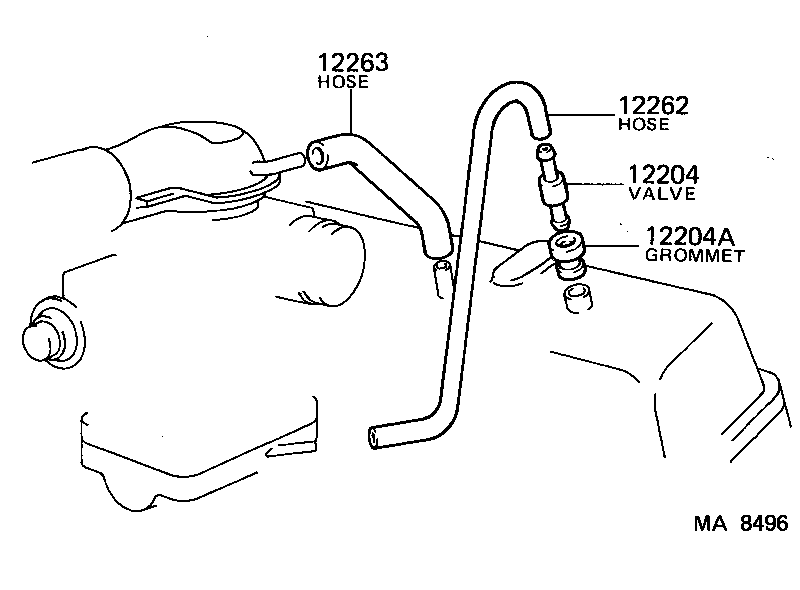

Click highlighted areas on diagram

diagram 12204 12204A 12262 12263
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-13060

5K#..KM3#

 1
12204-13090

5K#..KM3#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-16003

5K#..KM3#

 1
12262 - HOSE, VENTILATION, NO.2
12261-13060

5K..KM3#

 1
12261-13050

5KC..KM36

 1
12261-13060

5KC..KM36

ADR 36 SPEC

 1
12263 - HOSE, VENTILATION, NO.3
12262-13010

5K#..KM3#

 1
