KM36RV-JRBFE (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

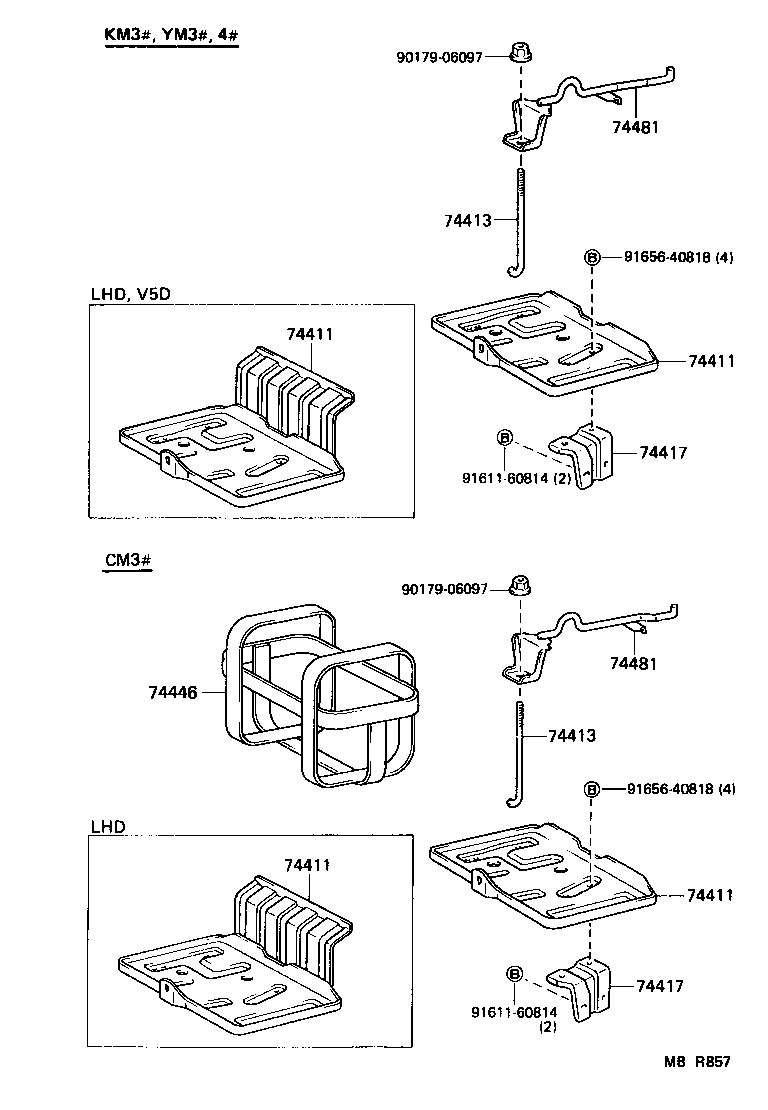

Click highlighted areas on diagram

diagram 74411 74411 74411 74411 74413 74413 74417 74417 74446 74481 74481 9017906097 9017906097 9161160814 9161160814 9165640818 9165640818
Part # Description Qty Price
74411 - CARRIER, BATTERY
74410-95709

KM36..V5D;CM36,KM3#..LHD..V4D

 1
74411 - CARRIER, BATTERY
74410-95709

KM36..V5D;CM36,KM3#..LHD..V4D

 1
74411 - CARRIER, BATTERY
74410-95709

KM36..V5D;CM36,KM3#..LHD..V4D

 1
74411 - CARRIER, BATTERY
74410-95709

KM36..V5D;CM36,KM3#..LHD..V4D

 1
74413 - BOLT, BATTERY CLAMP
74451-95J00

CM36,KM3#,YM3#

 1
74451-95J00

KM36..4H;KM36..MRF..GEN;CM36,KM30,37,YM3#

 1
74413 - BOLT, BATTERY CLAMP
74451-95J00

CM36,KM3#,YM3#

 1
74451-95J00

KM36..4H;KM36..MRF..GEN;CM36,KM30,37,YM3#

 1
74417 - BRACKET, BATTERY CARRIER
74417-95704

KM36..4H;KM36..MRF..GEN;CM36,KM30,37,YM3#

 1
74417-95704

CM36,KM3#,YM3#

 1
74417 - BRACKET, BATTERY CARRIER
74417-95704

KM36..4H;KM36..MRF..GEN;CM36,KM30,37,YM3#

 1
74417-95704

CM36,KM3#,YM3#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95703

KM3#,YM3#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95703

KM3#,YM3#

 1
Common parts
90179-06097
91611-60814
91656-40818
