KM36RV-JRBFE (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 67007 67008 67341 67342 67851A
Part # Description Qty Price
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-95723

KM36..V5D;CM36..LHD..02S

ROUGH ROAD PACKAGE

 1
67003-95721

KM36..V5D;CM36..LHD..02S

 1
67008 - PANEL SUB-ASSY, SLIDE DOOR, LH
67004-95749

KM36,YM35..VSP;CM36..RHD..02S

 1
67004-95751

KM36..03S..GEN;CM36..RHD..02S..GEN

ROUGH ROAD PACKAGE

 1
67341 - WEATHERSTRIP, SLIDE DOOR, RH
67871-95702

KM36..V5D;CM36,KM3#..LHD..V4D

 1
67342 - WEATHERSTRIP, SLIDE DOOR, LH
67872-95702

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67851-95701

KM36..V5D

 2

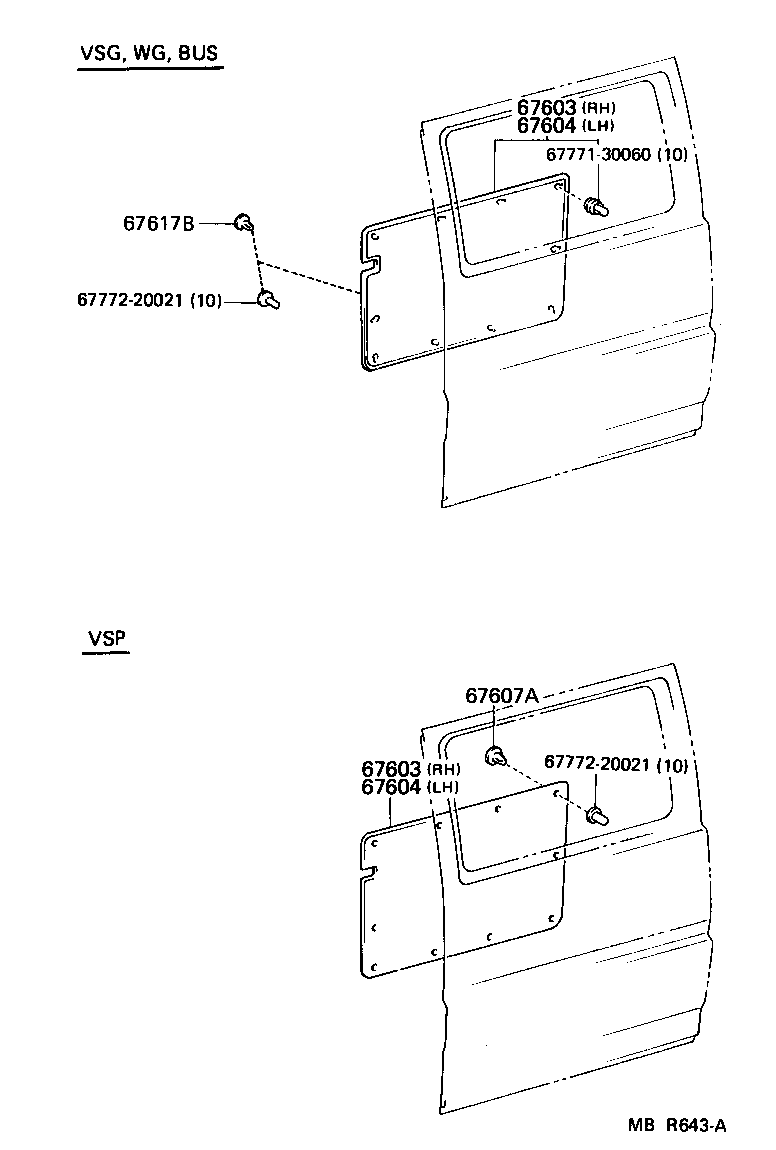

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 67603 67603 67604 67604 67607A 67617B 6777130060 6777220021 6777220021
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67613-95708

KM36..V5D;CM36..LHD..02S

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67613-95708

KM36..V5D;CM36..LHD..02S

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67614-95710

KM36,YM35..VSP;CM36..RHD..02S

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67614-95710

KM36,YM35..VSP;CM36..RHD..02S

 1
67607A - CLIP(FOR SLIDE DOOR TRIM BOARD)
90467-0804013

KM36..V5D

GRAY,TRIM1#

 20
Common parts
67771-30060
67772-20021
