KM36RV-JRBFE (1985)
Toyota Liteace

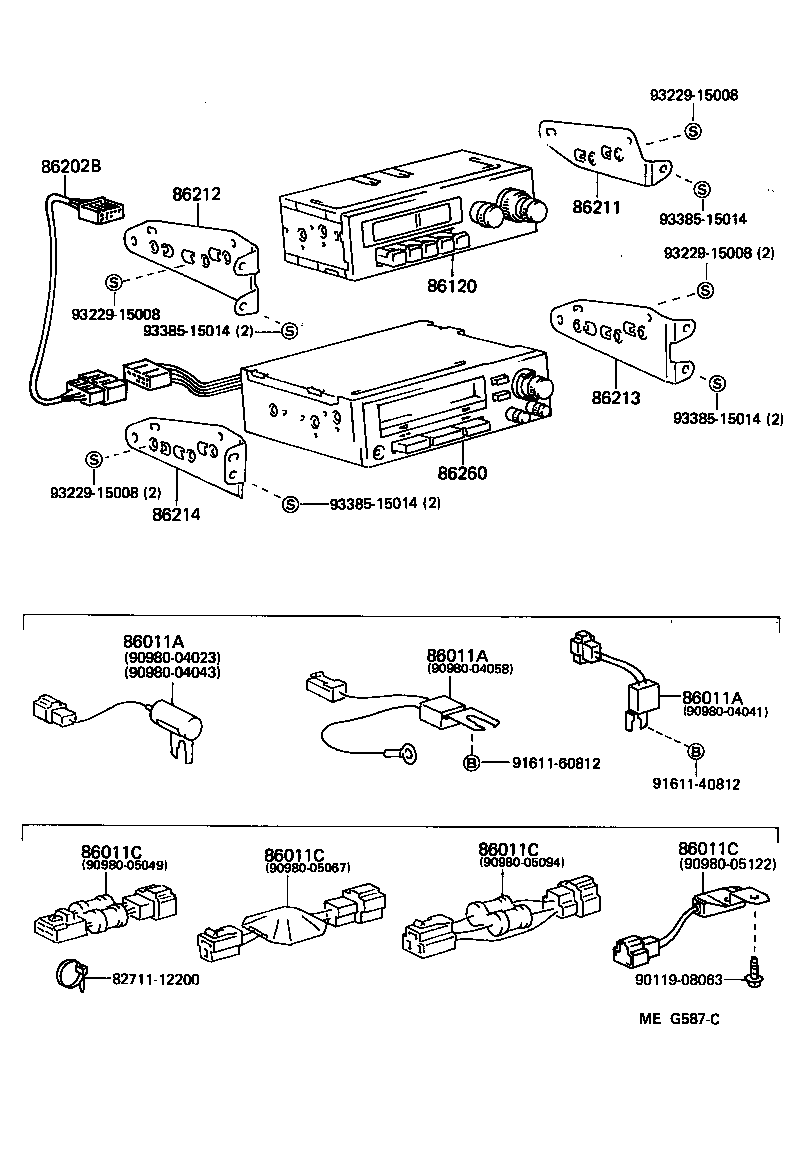

ILLUST NO. 1 OF 2(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04041 |
YM3#,4# |
1 | ||
| 90980-04043 |
KM3# REGULATOR |
1 | ||
| 90980-04058 |
KM3# I.G. COIL |
1 | ||
| 90980-04023 |
KM3# REGULATOR |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04041 |
YM3#,4# |
1 | ||
| 90980-04043 |
KM3# REGULATOR |
1 | ||
| 90980-04058 |
KM3# I.G. COIL |
1 | ||
| 90980-04023 |
KM3# REGULATOR |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04041 |
YM3#,4# |
1 | ||
| 90980-04043 |
KM3# REGULATOR |
1 | ||
| 90980-04058 |
KM3# I.G. COIL |
1 | ||
| 90980-04023 |
KM3# REGULATOR |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
KM36..4H;KM36..DLX;CM35,KM37,YM3#,4# FLASHER |
1 | ||
| 90980-05067 |
CM3#,KM3#,YM30,35,4# STOP LAMP SW |
1 | ||
| 90980-05067 |
KM36..4H;KM36..DLX;CM35,KM37,YM3#,4# STOP LAMP SW |
1 | ||
| 90980-05049 |
KM3#..4H..GEN WIPER MOTOR |
1 | ||
| 90980-05094 |
CM3#,KM3#,YM30,35,4# FLASHER |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
KM36..4H;KM36..DLX;CM35,KM37,YM3#,4# FLASHER |
1 | ||
| 90980-05067 |
CM3#,KM3#,YM30,35,4# STOP LAMP SW |
1 | ||
| 90980-05067 |
KM36..4H;KM36..DLX;CM35,KM37,YM3#,4# STOP LAMP SW |
1 | ||
| 90980-05049 |
KM3#..4H..GEN WIPER MOTOR |
1 | ||
| 90980-05094 |
CM3#,KM3#,YM30,35,4# FLASHER |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
KM36..4H;KM36..DLX;CM35,KM37,YM3#,4# FLASHER |
1 | ||
| 90980-05067 |
CM3#,KM3#,YM30,35,4# STOP LAMP SW |
1 | ||
| 90980-05067 |
KM36..4H;KM36..DLX;CM35,KM37,YM3#,4# STOP LAMP SW |
1 | ||
| 90980-05049 |
KM3#..4H..GEN WIPER MOTOR |
1 | ||
| 90980-05094 |
CM3#,KM3#,YM30,35,4# FLASHER |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
KM36..4H;KM36..DLX;CM35,KM37,YM3#,4# FLASHER |
1 | ||
| 90980-05067 |
CM3#,KM3#,YM30,35,4# STOP LAMP SW |
1 | ||
| 90980-05067 |
KM36..4H;KM36..DLX;CM35,KM37,YM3#,4# STOP LAMP SW |
1 | ||
| 90980-05049 |
KM3#..4H..GEN WIPER MOTOR |
1 | ||
| 90980-05094 |
CM3#,KM3#,YM30,35,4# FLASHER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14421 |
CM35,KM36,YM30,31..GEN AM |
1 | ||
| 86120-16350 |
CM3#,KM3#,YM30..GEN FUJITSU TEN,AM |
1 | ||
| 86120-14431 |
KM36..4H..GEN AM/FM |
1 | ||
| 86120-14392 |
KM36..4H MW/SW |
1 | ||
| 86120-16460 |
KM36..4H..GEN;CM3#,KM37..GEN MATSUSHITA,ID=5108,MW/SW |
1 | ||
| 86120-16470 |
KM3#..4H..GEN FUJITSU TEN,AM/FM |
1 | ||
| 86202B - WIRE, TAPE PLAYER | ||||
| 86203-95715 |
CM3#,KM3#..GEN |
1 | ||
| 86203-95713 |
CM35,KM36..GEN |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86215-95700 |
CM35,KM3#,YM3#,4# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-95704 |
CM35,KM3#,YM3#,4# |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86211-95712 |
CM35,KM36,YM3#,4#..RHD |
1 | ||
| 86214 - BRACKET, RADIO, NO.4 | ||||
| 86212-95705 |
CM35,KM36,YM3#,4#..RHD |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-16140 |
CM3#,KM3#..GEN |
1 | ||
| 86260-19015 |
CM35,KM36..GEN |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08063 | ||||
| 90980-04023 | ||||
| 90980-04041 | ||||
| 90980-04043 | ||||
| 90980-04058 | ||||
| 90980-05049 | ||||
| 90980-05067 | ||||
| 90980-05094 | ||||
| 90980-05122 | ||||
| 91611-40812 | ||||
| 91611-60812 | ||||
| 93229-15008 | ||||
| 93385-15014 | ||||

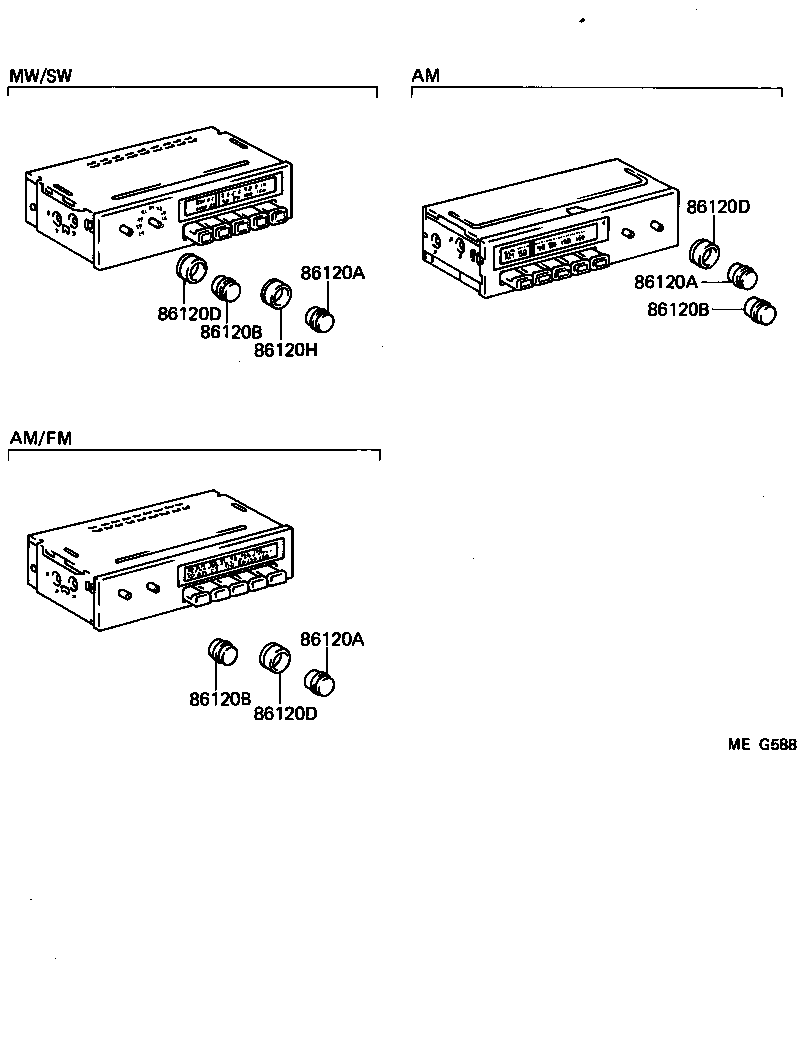

ILLUST NO. 2 OF 2(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-16040 |
CM3#,KM3#,YM30..GEN AM |
1 | ||
| 86128-14580 |
KM36..4H;CM35,YM3#,4# |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-16040 |
CM3#,KM3#,YM30..GEN AM |
1 | ||
| 86128-14580 |
KM36..4H;CM35,YM3#,4# |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-16040 |
CM3#,KM3#,YM30..GEN AM |
1 | ||
| 86128-14580 |
KM36..4H;CM35,YM3#,4# |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86128-16040 |
CM3#,KM3#,YM30..GEN AM |
1 | ||
| 86128-14580 |
KM36..4H;CM35,YM3#,4# |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86128-16040 |
CM3#,KM3#,YM30..GEN AM |
1 | ||
| 86128-14580 |
KM36..4H;CM35,YM3#,4# |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86128-16040 |
CM3#,KM3#,YM30..GEN AM |
1 | ||
| 86128-14580 |
KM36..4H;CM35,YM3#,4# |
1 | ||
| 86120D - KNOB, RADIO RECEIVER TONE | ||||
| 86128-14600 |
KM36..4H;CM35,YM3#,4# |
1 | ||
| 86128-16060 |
CM3#,KM3#,YM30..GEN AM |
1 | ||
| 86120D - KNOB, RADIO RECEIVER TONE | ||||
| 86128-14600 |
KM36..4H;CM35,YM3#,4# |
1 | ||
| 86128-16060 |
CM3#,KM3#,YM30..GEN AM |
1 | ||
| 86120D - KNOB, RADIO RECEIVER TONE | ||||
| 86128-14600 |
KM36..4H;CM35,YM3#,4# |
1 | ||
| 86128-16060 |
CM3#,KM3#,YM30..GEN AM |
1 | ||
| 86120H - KNOB, RADIO RECEIVER SELECT | ||||
| 86128-14700 |
KM36..4H MW/SW |
1 | ||
