Toyota Liteace KM36 HEATING & AIR CONDITIONING - VACUUM PIPING

KM36RV-JRBEQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988

Engine 5KC

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

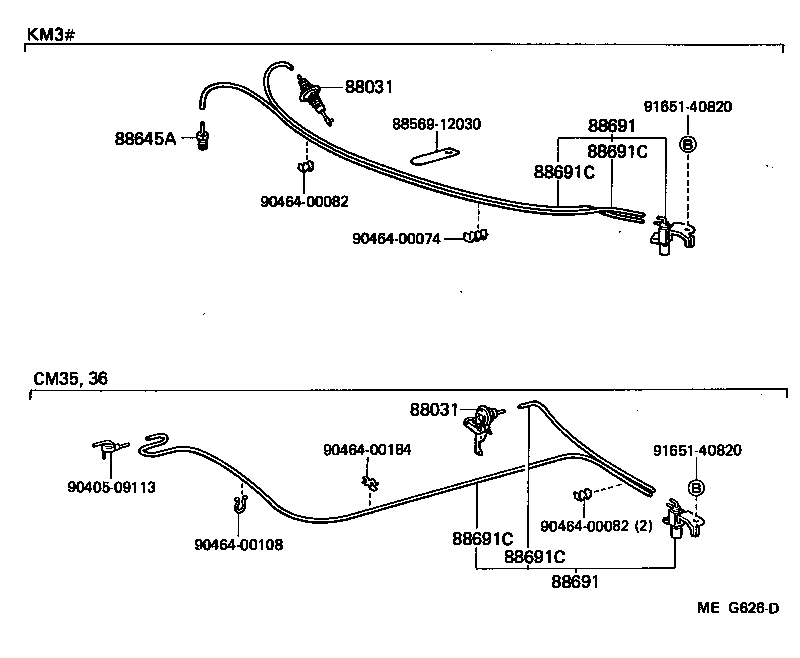

Click highlighted areas on diagram

Part #	Description	Period	Qty
88031 - ACTUATOR SET, IDLE-UP
88031-12081	KM36..ARL	09/1985 - 08/1988	1
88031 - ACTUATOR SET, IDLE-UP
88031-12081	KM36..ARL	09/1985 - 08/1988	1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51010	KM3#	09/1985 - 08/1988	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95737	YM30,4#..ARL *CIU	09/1985 - 08/1988	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95737	YM30,4#..ARL *CIU	09/1985 - 08/1988	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	YM30,4#..ARL L=300,MARK=#0,*CIU	09/1985 - 12/1987	1
95411-19930	YM30,4#..ARL H,L=300,MARK=#,*CIU	09/1985 - 12/1987	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	YM30,4#..ARL L=300,MARK=#0,*CIU	09/1985 - 12/1987	1
95411-19930	YM30,4#..ARL H,L=300,MARK=#,*CIU	09/1985 - 12/1987	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	YM30,4#..ARL L=300,MARK=#0,*CIU	09/1985 - 12/1987	1
95411-19930	YM30,4#..ARL H,L=300,MARK=#,*CIU	09/1985 - 12/1987	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	YM30,4#..ARL L=300,MARK=#0,*CIU	09/1985 - 12/1987	1
95411-19930	YM30,4#..ARL H,L=300,MARK=#,*CIU	09/1985 - 12/1987	1
Common parts
88569-12030
90405-09113
90464-00074
90464-00082
90464-00108
90464-00184
91651-40820

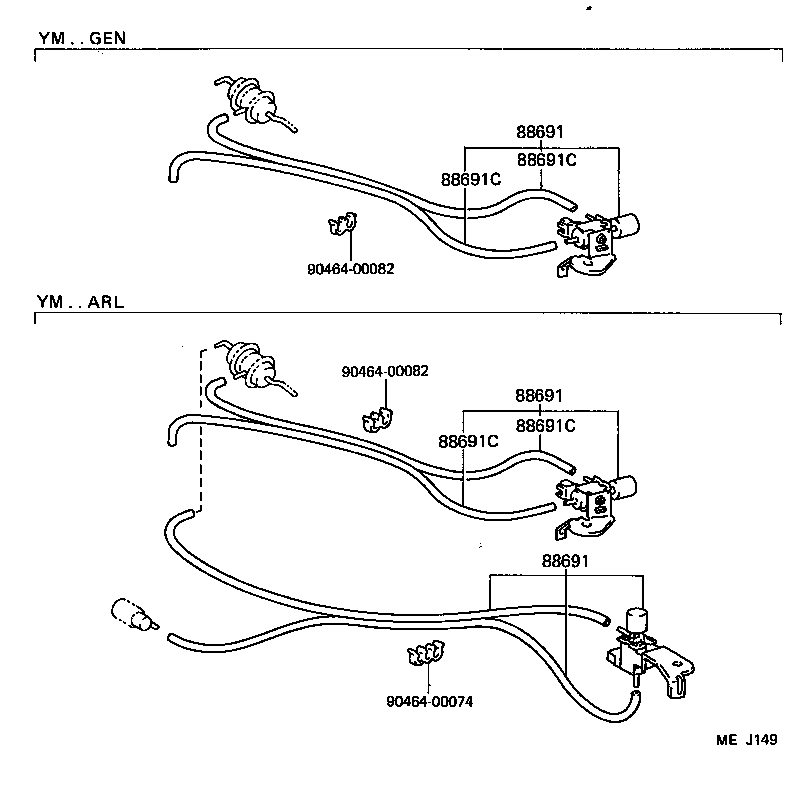

Click highlighted areas on diagram

Part #	Description	Period	Qty
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95737	YM30,4#..ARL *CIU	09/1985 - 08/1988	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95737	YM30,4#..ARL *CIU	09/1985 - 08/1988	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95737	YM30,4#..ARL *CIU	09/1985 - 08/1988	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	YM30,4#..ARL L=300,MARK=#0,*CIU	09/1985 - 12/1987	1
95411-19930	YM30,4#..ARL H,L=300,MARK=#,*CIU	09/1985 - 12/1987	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	YM30,4#..ARL L=300,MARK=#0,*CIU	09/1985 - 12/1987	1
95411-19930	YM30,4#..ARL H,L=300,MARK=#,*CIU	09/1985 - 12/1987	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	YM30,4#..ARL L=300,MARK=#0,*CIU	09/1985 - 12/1987	1
95411-19930	YM30,4#..ARL H,L=300,MARK=#,*CIU	09/1985 - 12/1987	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	YM30,4#..ARL L=300,MARK=#0,*CIU	09/1985 - 12/1987	1
95411-19930	YM30,4#..ARL H,L=300,MARK=#,*CIU	09/1985 - 12/1987	1
Common parts
90464-00074
90464-00082
90464-00882
