KM36RV-JRBEQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )CM3#,KM36,YM31,35,41..RHD

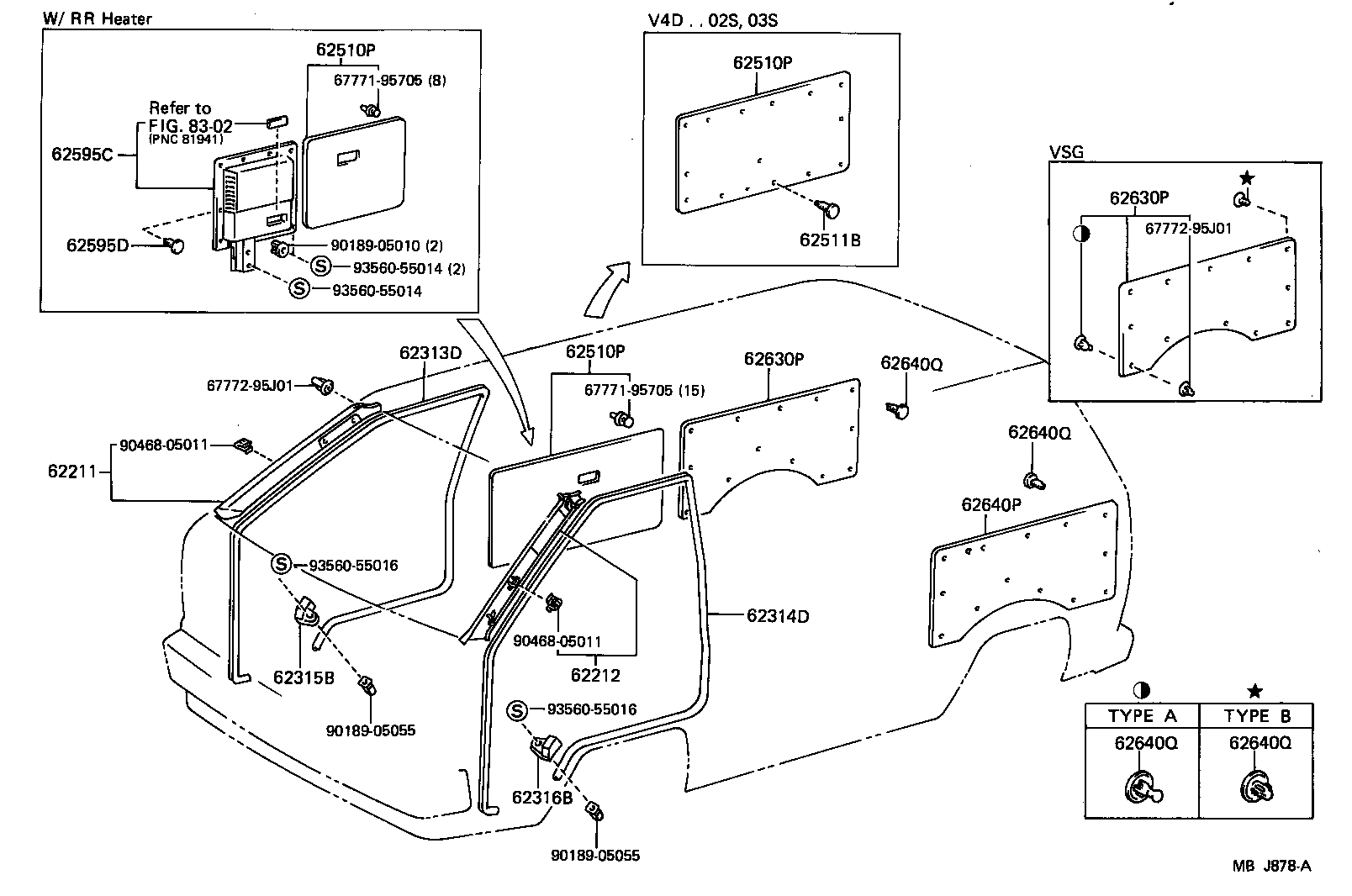

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62315B 62316B 62510P 62510P 62510P 62511B 62595C 62595D 62630P 62630P 62640P 62640Q 62640Q 62640Q 62640Q 6777195705 6777195705 6777295J01 6777295J01 8302 9018905010 9018905055 9018905055 9046805011 9046805011 9356055014 9356055014 9356055016 9356055016
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-9570605

CM35,KM3#,YM3#,4#

BEIGE,BEIGE

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-9570705

CM3#,KM3#,YM3#,4#

BEIGE,BEIGE

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9571006

CM3#,KM3#,YM3#,4#

BROWN,BROWN

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9571006

CM3#,KM3#,YM3#,4#

BROWN,BROWN

 1
62315B - COVER, FRONT DOOR OPENING TRIM, RH
62317-9570006

CM3#,KM3#,YM3#,4#

BROWN,BROWN

 1
62316B - COVER, FRONT DOOR OPENING TRIM, LH
62318-9570006

CM3#,KM3#,YM3#,4#

BROWN,BROWN

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62511-95707

CM35,KM36,YM35..RHD..V4D..VSP

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62511-95707

CM35,KM36,YM35..RHD..V4D..VSP

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62511-95707

CM35,KM36,YM35..RHD..V4D..VSP

 1
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-1007106

CM35,KM36,YM35..RHD..V4D..VSP

BROWN,BROWN

 15
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95702

CM35,KM36,YM35..RHD..V4D..VSP

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95702

CM35,KM36,YM35..RHD..V4D..VSP

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95704

CM35,KM36,YM35,41..ARL

 1
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-1007106

KM36,YM35..VSP;CM35..RHD..02S

BROWN,BROWN

 26
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-1007106

KM36,YM35..VSP;CM35..RHD..02S

BROWN,BROWN

 26
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-1007106

KM36,YM35..VSP;CM35..RHD..02S

BROWN,BROWN

 26
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-1007106

KM36,YM35..VSP;CM35..RHD..02S

BROWN,BROWN

 26
Common parts
67771-95705
67772-95J01
90189-05010
90189-05055
90468-05011
93560-55014
93560-55016
Linked diagrams
8302
