KM36RV-JRBEQ (1985)
Toyota Liteace
(8509- )5K#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21061 - VALVE SUB-ASSY, THERMOSTATIC | ||||
| 21061-13420 |
5K#..KM3# |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-13610 |
5K..KM3# |
1 | ||
| 21112-13690 |
5KC..KM36 |
1 | ||
| 21112-13590 |
5KC..KM36 |
1 | ||
| 21192 - BREAKER | ||||
| 21192-13590 |
5KC..KM36 |
1 | ||
| 21192-13100 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 21192-13670 |
5KC..KM36 |
1 | ||
| 21192-13100 |
5KC..KM36 ADR 36 SPEC |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-24510 |
5KC..KM36 ADR 36 SPEC |
1 | ||
| 21205-12070 |
5KC..KM36 |
1 | ||
| 21205-13570 |
5K..KM3# |
1 | ||
| 21205-13140 |
5KC..KM36 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-13310 |
5K#..KM3# |
1 | ||
| 21232 - TUBE | ||||
| 21232-13050 |
5KC..KM36 ADR 36 SPEC |
1 | ||
| 21232-13050 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-13031 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 21234-61020 |
5KC..KM36 ADR 36 SPEC |
1 | ||
| 21234-13031 |
5KC..KM36 ADR 36 SPEC |
1 | ||
| 21235 - PIPE OR HOSE, CONNECTING | ||||
| 21235-13031 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 21235-13211 |
5K#..KM3# |
1 | ||
| 21235-13031 |
5KC..KM36 ADR 36 SPEC |
1 | ||
| 21235A - PIPE OR HOSE, CONNECTING | ||||
| 21249-13031 |
5K#..KM3# |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41101 |
5KC..KM36 ADR 36 SPEC |
1 | ||
| 90999-41106 |
5K..KM3# |
1 | ||
| 90999-41106 |
5K..KM3# |
1 | ||
| 90999-41103 |
5KC..KM36 |
1 | ||
| 90999-41106 |
5KC..KM36 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42153 |
5KC..KM36 ADR 36 SPEC |
1 | ||
| 90999-42150 |
5K#..KM3# |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43044 |
5KC..KM36 |
1 | ||
| 90999-43055 |
5K..KM3# |
1 | ||
| 90999-43050 |
5KC..KM36 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-24390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 21271-13210 |
5KC..KM36 |
1 | ||
| 21271-13270 |
5KC..KM36 |
1 | ||
| 21271-24100 |
5K..KM3# |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-51010 |
5K#..KM3# |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-13390 |
5K#..KM3# |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21275-24360 |
5KC..KM36 |
1 | ||
| 21275-24360 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-13310 |
5K#..KM3# |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
5K#..KM3# |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
5K#..KM3# |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
5KC..KM36 |
1 | ||
| 21341-24030 |
5K..KM3# |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-24230 |
5KC..KM36 |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-13450 |
5K..KM3# |
1 | ||
| 21353-13590 |
5KC..KM36 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-13570 |
5K#..KM3# |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
5K#..KM3# |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-22010 |
5K#..KM3# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
5K#..KM3# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
5K#..KM3# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-24360 |
5K#..KM3# 2ND |
1 | ||
| 21614-22010 |
5K#..KM3# 1ST |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-24360 |
5K#..KM3# 2ND |
1 | ||
| 21614-22010 |
5K#..KM3# 1ST |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
5K#..KM3# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
5K#..KM3# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
5K#..KM3# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
5KC..KM36 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-24360 |
5K#..KM3# |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-13080 |
5K#..KM3# |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-13570 |
5K#..KM3# |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-13620 |
5KC..KM36 ADR 36 SPEC |
1 | ||
| 21679-13570 |
5KC..KM36 |
1 | ||
| 21679-13570 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 21697 - BOOT(FOR SLIDING ROD) | ||||
| 21699-41010 |
5KC..KM36 |
1 | ||
| 21699-41010 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
5K#..KM3# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
5K#..KM3# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
5K#..KM3# |
1 | ||
| 21723-21030 |
5K#..KM3# |
1 | ||
| 21723-21030 |
5K..KM3# |
1 | ||
| 21723-15160 |
5KC..KM36 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21864-24230 |
5K#..KM3# |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
5K#..KM3# |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21864-24010 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 21864-24010 |
5KC..KM36 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-13440 |
5KC..KM36 |
1 | ||
| 21734-33081 |
5K..KM3# |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-23010 |
5K#..KM3# |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24034 |
5KC..KM36 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 90507-10003 |
5K#..KM3# |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
5K#..KM3# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
5K#..KM3# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
5K#..KM3# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
5K#..KM3# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
5K#..KM3# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
5K#..KM3# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
5K#..KM3# |
6 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
5K#..KM3# |
1 | ||
| 21828 - SCREW, 1ST IDLE SET | ||||
| 21828-13310 |
5K#..KM3# |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
5K#..KM3# |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
5K#..KM3# |
1 | ||
| 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) | ||||
| 21835-40010 |
5K#..KM3# |
1 | ||
| 21844 - SCREW, CHOKE LEVER | ||||
| 21844-24230 |
5K#..KM3# |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
5K#..KM3# |
1 | ||
| 21865 - SPRING | ||||
| 21864-13080 |
5K#..KM3# |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
5K#..KM3# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-13570 |
5K#..KM3# |
1 | ||
| 21062-13670 |
5K#..KM3# |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
5K#..KM3# |
1 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
5K#..KM3# |
1 | ||
| Common parts | ||||
| 21791-13010 | ||||
| 21821-13080 | ||||
| 21821-15010 | ||||
| 21821-31140 | ||||
| 21821-34370 | ||||
| 21821-34380 | ||||
| 21873-21010 | ||||
| 90925-04006 | ||||
| 90999-92002 | ||||
| 93289-15018 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||

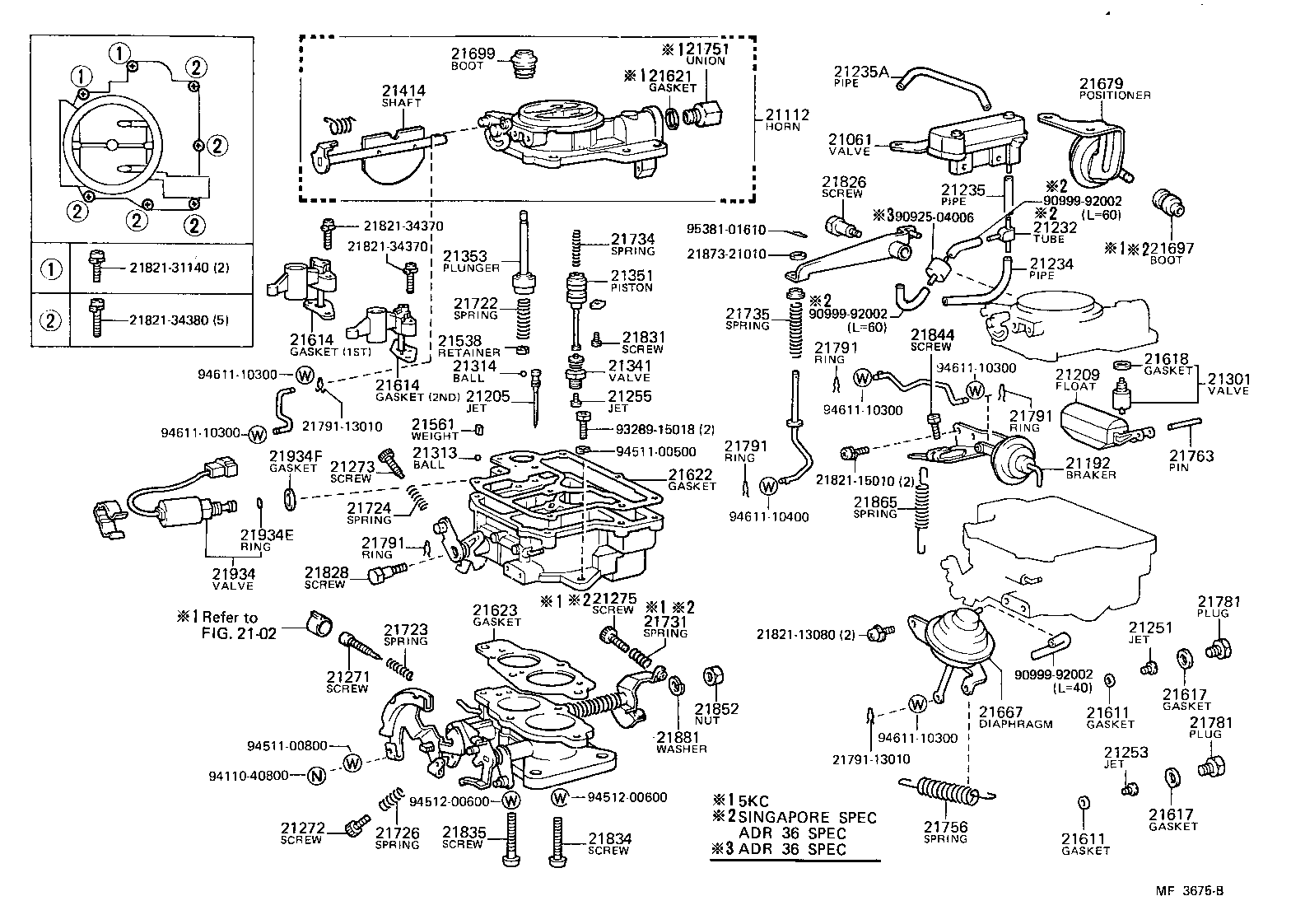

| Linked diagrams | ||||
| 2102 | ||||
