KM36RV-JRBEQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )5K#

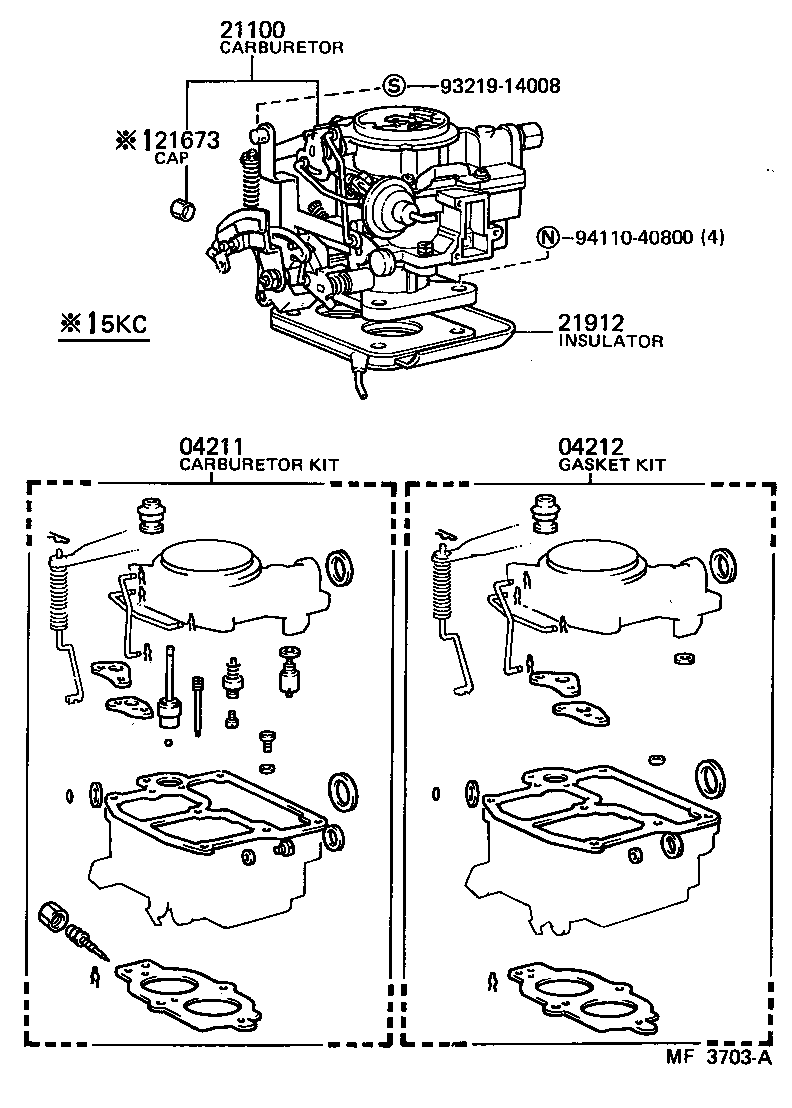

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9321914008 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-13360

5K..KM36..RHD..4H

SINGAPORE SPEC

 1
04211-13380

5KC..KM36

 1
04211-13390

5K..KM3#

 1
04211-13400

5KC..KM36

ADR 36 SPEC

 1
04212 - GASKET KIT, CARBURETOR
04212-13070

5K#..KM3#

 1
21100 - CARBURETOR ASSY
21100-13590

5KC..KM36

 1
21100-13620

5KC..KM36

ADR 36 SPEC

 1
21100-13610

5K..KM36..RHD..4H

SINGAPORE SPEC

 1
21100-13600

5K..KM3#

 1
21100-13690

5KC..KM36

 1
21673 - CAP, IDLE LIMIT
21673-13280

5KC..KM36

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-13031

5KC..KM36

 1
21912-13051

5KC..KM36

 1
21912-13051

5K..KM3#

 1
Common parts
93219-14008
94110-40800
