KM36RV-JRBEQ (1985)
Toyota Liteace

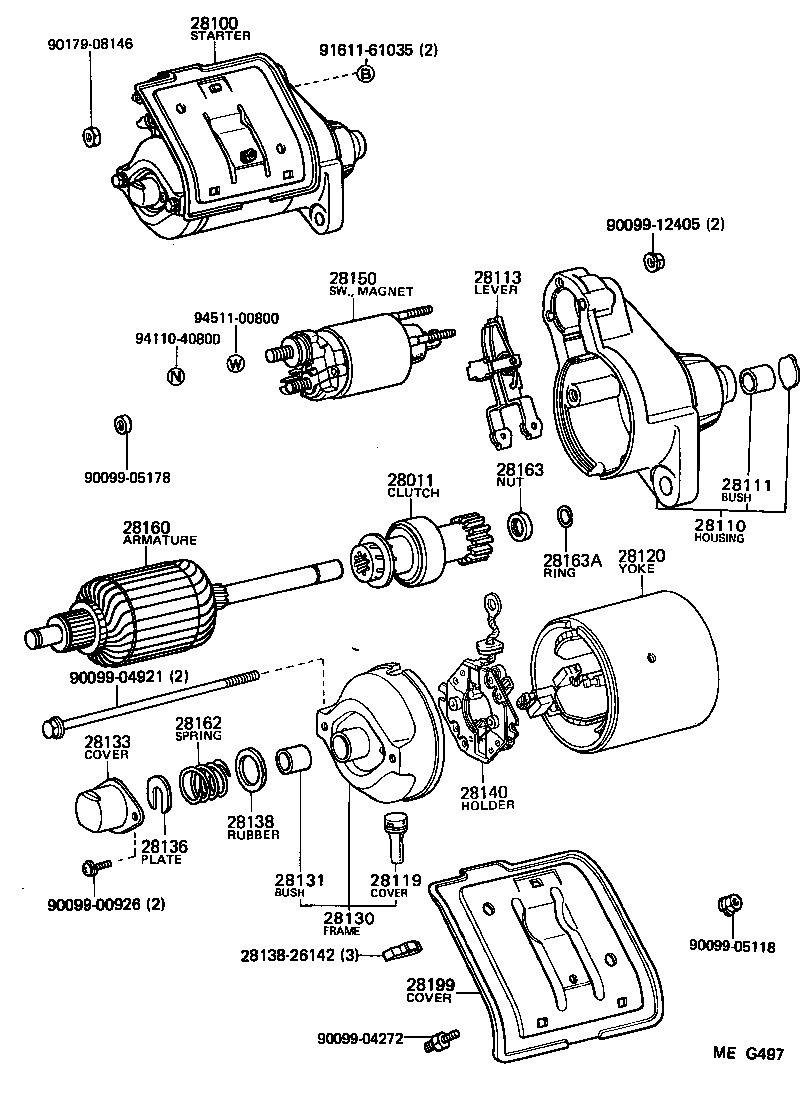

(8509- )5K
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28011-26042 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-13010 |
5KC..KM36 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-13020 |
5K..KM3# 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-13010 |
5KC..KM36 12V 1.0KW |
1 | ||
| 28110-13020 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW |
1 | ||
| 28120-26140 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-13020 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28130-13010 |
5KC..KM36 12V 1.0KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10134 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28140-26070 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-13011 |
5KC..KM36 12V 1.0KW |
1 | ||
| 28150-37010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28160-26070 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
5K..KM3# 12V 0.8KW |
2 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-15110 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28199-13011 |
5KC..KM36 12V 1.0KW |
1 | ||
| Common parts | ||||
| 28138-26142 | ||||
| 90099-00926 | ||||
| 90099-04272 | ||||
| 90099-04921 | ||||
| 90099-05118 | ||||
| 90099-05178 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8509- )5KC
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28011-26042 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-13010 |
5KC..KM36 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-13020 |
5K..KM3# 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-13010 |
5KC..KM36 12V 1.0KW |
1 | ||
| 28110-13020 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW |
1 | ||
| 28120-26140 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-13020 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28130-13010 |
5KC..KM36 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28140-26070 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1C,2C,5KC,2Y#,3YC..CM3#,KM36,YM3#,4# 12V 1.0KW,1.4KW |
2 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-13011 |
5KC..KM36 12V 1.0KW |
1 | ||
| 28150-37010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15010 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28160-26070 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW,NO.2 |
1 | ||
| 28253-45020 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW,NO.2 |
1 | ||
| 28253-45020 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1C,2C,5KC,2Y#,3YC..CM3#,KM36,YM3#,4# 12V 1.0KW,1.4KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-15110 |
5K..KM3# 12V 0.8KW |
1 | ||
| 28199-13011 |
5KC..KM36 12V 1.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
1C,2C,5KC,2Y#,3YC..CM3#,KM36,YM3#,4# 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1C,2C,5KC,2Y#,3YC..CM3#,KM36,YM3#,4# 12V 1.0KW,1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
5KC,2Y#,3YC..KM36,YM3#,4# 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61035 | ||||
| 93385-16014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

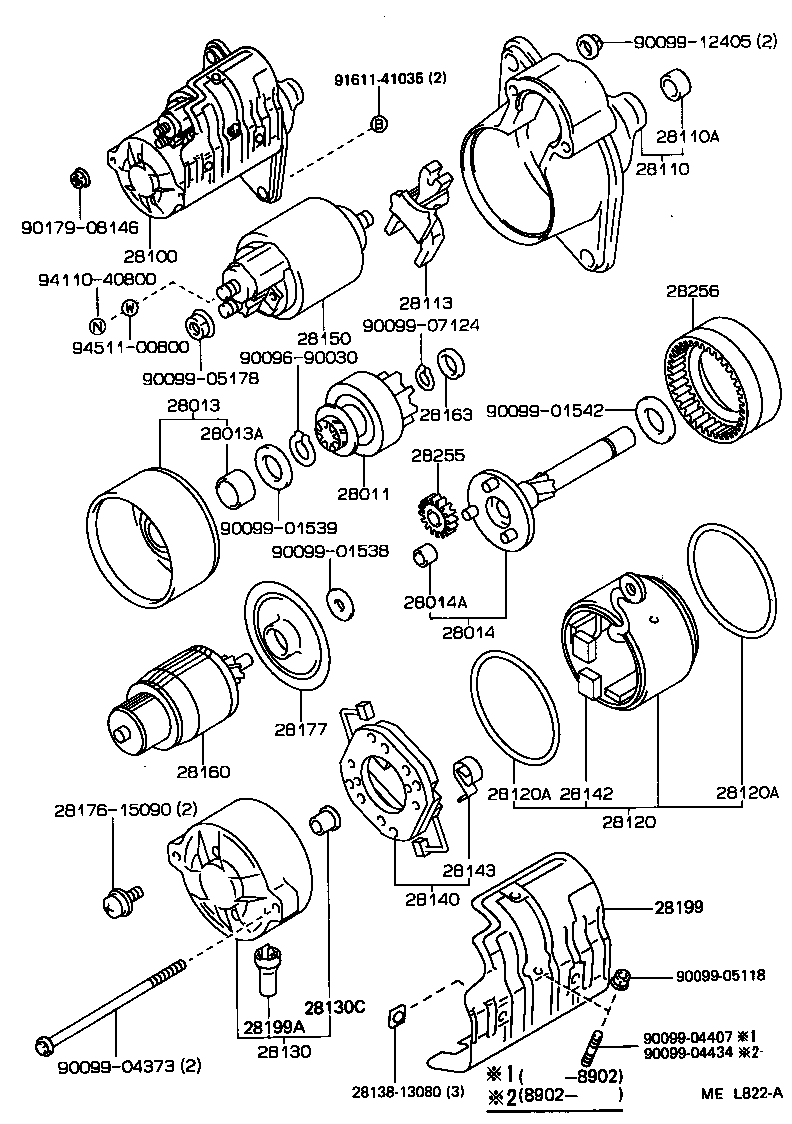

(8808-9201)5KC
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28138-13080 | ||||
| 28176-15090 | ||||
| 90096-90030 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04373 | ||||
| 90099-04407 | ||||
| 90099-04434 | ||||
| 90099-05118 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 91611-41035 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
