KM36RV-JRBEQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

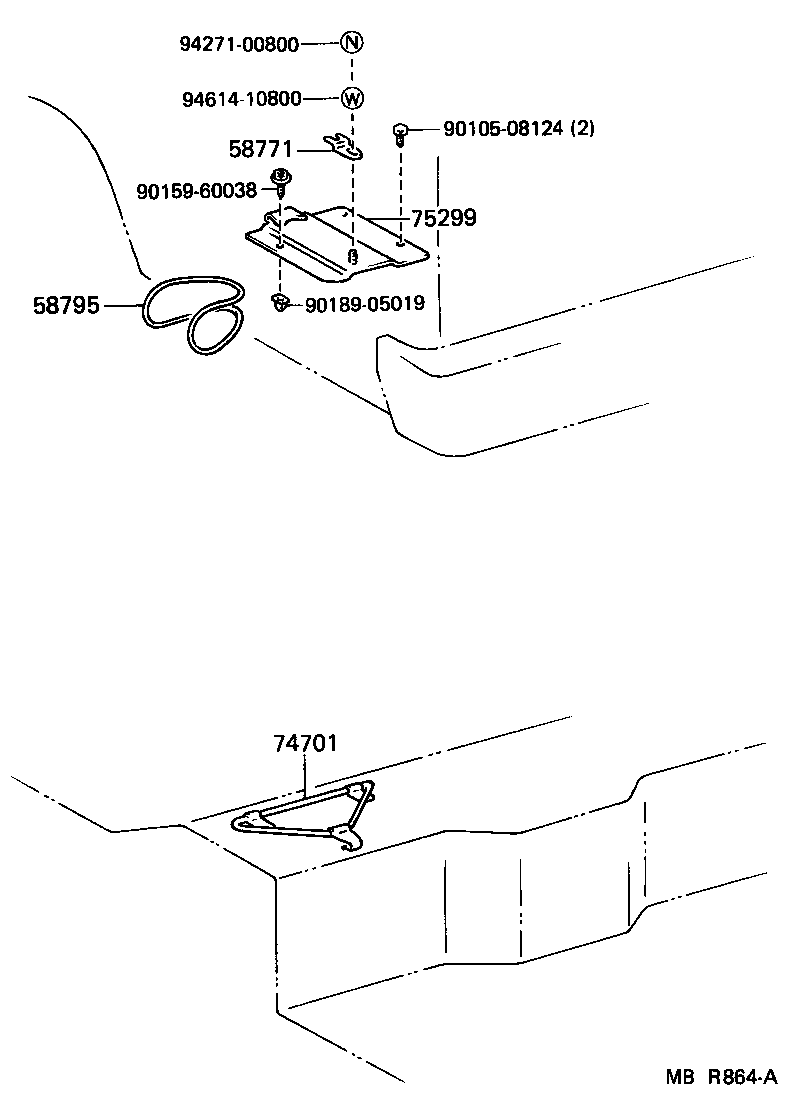

Click highlighted areas on diagram

diagram 58771 58795 74701 75299 9010508124 9015960038 9018905019 9427100800 9461410800
Part # Description Qty Price
58771 - CLAMP, JACK, NO.1
75298-95700

KM30,37,YM30;CM36,KM36..LHD;CM36,KM36,YM35..ARL

 1
58795 - BAND, JACK CLAMP, NO.1
58795-20011

CM36,KM36..LHD;CM36,KM36,YM35..ARL

 1
75299 - BASE, JACK HOLDER
75299-95700

CM36..MRF;KM36..ARL;CM36,KM36..LHD..SRF;KM37,YM3#..02S,08S,09S

 1
Common parts
90105-08124
90159-60038
90189-05019
94271-00800
94614-10800
