KM36RV-JRBEQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

diagram 52011A 52012A 52111E 52147B 9010908160 9010908160 9010908169 9017906157 9017908167 9017908167 9165540818 9165560825 9166560825
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-95701

CM36,KM3#,YM3#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-95701

CM36,KM3#,YM3#

 1
52111E - BAR, FRONT BUMPER
52111-95715

CM36,KM3#,YM3#

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-95702

CM36,KM3#,YM3#

 1
Common parts
90109-08160
90109-08169
90179-06157
90179-08167
91655-40818
91655-60825
91665-60825

(9107- )

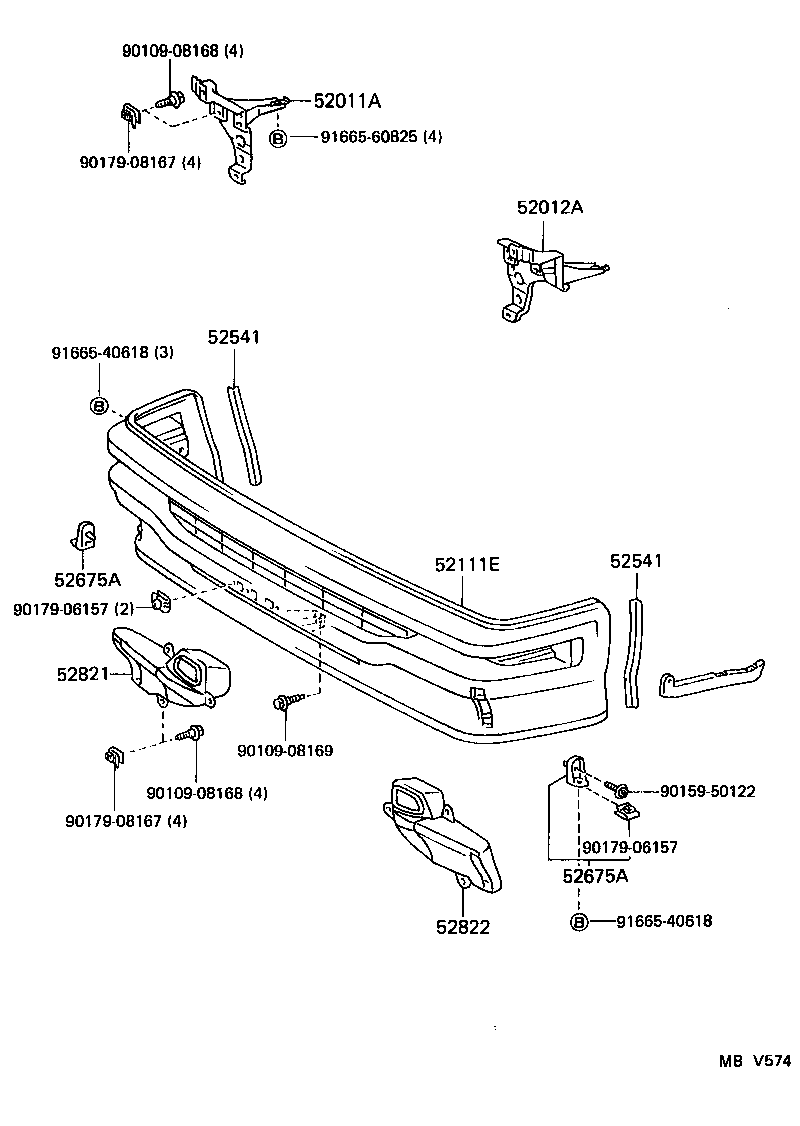

Click highlighted areas on diagram

MALAYSIA SPEC

diagram 52011A 52012A 52111E 52541 52541 52675A 52675A 52821 52822 9010908168 9010908168 9010908169 9015950122 9017906157 9017906157 9017908167 9017908167 9166540618 9166540618 9166560825
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-95701

CM36,KM3#,YM3#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-95701

CM36,KM3#,YM3#

 1
52111E - BAR, FRONT BUMPER
52111-95715

CM36,KM3#,YM3#

 1
Common parts
90109-08168
90109-08169
90159-50122
90179-06157
90179-08167
91665-40618
91665-60825
