KM36RV-JRBEQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

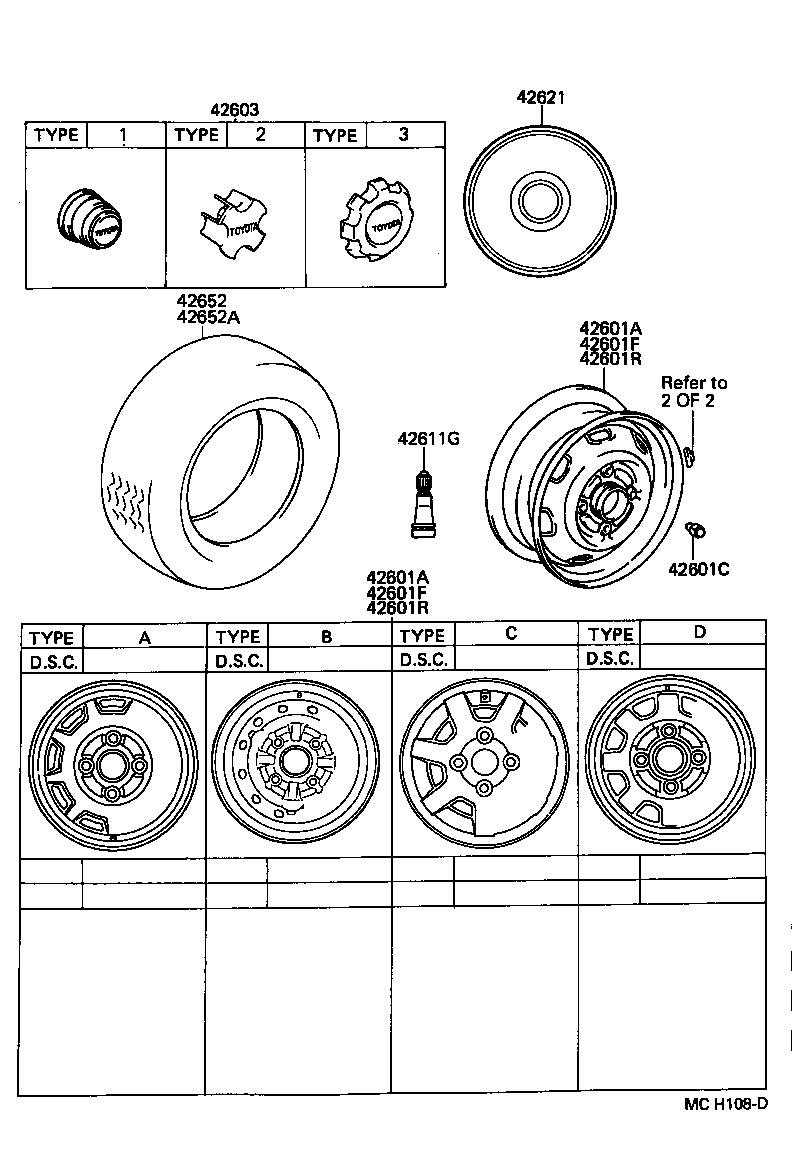

Click highlighted areas on diagram

diagram 42601A 42601A 42601C 42601F 42601F 42601R 42601R 42603 42611G 42621 42652 42652A
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42611-2221103

YM35;CM36,KM36,YM30..ARL

14X5J,TYPE B,SILVER

 1
42601A - WHEEL, DISC (FOR SPARE)
42611-2221103

YM35;CM36,KM36,YM30..ARL

14X5J,TYPE B,SILVER

 1
42601C - NUT, HUB (FOR AXLE)
90942-01059

CM36,KM36,37,YM35

 16
42601F - WHEEL, DISC (FOR FRONT)
42611-2221103

YM35;CM36,KM36,YM30..ARL

14X5J,TYPE B,SILVER

 2
42601F - WHEEL, DISC (FOR FRONT)
42611-2221103

YM35;CM36,KM36,YM30..ARL

14X5J,TYPE B,SILVER

 2
42601R - WHEEL, DISC (FOR REAR)
42611-2221103

YM35;CM36,KM36,YM30..ARL

14X5J,TYPE B,SILVER

 2
42601R - WHEEL, DISC (FOR REAR)
42611-2221103

YM35;CM36,KM36,YM30..ARL

14X5J,TYPE B,SILVER

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-27060

YM35;CM36,KM36..ARL

*STE,TYPE 1

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

KM36..RHD..VSG;KM36..03S..ARL;CM36,KM30,37,YM3#..MRF..(4FC,4H,5F)

 5
90942-05009

KM3#,YM3#;CM36..02S;CM36..4F..05S;CM36..MRF..GEN

 5
90942-05009

KM36..RHD..VSG;CM36,KM36,YM3#..(02S,03S,08S)..ARL

 5
42652 - TIRE
42652-27090

YM35;CM36,KM36,YM30..ARL

165R14C 6PR

 4
42652A - TIRE (FOR SPARE)
42652-27090

YM35;CM36,KM36,YM30..ARL

165R14C 6PR

 1

(8808- )

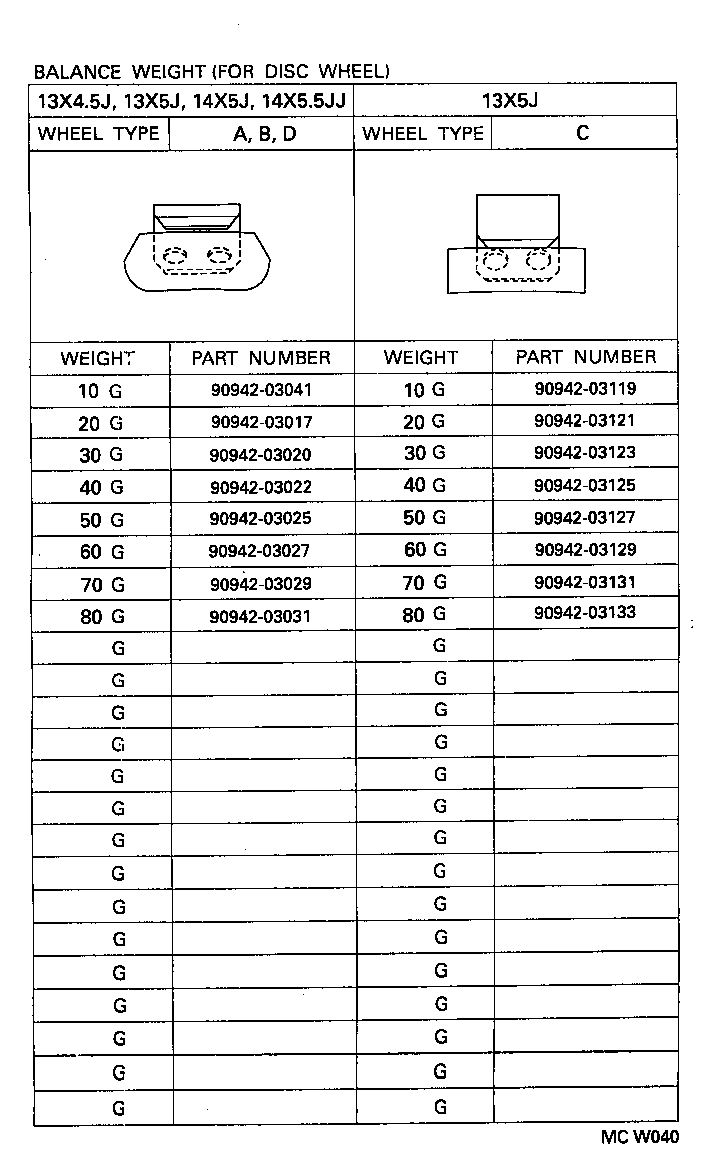

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203029 9094203031 9094203041 9094203119 9094203121 9094203123 9094203125 9094203127 9094203129 9094203131 9094203133
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03119
90942-03121
90942-03123
90942-03125
90942-03127
90942-03129
90942-03131
90942-03133
