KM36RV-JRBEQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5KC

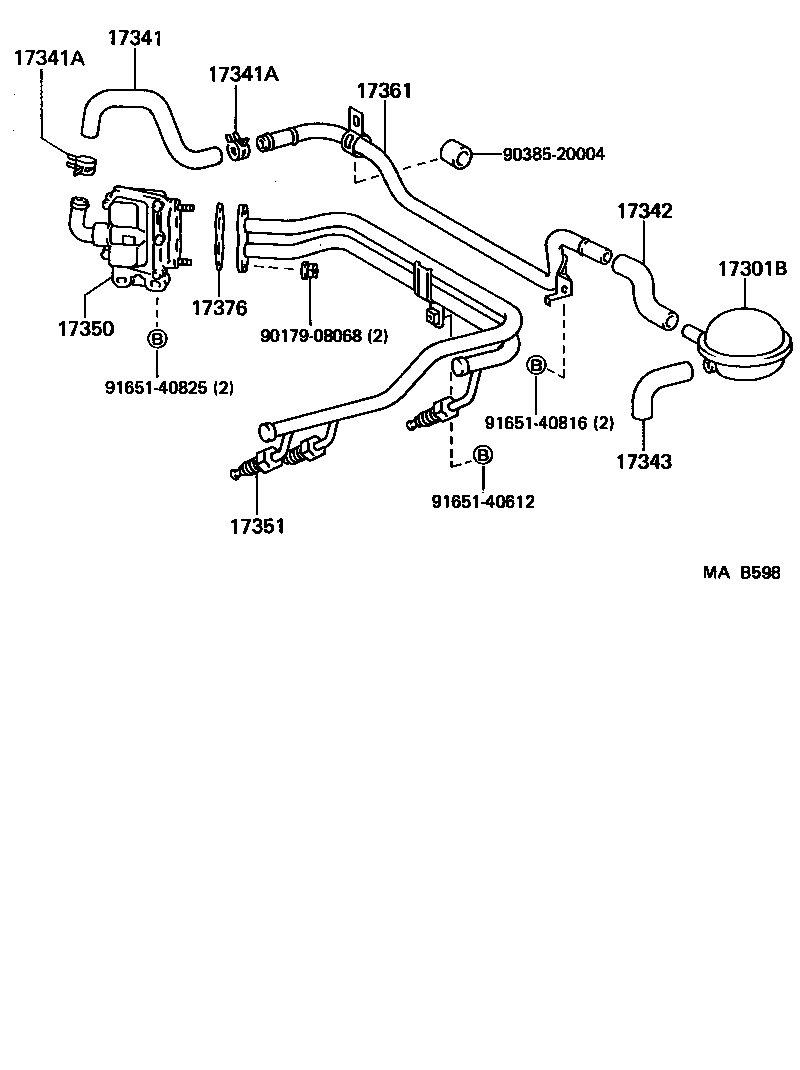

Click highlighted areas on diagram

diagram 17301B 17341 17341A 17341A 17342 17343 17350 17351 17361 17376 9017908068 9038520004 9165140612 9165140816 9165140825
Part # Description Qty Price
17301B - SILENCER SUB-ASSY, AIR SUCTION
17301-13020

5KC..KM36

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-13050

5KC..KM36

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26001

5KC..KM36

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26001

5KC..KM36

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-13020

5KC..KM36

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-13020

5KC..KM36

 1
17350 - VALVE ASSY, REED
17350-13080

5KC..KM36

 1
17351 - MANIFOLD, AIR INJECTION
17306-13050

5KC..KM36

 1
17361 - TUBE, AIR
17361-13050

5KC..KM36

 1
17376 - GASKET, AIR TUBE, NO.1
17376-71010

5KC..KM36

 1
17376-71011

5KC..KM36

 1
Common parts
90179-08068
90385-20004
91651-40612
91651-40816
91651-40825
