KM36RV-JRBE (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM36,KM36,37,YM31,35

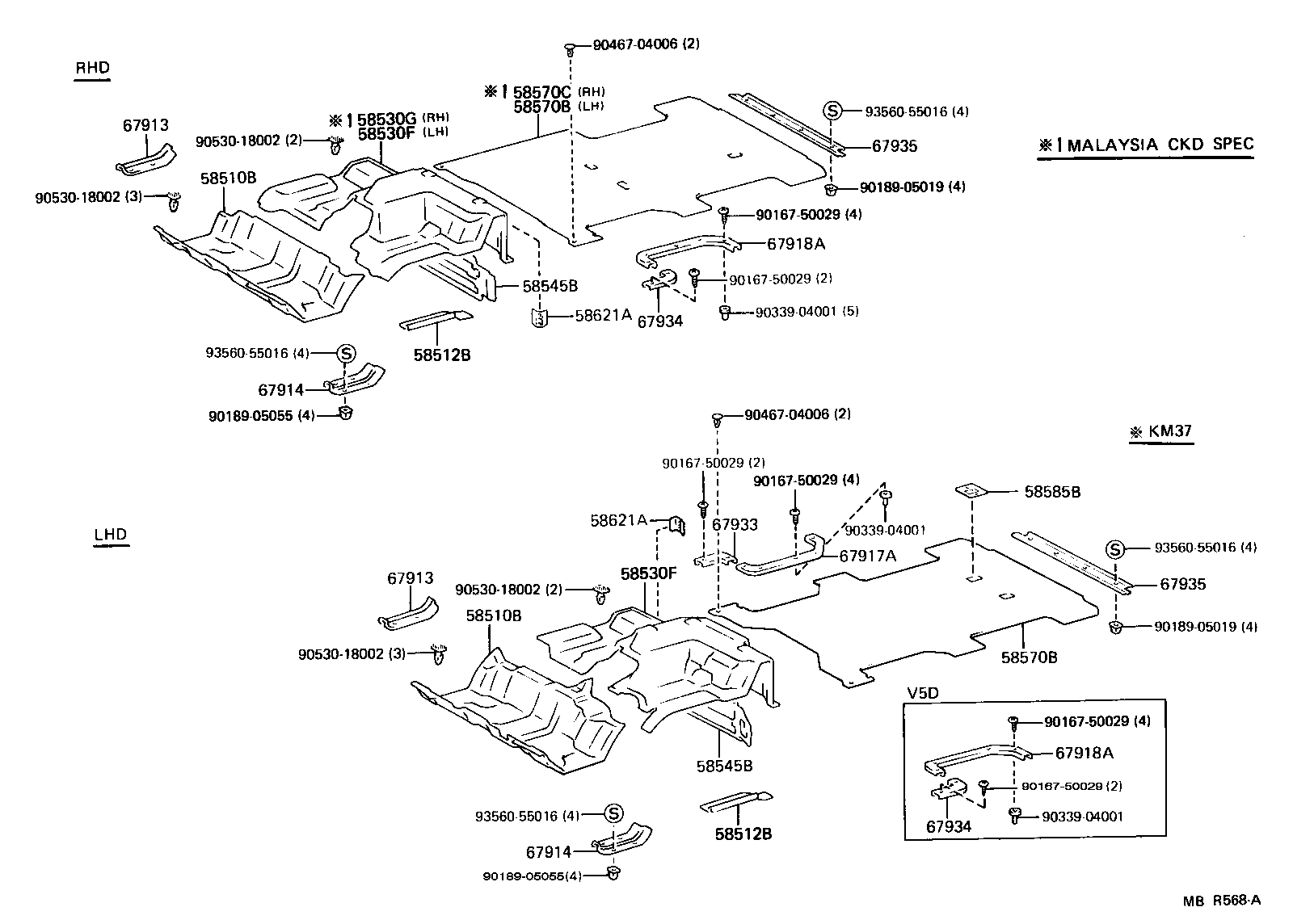

Click highlighted areas on diagram

diagram 58510B 58510B 58512B 58512B 58530F 58530F 58530G 58545B 58545B 58570B 58570B 58570C 58585B 58621A 58621A 67913 67913 67914 67914 67917A 67918A 67918A 67933 67934 67934 67935 67935 9016750029 9016750029 9016750029 9016750029 9016750029 9016750029 9018905019 9018905019 9018905055 9018905055 9033904001 9033904001 9033904001 9046704006 9046704006 9053018002 9053018002 9053018002 9053018002 9356055016 9356055016 9356055016 9356055016
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-9570603

KM36..RHD..4H

GRAY,TRIM1#

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-9570603

KM36..RHD..4H

GRAY,TRIM1#

 1
58512B - MAT, FLOOR, FRONT LH
58512-9570303

CM36,KM36,37,YM3#

GRAY,TRIM1#

 1
58512B - MAT, FLOOR, FRONT LH
58512-9570303

CM36,KM36,37,YM3#

GRAY,TRIM1#

 1
58530F - MAT ASSY, HEADER
58530-95G3503

KM36..RHD..4H..GEN

GRAY,TRIM1#

 1
58530F - MAT ASSY, HEADER
58530-95G3503

KM36..RHD..4H..GEN

GRAY,TRIM1#

 1
58545B - SILENCER, HEADER PANEL
58545-95714

KM36..RHD

 1
58545B - SILENCER, HEADER PANEL
58545-95714

KM36..RHD

 1
58570B - MAT ASSY, REAR FLOOR
58570-9572803

KM36..V4D..03S..GEN

GRAY,TRIM1#

 1
58570B - MAT ASSY, REAR FLOOR
58570-9572803

KM36..V4D..03S..GEN

GRAY,TRIM1#

 1
58621A - PLATE, MAT SET, NO.1 LH
58621-95706

CM36,KM3#,YM3#..V4D

 1
58621A - PLATE, MAT SET, NO.1 LH
58621-95706

CM36,KM3#,YM3#..V4D

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-9570213

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-9570213

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-9570213

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-9570213

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-95700

KM36..03S,05S;KM36..RHD..06S;CM36,YM31,35..RHD

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-95700

KM36..03S,05S;KM36..RHD..06S;CM36,YM31,35..RHD

 1
67934 - PLATE, QUARTER SCUFF, INSIDE LH
67934-9570003

KM36..03S,05S;KM36..RHD..06S;CM36,YM31,35..RHD

GRAY,TRIM1#

 1
67934 - PLATE, QUARTER SCUFF, INSIDE LH
67934-9570003

KM36..03S,05S;KM36..RHD..06S;CM36,YM31,35..RHD

GRAY,TRIM1#

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95703

CM36,KM36,37,YM31,35

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95703

CM36,KM36,37,YM31,35

 1
Common parts
90167-50029
90189-05019
90189-05055
90339-04001
90467-04006
90530-18002
93560-55016
