KM36RV-JRBE (1985)
Toyota Liteace
Production
Sep 1985
-
Aug 1988
Engine
5K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8509- )5K

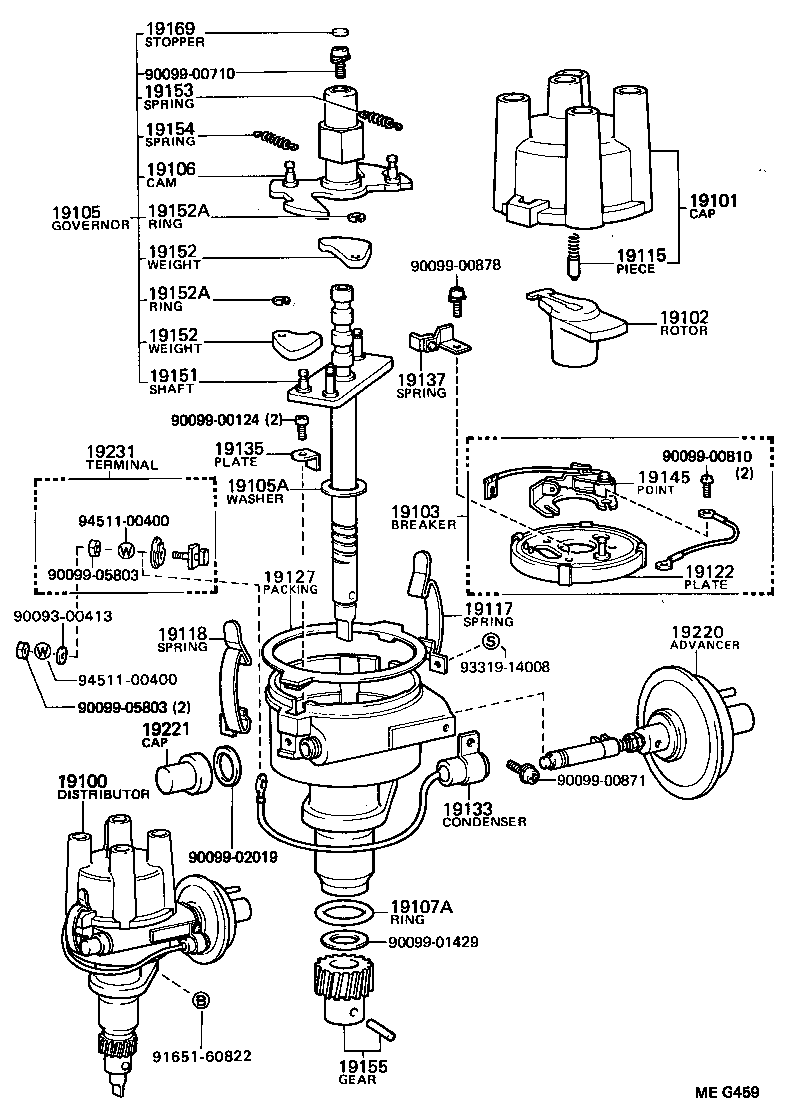

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19100-13380 |
5K..KM3# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-71020 |
5K#..KM3# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-10020 |
5K#..KM36 |
1 | ||
| 19102-33012 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19102-26151 |
5K#..KM3# |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-33013 |
5K..KM3# |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19105-13380 |
5K..KM3# |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01412 |
5K#..KM3# T=2.3,T=2.3 |
1 | ||
| 90099-01385 |
5K#..KM3# T=2.5,T=2.5 |
1 | ||
| 90099-01387 |
5K#..KM3# T=2.9,T=2.9 |
1 | ||
| 90099-01386 |
5K#..KM3# T=2.7,T=2.7 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-34090 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19106-34120 |
5K..KM3# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
5K#..KM3# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
5K#..KM3# |
1 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-24080 |
5K#..KM3# |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19117-24080 |
5K#..KM3# |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-33013 |
5K..KM3# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
5K#..KM3# |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52059 |
5K..KM3# |
1 | ||
| 19135 - PLATE, HOLDER | ||||
| 19135-24080 |
5K#..KM3# |
2 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-33012 |
5K..KM3# |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
5K..KM3# |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-24081 |
5K#..KM3# |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
5K#..KM3# |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
5K#..KM3# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
5K#..KM3# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
5K#..KM3# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-13380 |
5K..KM3# |
1 | ||
| 19153-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-13380 |
5K..KM3# |
1 | ||
| 19154-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-24081 |
5K..KM3# |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
5K#..KM3# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-13380 |
5K..KM3# |
1 | ||
| 19221 - CAP, ADJUSTER, DISTRIBUTOR | ||||
| 19221-30030 |
5K..KM3# |
1 | ||
| 19221-60040 |
5K..KM3# |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-38011 |
5K..KM3# |
1 | ||
| Common parts | ||||
| 90093-00413 | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-01429 | ||||
| 90099-02019 | ||||
| 90099-05803 | ||||
| 91651-60822 | ||||
| 93319-14008 | ||||
| 94511-00400 | ||||
