KM36RV-JRBE (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

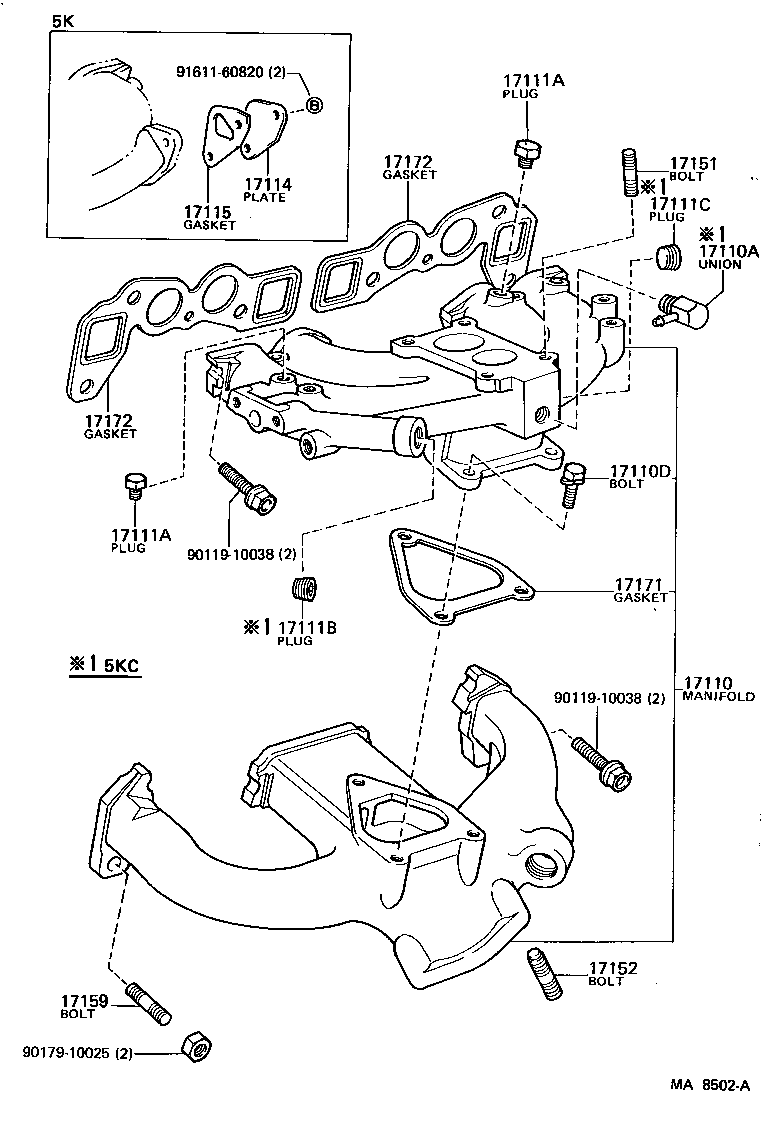

(8509- )5K#

Click highlighted areas on diagram

diagram 17110 17110A 17110D 17111A 17111A 17111B 17111C 17114 17115 17151 17152 17159 17171 17172 17172 9011910038 9011910038 9017910025 9161160820
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-13160

5K..KM3#

 1
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
91611-60822

5K#..KM3#

 3
17111A - PLUG, NO.1
90345-51025

5K#..KM3#

 2
17111A - PLUG, NO.1
90345-51025

5K#..KM3#

 2
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
11495-13020

5K..KM3#

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25627-13020

5K..KM3#

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

5K#..KM3#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10056

5K#..KM3#

 2
90116-10087

5K#..KM3#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-41028

5K#..KM3#

L=43,S=15&15

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-13040

5K#..KM3#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-13021

5K#..KM3#

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-13021

5K#..KM3#

 2
Common parts
90119-10038
90179-10025
91611-60820

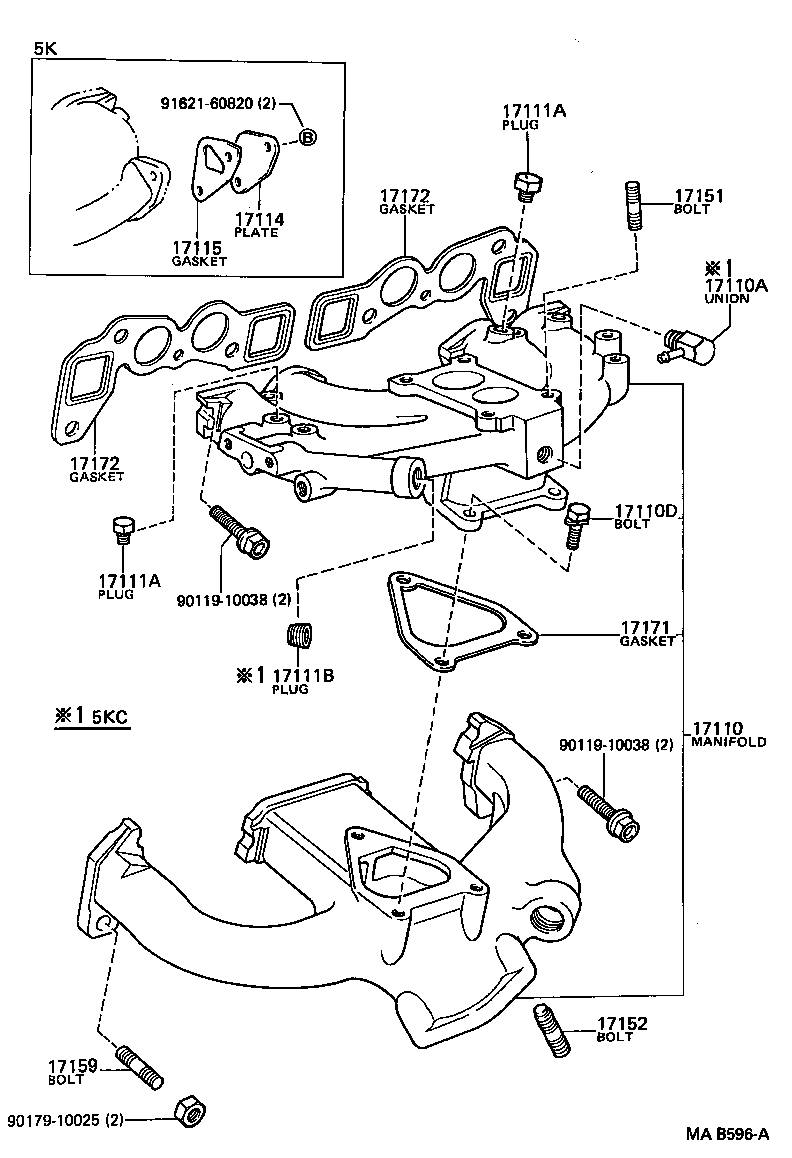

(8808-9610)5K#

Click highlighted areas on diagram

diagram 17110 17110A 17110D 17111A 17111A 17111B 17114 17115 17151 17152 17159 17171 17172 17172 9011910038 9011910038 9017910025 9162160820
Part # Description Qty Price
Common parts
90119-10038
90179-10025
91621-60820
