KM36RV-JRBE (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )5K#

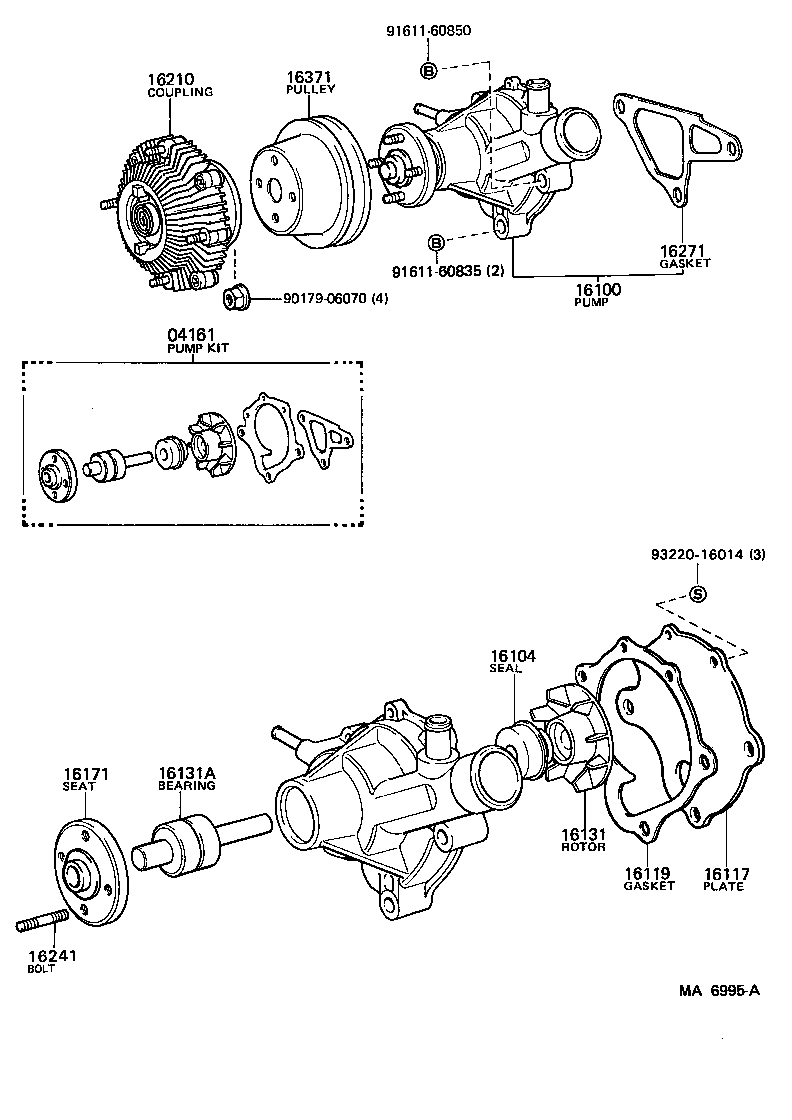

Click highlighted areas on diagram

diagram 04161 16100 16104 16117 16119 16131 16131A 16171 16210 16241 16271 16371 9017906070 9161160835 9161160850 9322016014
Part # Description Qty Price
04161 - PUMP KIT, WATER
04161-13050

5K..KM3#

 1
16100 - PUMP ASSY, ENGINE WATER
16100-19165

5K..KM3#

 1
16104 - SEAL SET, WATER PUMP
16104-15020

5K#..KM3#

 1
16117 - PLATE, WATER PUMP
16117-13011

5K#..KM3#

 1
16119 - GASKET, WATER PUMP BODY
16124-22012

5K#..KM3#

 1
16131 - ROTOR, WATER PUMP
16131-13010

5K#..KM3#

 1
16131A - BEARING, WATER PUMP
90369-30063

5K..KM3#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24031

5K..KM3#

 1
16271 - GASKET, WATER PUMP
16271-13021

5K#..KM3#

 1
16371 - PULLEY, FAN
16371-24050

5K..KM3#

 1
Common parts
90179-06070
91611-60835
91611-60850
93220-16014
