KM36RV-JRBE (1985)
Toyota Liteace
(8509- )5K#

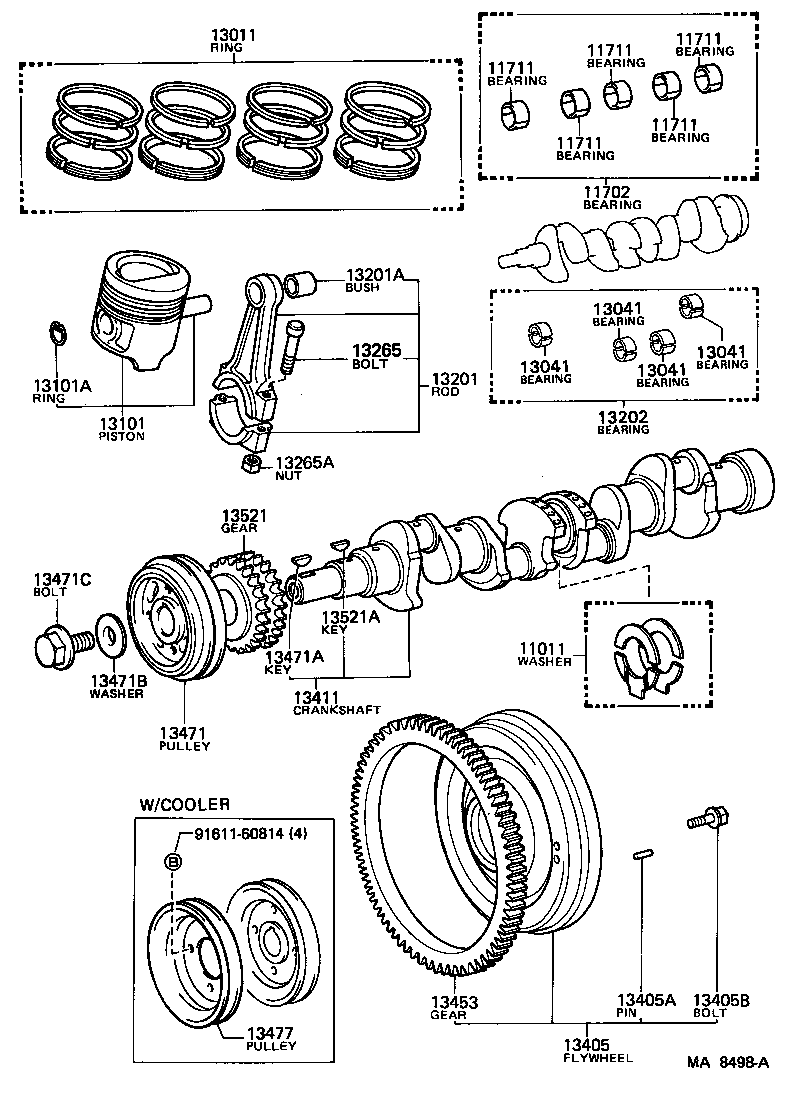

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-22011 |
5K#..KM3# STD,STD |
1 | ||
| 11013-22011 |
5K#..KM3# O/S 0.250,O/S 0.250 |
1 | ||
| 11012-22011 |
5K#..KM3# O/S 0.125,O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-13011 |
5K#..KM3# U/S 0.25,U/S 0.25 |
1 | ||
| 11705-13011 |
5K#..KM3# U/S 0.50,U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K#..KM3# MARK"3",MARK 3 |
5 | ||
| 11701-1301104 |
5K#..KM3# MARK"4",MARK 4 |
5 | ||
| 11701-1301106 |
5K#..KM3# MARK"6",MARK 6 |
5 | ||
| 11701-1301107 |
5K#..KM3# MARK"7",MARK 7 |
5 | ||
| 11701-1301105 |
5K#..KM3# MARK"5",MARK 5 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K#..KM3# MARK"3",MARK 3 |
5 | ||
| 11701-1301104 |
5K#..KM3# MARK"4",MARK 4 |
5 | ||
| 11701-1301106 |
5K#..KM3# MARK"6",MARK 6 |
5 | ||
| 11701-1301107 |
5K#..KM3# MARK"7",MARK 7 |
5 | ||
| 11701-1301105 |
5K#..KM3# MARK"5",MARK 5 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K#..KM3# MARK"3",MARK 3 |
5 | ||
| 11701-1301104 |
5K#..KM3# MARK"4",MARK 4 |
5 | ||
| 11701-1301106 |
5K#..KM3# MARK"6",MARK 6 |
5 | ||
| 11701-1301107 |
5K#..KM3# MARK"7",MARK 7 |
5 | ||
| 11701-1301105 |
5K#..KM3# MARK"5",MARK 5 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K#..KM3# MARK"3",MARK 3 |
5 | ||
| 11701-1301104 |
5K#..KM3# MARK"4",MARK 4 |
5 | ||
| 11701-1301106 |
5K#..KM3# MARK"6",MARK 6 |
5 | ||
| 11701-1301107 |
5K#..KM3# MARK"7",MARK 7 |
5 | ||
| 11701-1301105 |
5K#..KM3# MARK"5",MARK 5 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K#..KM3# MARK"3",MARK 3 |
5 | ||
| 11701-1301104 |
5K#..KM3# MARK"4",MARK 4 |
5 | ||
| 11701-1301106 |
5K#..KM3# MARK"6",MARK 6 |
5 | ||
| 11701-1301107 |
5K#..KM3# MARK"7",MARK 7 |
5 | ||
| 11701-1301105 |
5K#..KM3# MARK"5",MARK 5 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-13090 |
5K#..KM3# STD,STD |
1 | ||
| 13013-13090 |
5K#..KM3# O/S 0.50,O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1304003 |
5K#..KM3# MARK"3",MARK 3 |
4 | ||
| 13041-1304005 |
5K#..KM3# MARK"5",MARK 5 |
4 | ||
| 13041-1304004 |
5K#..KM3# MARK"4",MARK 4 |
4 | ||
| 13041-1304006 |
5K#..KM3# MARK"6",MARK 6 |
4 | ||
| 13041-1304007 |
5K#..KM3# MARK"7",MARK 7 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1304003 |
5K#..KM3# MARK"3",MARK 3 |
4 | ||
| 13041-1304005 |
5K#..KM3# MARK"5",MARK 5 |
4 | ||
| 13041-1304004 |
5K#..KM3# MARK"4",MARK 4 |
4 | ||
| 13041-1304006 |
5K#..KM3# MARK"6",MARK 6 |
4 | ||
| 13041-1304007 |
5K#..KM3# MARK"7",MARK 7 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1304003 |
5K#..KM3# MARK"3",MARK 3 |
4 | ||
| 13041-1304005 |
5K#..KM3# MARK"5",MARK 5 |
4 | ||
| 13041-1304004 |
5K#..KM3# MARK"4",MARK 4 |
4 | ||
| 13041-1304006 |
5K#..KM3# MARK"6",MARK 6 |
4 | ||
| 13041-1304007 |
5K#..KM3# MARK"7",MARK 7 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1304003 |
5K#..KM3# MARK"3",MARK 3 |
4 | ||
| 13041-1304005 |
5K#..KM3# MARK"5",MARK 5 |
4 | ||
| 13041-1304004 |
5K#..KM3# MARK"4",MARK 4 |
4 | ||
| 13041-1304006 |
5K#..KM3# MARK"6",MARK 6 |
4 | ||
| 13041-1304007 |
5K#..KM3# MARK"7",MARK 7 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-13030 |
5K..KM36..RHD..4H STD,STD,SINGAPORE SPEC |
4 | ||
| 13101-13040 |
5K#..KM3# STD,STD |
4 | ||
| 13103-13040 |
5K#..KM3# O/S 0.50,O/S 0.50 |
4 | ||
| 13103-13030 |
5K..KM36..RHD..4H O/S 0.50,O/S 0.50,SINGAPORE SPEC |
4 | ||
| 13101-1303001 |
5K..KM36..RHD..4H STD,STD,MARK"1",SINGAPORE SPEC,MARK 1 |
4 | ||
| 13101-1303002 |
5K..KM36..RHD..4H STD,STD,MARK"2",SINGAPORE SPEC,MARK 2 |
4 | ||
| 13101-1304002 |
5K#..KM3# STD,STD,MARK"2",MARK 2 |
4 | ||
| 13101-1304001 |
5K#..KM3# STD,STD,MARK"1",MARK 1 |
4 | ||
| 13101-1304003 |
5K#..KM3# STD,STD,MARK"3",MARK 3 |
4 | ||
| 13101-1303003 |
5K..KM36..RHD..4H STD,STD,MARK"3",SINGAPORE SPEC,MARK 3 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-21088 |
5K#..KM3# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-13010 |
5K#..KM3# |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73070 |
5K#..KM3# |
1 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-13040 |
5K#..KM3# U/S 0.50,U/S 0.50 |
1 | ||
| 13204-13040 |
5K#..KM3# U/S 0.25,U/S 0.25 |
1 | ||
| 13206-13040 |
5K#..KM3# U/S 0.75,U/S 0.75 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-70010 |
5K#..KM3# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
5K#..KM3# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-29125 |
5K#..KM3# |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
5K#..KM3# L=18,OD=8,L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01005 |
5K#..KM3# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-13900 |
5K#..KM3# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-10010 |
5K#..KM3# N=106 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-13010 |
5K#..KM3# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
5K#..KM3# |
1 | ||
| 95161-10519 |
5K#..KM3# |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13003 |
5K#..KM3# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12051 |
5K#..KM3# *12-1.25PX24-18 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-27020 |
5K..KM3# W/COOLER |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-13020 |
5K#..KM3# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
5K#..KM3# |
1 | ||
| 95161-10519 |
5K#..KM3# |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
