KM36RV-JRBE (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )5K#

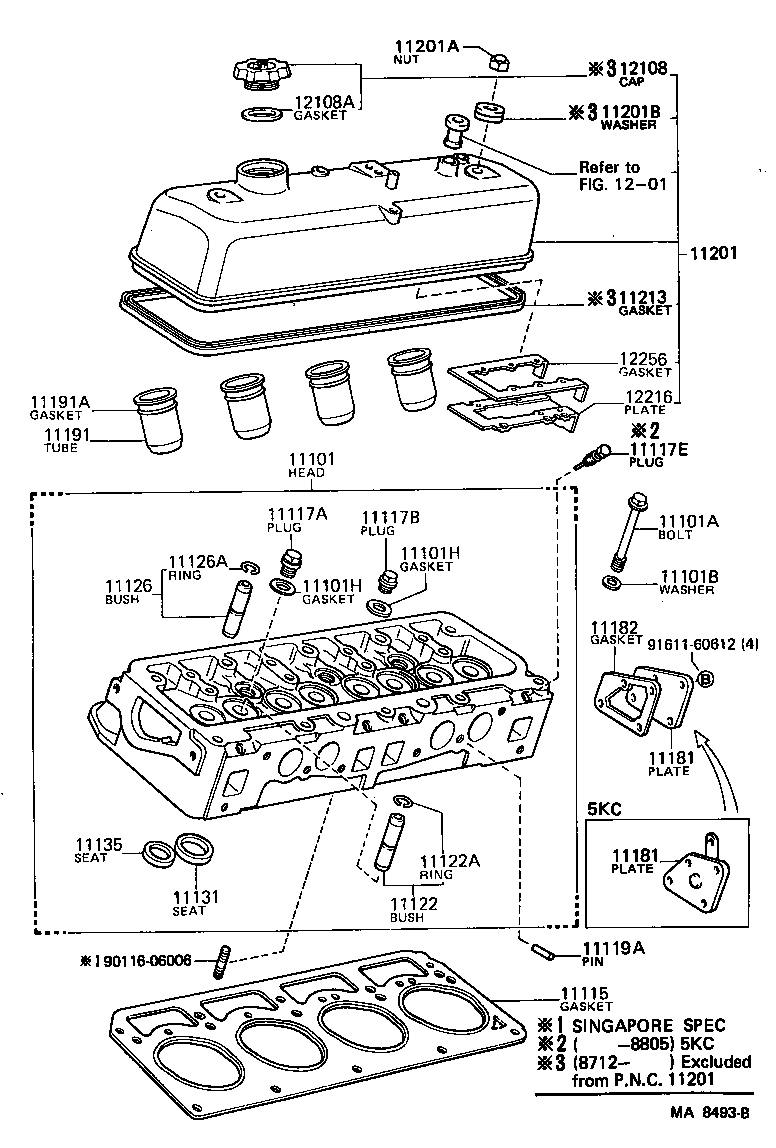

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101H 11101H 11115 11117A 11117B 11117E 11119A 11122 11122A 11126 11126A 11131 11135 11181 11181 11182 11191 11191A 11201 11201A 11201B 11213 1201 12108 12108A 12216 12256 9011606006 9161160612
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-13051

5K..KM3#

 1
11101-13062

5K..KM36..RHD..4H

SINGAPORE SPEC

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02069

5K#..KM3#

 10
90910-02074

5K#..KM3#

HEAD FR RIGHT

 1
90910-02069

5K#..KM3#

 9
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10005

5K#..KM3#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-18152

5K#..KM3#

OD=25

 1
90430-15151

5K#..KM3#

OD=21

 2
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-18152

5K#..KM3#

OD=25

 1
90430-15151

5K#..KM3#

OD=21

 2
11115 - GASKET, CYLINDER HEAD
11115-13040

5K#..KM3#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-18063

5K#..KM3#

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-15045

5K#..KM3#

 2
11119A - PIN, STRAIGHT, NO.1
90250-08120

5K#..KM3#

L=18,OD=8,L=18,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-24020

5K#..KM3#

STD,STD

 4
11123-24020

5K#..KM3#

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

5K#..KM3#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11123-24020

5K#..KM3#

O/S 0.05,O/S 0.05

 4
11122-24020

5K#..KM3#

STD,STD

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

5K#..KM3#

 4
11131 - SEAT, INTAKE VALVE
11132-24010

5K#..KM3#

O/S 0.03,O/S 0.03

 4
11131-24010

5K#..KM3#

STD,STD

 4
11135 - SEAT, EXHAUST VALVE
11135-13010

5K#..KM3#

STD,STD

 4
11136-13010

5K#..KM3#

O/S 0.03,O/S 0.03

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-13020

5K..KM3#

 1
11181-24020

5K..KM3#

 1
11181 - PLATE, CYLINDER HEAD, REAR
11181-13020

5K..KM3#

 1
11181-24020

5K..KM3#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-24010

5K#..KM3#

 1
11191 - TUBE, SPARK PLUG
11191-22010

5K#..KM3#

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31141

5K#..KM3#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-19026

5K#..KM3#

 1
11201-13021

5K#..KM3#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
94171-10800

5K#..KM3#

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09007

5K#..KM3#

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-22010

5K#..KM3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

5K#..KM3#

 1
12216 - PLATE, VENTILATION BAFFLE
12216-22010

5K#..KM3#

 1
12256 - GASKET, VENTILATION BAFFLE
12256-22010

5K#..KM3#

 1
Common parts
90116-06006
91611-60612
Linked diagrams
1201
