KM36RV-JR (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

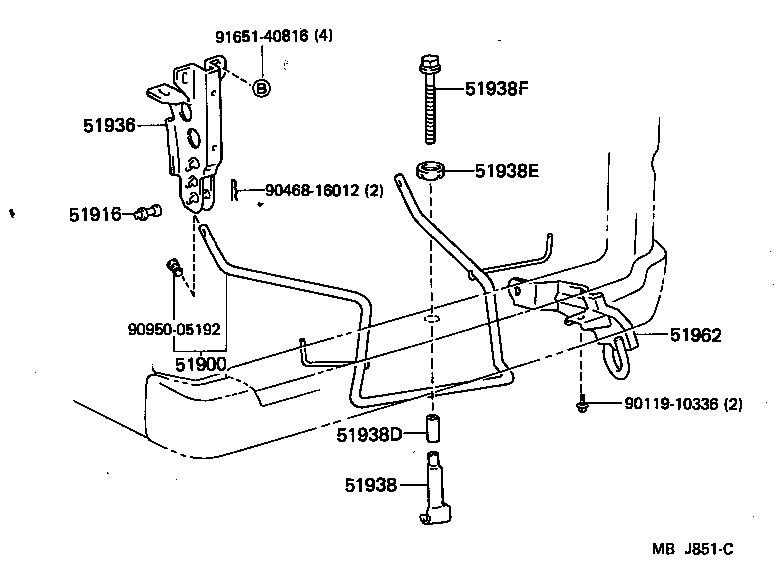

Click highlighted areas on diagram

diagram 51900 51916 51936 51938 51938D 51938E 51938F 51962 9011910336 9046816012 9095005192 9165140816
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-27100

CM3#,KM3#,YM3#,4#

 1
51916 - PIN, SPARE TIRE CARRIER
51916-27020

CM3#,KM3#,YM3#,4#

 2
51936 - BRACKET, SPARE WHEEL CARRIER
51937-27050

CM3#,KM3#,YM3#,4#

 1
51937-27051

CM3#,KM3#,YM30,35,40

 1
51938 - LOCK, SPARE WHEEL CARRIER
51938-22020

CM35,KM36,YM3#

 1
51938-28030

CM3#,KM3#,YM3#,4#

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90387-12037

CM3#,KM3#..GEN

 1
51938E - PLATE, SPARE WHEEL CARRIER LOCK
51937-26010

CM3#,KM3#,YM3#,4#

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
90119-12102

CM3#,KM3#..GEN

 1
51962 - HOOK, NO.2
51095-95700

YM30,31,4#

 1
Common parts
90119-10336
90468-16012
90950-05192
91651-40816
