KM36RV-JR (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

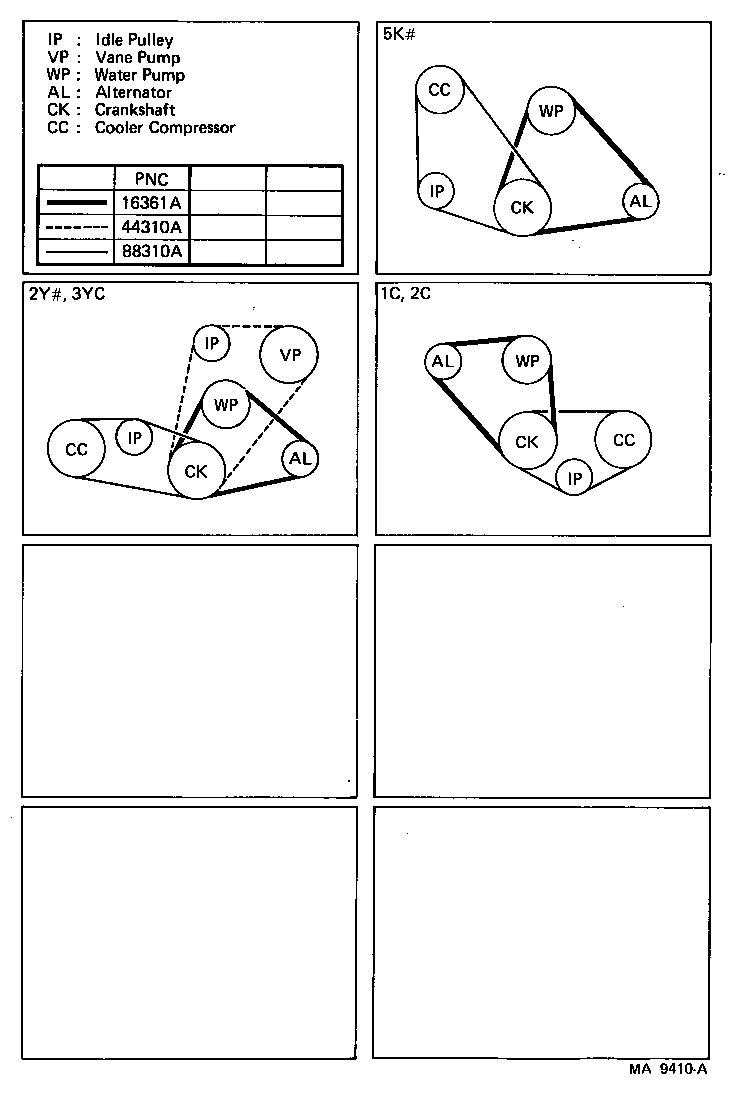

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00850

5K..KM3#..4H

 1
99321-00870

5K..KM3#..4H

W/*DEF,W/HEATER,COOLER

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00980

KM3#..4H

 1
