KM36RV-JR (1988)
Toyota Liteace
Production
Aug 1988
-
Jan 1992
Engine
5K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

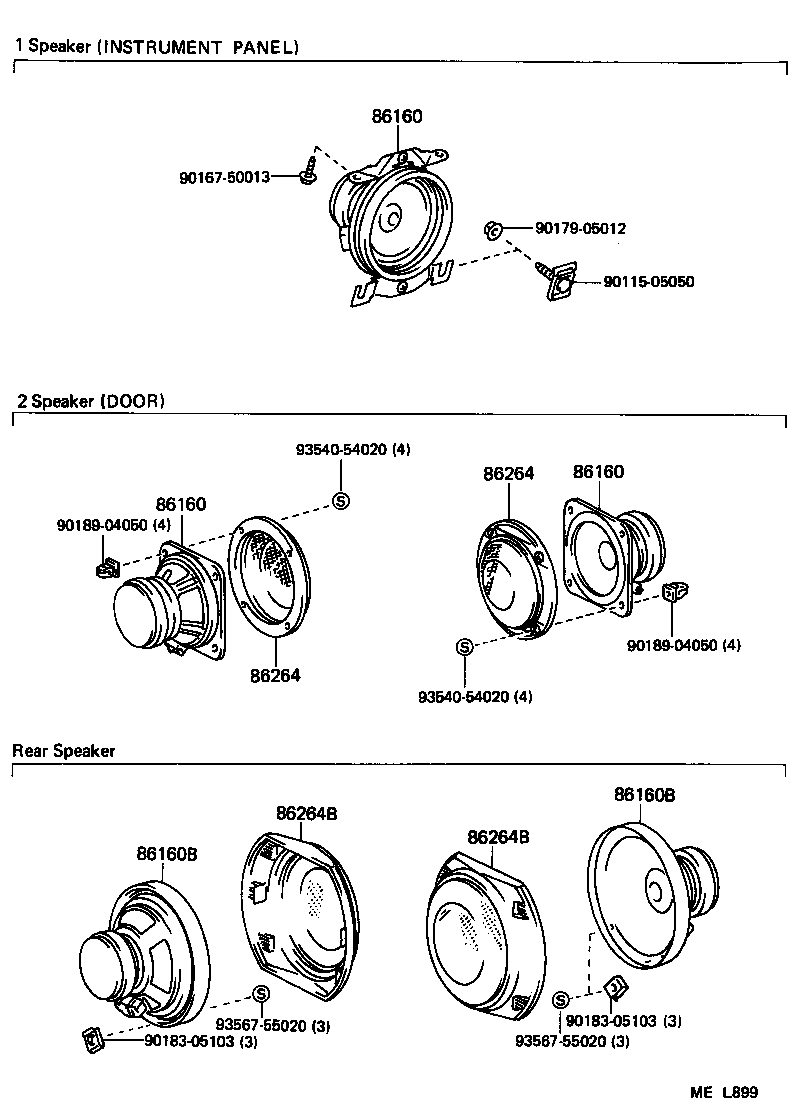

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95716 |
CM36..5H;CM36..RHD..GEN;KM3#,YM35..(4H,5F)..GEN |
1 | ||
| 86160-95722 |
CM36..5H;CM36,KM36..SRF;CM36,KM37..(4H,5F)..(02S,09S) 2-SPEAKERS |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95716 |
CM36..5H;CM36..RHD..GEN;KM3#,YM35..(4H,5F)..GEN |
1 | ||
| 86160-95722 |
CM36..5H;CM36,KM36..SRF;CM36,KM37..(4H,5F)..(02S,09S) 2-SPEAKERS |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95716 |
CM36..5H;CM36..RHD..GEN;KM3#,YM35..(4H,5F)..GEN |
1 | ||
| 86160-95722 |
CM36..5H;CM36,KM36..SRF;CM36,KM37..(4H,5F)..(02S,09S) 2-SPEAKERS |
2 | ||
| 86264 - GRILLE, SPEAKER, FRONT | ||||
| 86269-95716 |
CM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL |
2 | ||
| 86264 - GRILLE, SPEAKER, FRONT | ||||
| 86269-95716 |
CM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL |
2 | ||
| Common parts | ||||
| 90115-05050 | ||||
| 90167-50013 | ||||
| 90179-05012 | ||||
| 90183-05103 | ||||
| 90189-04050 | ||||
| 93540-54020 | ||||
| 93567-55020 | ||||
