KM36RV-JR (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

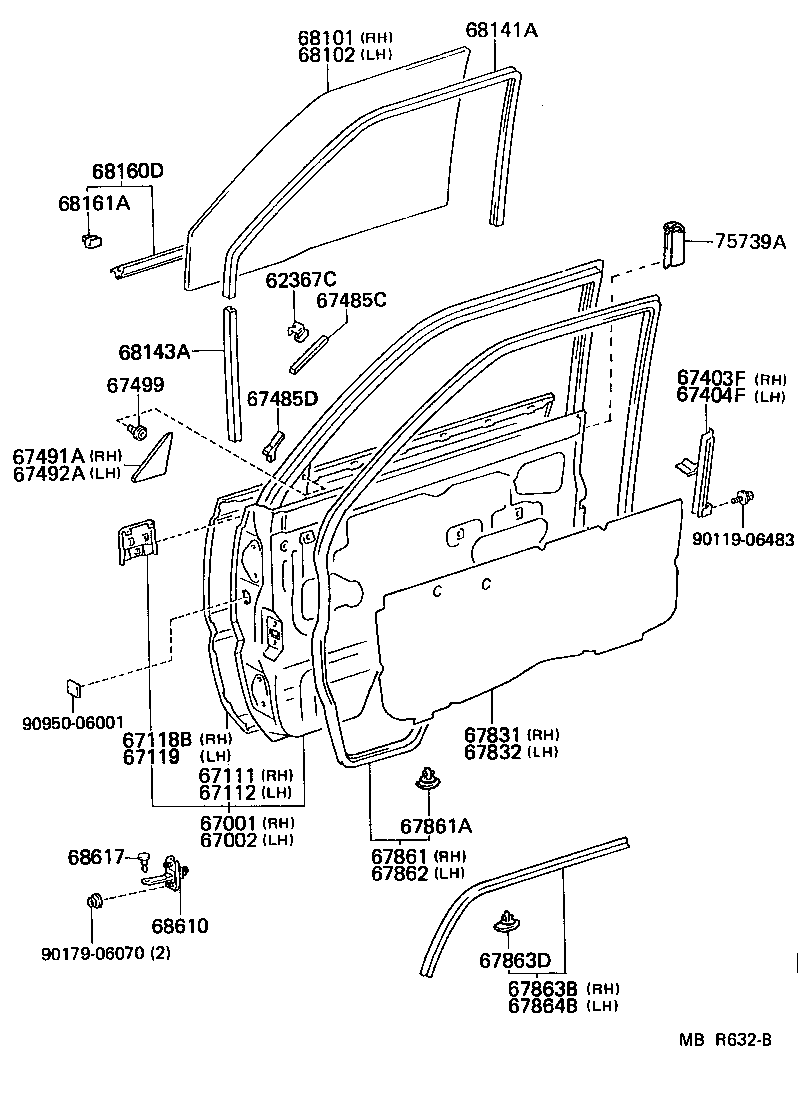

diagram 62367C 67001 67002 67111 67112 67118B 67119 67403F 67404F 67485C 67485D 67491A 67492A 67499 67831 67832 67861 67861A 67862 67863B 67863D 67864B 68101 68102 68141A 68143A 68160D 68161A 68610 68617 75739A 9011906483 9017906070 9095006001
Part # Description Qty Price
62367C - CLIP, DOOR WINDOW GLASS
62367-10010

CM36,KM36,37,YM3#

 2
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-95735

CM36,YM35;KM36..GEN;KM36..03S..ARL

W(FRONT PILLAR GARNISH)

 1
67001-95734

KM36..GEN;CM36,KM37,YM35;KM36..03S..ARL

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-95736

CM36,KM36,YM35..RHD..GEN

 1
67002-95738

CM36,KM36,YM35..RHD..GEN

W(FRONT PILLAR GARNISH)

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-95716

CM36,KM3#,YM30,35

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-95712

CM36,KM36,YM31,35..RHD..GEN

 1
67118B - RETAINER, OUTER REAR VIEW MIRROR, RH
67118-95700

CM36,KM3#,YM30,35

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-95701

CM36,KM36,37,YM3#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-95701

CM36,KM36,37,YM3#

 1
67485C - SEAL, FRONT DOOR BRACKET, NO.1
67485-95J01

CM36,KM36,37,YM3#

 2
67485D - SEAL, FRONT DOOR BRACKET, NO.2
67485-95701

CM36,KM36,37,YM3#

 2
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-95700

CM36,KM36,37,YM3#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-95700

CM36,KM36,37,YM3#

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67772-95J01

CM36,KM36,37,YM3#

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-95703

CM36,KM36,37,YM31,35

 1
67831-95704

CM36..5H;CM36,KM36..SRF;CM36,KM37..(4H,5F)..(02S,09S)

W(SPEAKER)

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-95703

CM36,KM36,37,YM31,35

 1
67832-95700

CM36..5H;CM36,KM36..SRF;CM36,KM37..(4H,5F)..(02S,09S)

W(SPEAKER)

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-95705

CM36,KM3#,YM35

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67867-95700

CM36,KM3#,YM3#

RH

 27
67868-95700

CM36,KM3#,YM3#

LH

 27
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-95705

CM36,KM3#,YM35

 1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-95700

CM36,KM3#,YM3#

 1
67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-95700

CM36,KM3#,YM3#

RH

 12
67868-95700

CM36,KM3#,YM3#

LH

 12
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-95700

CM36,KM3#,YM3#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-95706

CM36..SRF;KM37,YM30,35..VSG;CM36,KM36..MRF..(4H,5H);KM36..SRF..(4H,5F)..GEN

*TT,T=4.0

 1
68111-95705

CM36,KM36,37,YM3#

*TEM,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-95706

CM36..SRF;KM37,YM30,35..VSG;CM36,KM36..MRF..(4H,5H);KM36..SRF..(4H,5F)..GEN

*TT,T=4.0

 1
68112-95705

CM36,KM36,37,YM3#

*TEM,T=4.0

 1
68141A - RUN, FRONT DOOR GLASS, UPPER
68141-95706

CM36,KM3#,YM3#

 2
68143A - RUN, FRONT DOOR GLASS, NO.2
68143-95704

CM36,KM36,37,YM3#

 2
68160D - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER
68160-95701

CM36,KM3#,YM3#

 2
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-30080

CM36,KM3#,YM3#

 14
68610 - CHECK ASSY, FRONT DOOR
68610-95701

CM36,KM3#,YM3#

 2
68617 - PIN, FRONT DOOR CHECK
68617-90A00

CM36,KM3#,YM3#

 2
75739A - MOULDING DOOR EDGE
75739-95J00

CM36,KM3#,YM3#

 1
Common parts
90119-06483
90179-06070
90950-06001

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

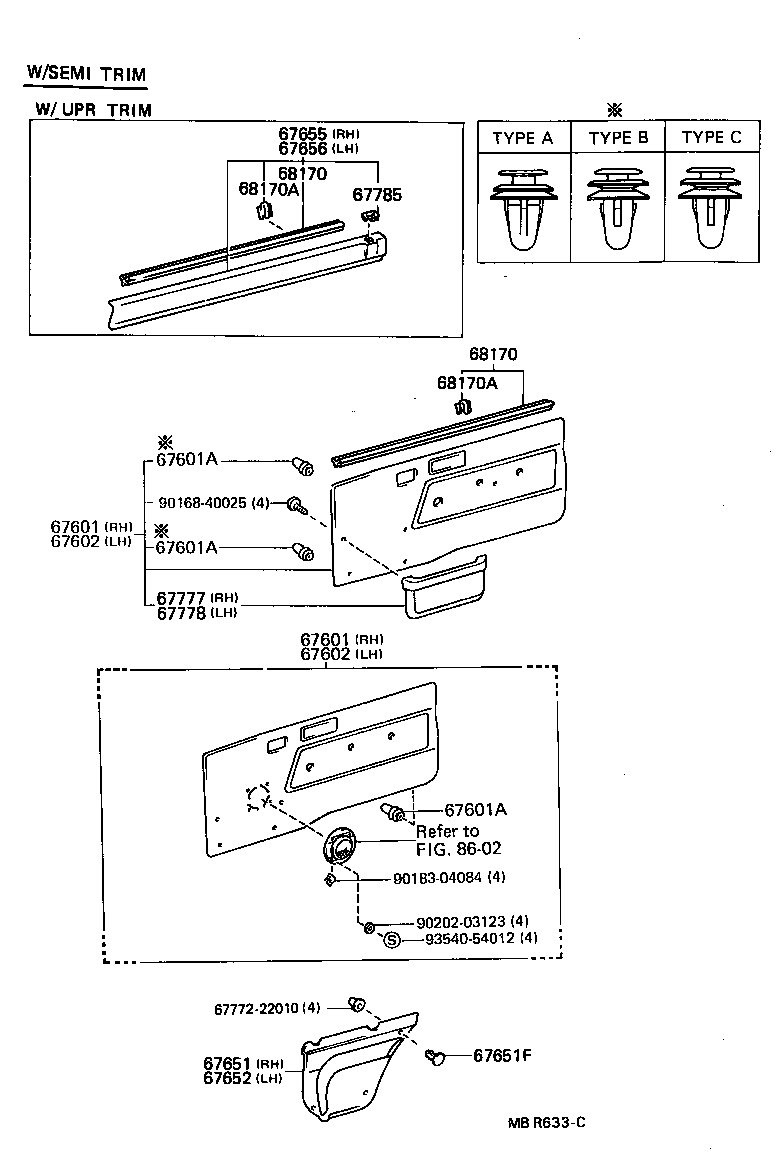

diagram 67601 67601 67601A 67601A 67601A 67602 67602 67651 67651F 67652 67655 67656 6777222010 67777 67778 67785 68170 68170 68170A 68170A 8602 9016840025 9018304084 9020203123 9354054012
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9576303

CM36,KM36..RHD..(4F,4H)..GEN

W(SPEAKER),GRAY,TRIM1#

 1
67610-9575803

CM36,KM36,YM35

GRAY,TRIM1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9576303

CM36,KM36..RHD..(4F,4H)..GEN

W(SPEAKER),GRAY,TRIM1#

 1
67610-9575803

CM36,KM36,YM35

GRAY,TRIM1#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

CM36,KM36,37,YM3#

 26
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

CM36,KM36,37,YM3#

 26
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

CM36,KM36,37,YM3#

 26
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9574803

CM36,KM36..RHD..(4F,4H)..GEN

W(SPEAKER),GRAY,TRIM1#

 1
67620-9574603

CM36,KM36,YM35

GRAY,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9574803

CM36,KM36..RHD..(4F,4H)..GEN

W(SPEAKER),GRAY,TRIM1#

 1
67620-9574603

CM36,KM36,YM35

GRAY,TRIM1#

 1
67655 - GARNISH, FRONT DOOR TRIM, RH
67650-9570313

CM36..5H;KM30,37,YM3#;CM36,KM36..SRF;CM36,KM36..MRF..ARL

GRAY,TRIM1#

 1
67656 - GARNISH, DOOR TRIM, LH
67660-9570413

CM36..5H;KM30,37,YM3#;CM36,KM36..SRF;CM36,KM36..MRF..ARL

GRAY,TRIM1#

 1
67785 - HOLDER, FRONT DOOR LOCKING BUTTON COLLAR
69751-1201013

CM36..5H;KM30,37,YM3#;CM36,KM36..SRF;CM36,KM36..MRF..ARL

GRAY,TRIM1#

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95707

CM36,YM35;KM36..GEN;KM36..03S..ARL

W(FRONT PILLAR GARNISH),RH

 1
68171-95706

KM36..GEN;CM36,KM37,YM35;KM36..03S..ARL

RH

 1
68172-95706

KM36..GEN;CM36,KM37,YM35;KM36..03S..ARL

LH

 1
68172-95707

CM36,YM35;KM36..GEN;KM36..03S..ARL

W(FRONT PILLAR GARNISH),LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95707

CM36,YM35;KM36..GEN;KM36..03S..ARL

W(FRONT PILLAR GARNISH),RH

 1
68171-95706

KM36..GEN;CM36,KM37,YM35;KM36..03S..ARL

RH

 1
68172-95706

KM36..GEN;CM36,KM37,YM35;KM36..03S..ARL

LH

 1
68172-95707

CM36,YM35;KM36..GEN;KM36..03S..ARL

W(FRONT PILLAR GARNISH),LH

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-12080

CM36,KM3#,YM3#

 14
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-12080

CM36,KM3#,YM3#

 14
Common parts
67772-22010
90168-40025
90183-04084
90202-03123
93540-54012
Linked diagrams
8602
