KM36LV-JRBFE (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )5K#

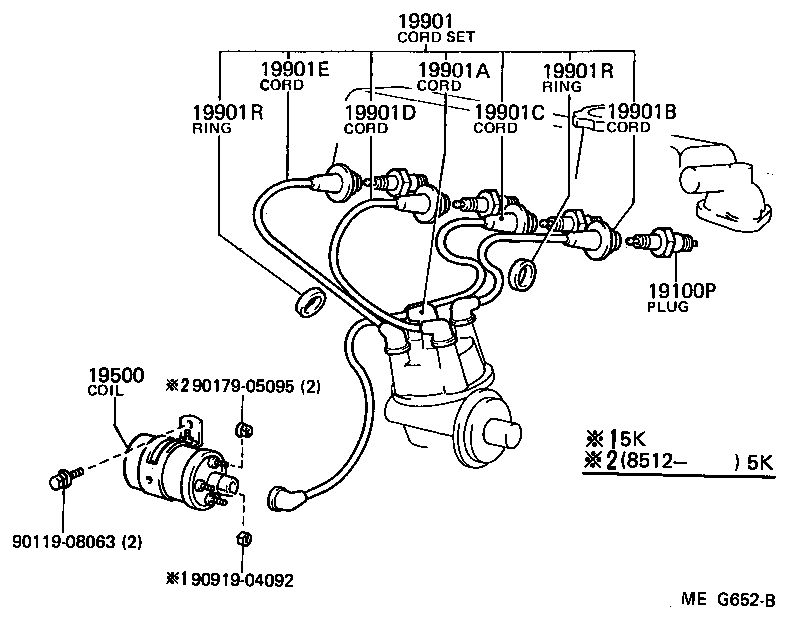

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 9011908063 9017905095 9091904092
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

5K#..KM3#

W16EX-U,W16EX-U

 4
90919-01059

5K#..KM3#

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02149

5K..KM36

 1
90919-02177

5K..KM3#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21378

5K..KM3#..LHD

 1
19901A - CORD, COIL RESISTIVE
90919-13255

5K..KM3#..LHD

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12084

5K#..KM3#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12083

5K#..KM3#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12083

5K#..KM3#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12084

5K#..KM3#

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

5K#..KM3#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

5K#..KM3#

 2
Common parts
90119-08063
90179-05095
90919-04092
