KM36LV-JRBFE (1988)
Toyota Liteace

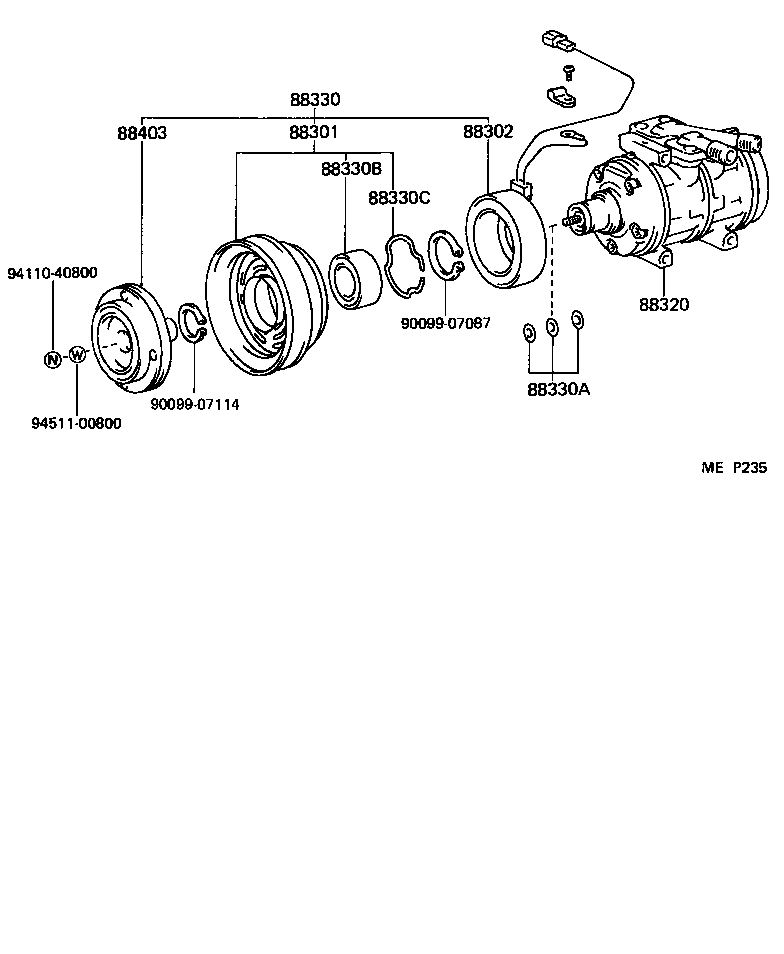

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
KM36..06S..ARL;KM30,37,YM30,35;KM36..SRF..(4H,5F) |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
KM36,37..LHD;CM36,KM30..MRF..5F |
1 | ||
| 88411-14050 |
KM36..4H,5F;CM36,KM37,YM3#..(4FC,4H,5F)..(02S,08S,09S) |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-27090 |
KM3#..LHD |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
KM3#,YM3#..4FC,4H,5F |
1 | ||
| 88410-22080 |
KM3#..LHD |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
KM36..06S..ARL;CM36,KM30,37,YM3#;KM36..SRF..(4H,5F) |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
KM37;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM30,YM3#..MRF..(4FC,5F) |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
KM36..06S..ARL;KM30,37,YM30,35;KM36..SRF..(4H,5F) |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
KM37;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM30,YM3#..MRF..(4FC,5F) |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

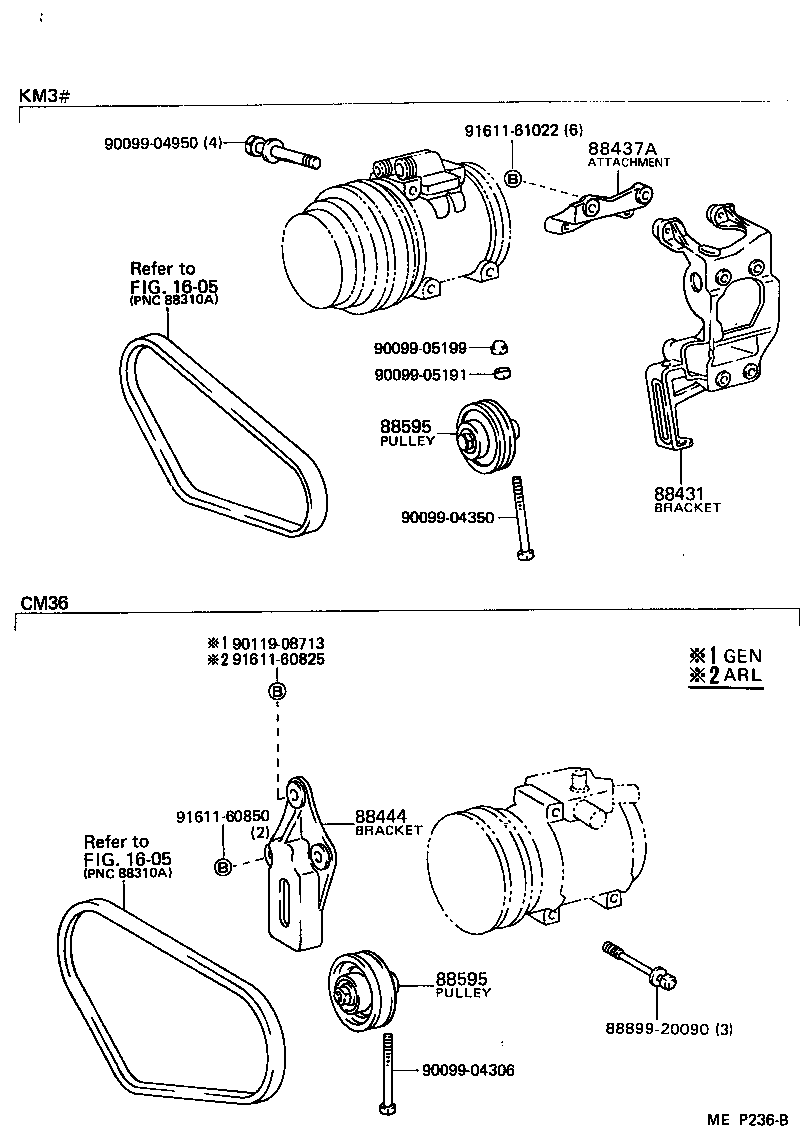

ILLUST NO. 2 OF 3(8808- )CM36,KM3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-27030 |
KM30,37;KM36..06S..ARL;KM36..SRF..(4H,5F) |
1 | ||
| 88437A - ATTACHMENT, COMPRESSOR | ||||
| 88437-27030 |
KM30,37;KM36..06S..ARL;KM36..SRF..(4H,5F) |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-35020 |
CM36..5H;CM36..SRF;KM30,37,YM30,35;KM36..SRF..(4H,5F)..GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-35020 |
CM36..5H;CM36..SRF;KM30,37,YM30,35;KM36..SRF..(4H,5F)..GEN |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04306 | ||||
| 90099-04350 | ||||
| 90099-04950 | ||||
| 90099-05191 | ||||
| 90099-05199 | ||||
| 90119-08713 | ||||
| 91611-60825 | ||||
| 91611-60850 | ||||
| 91611-61022 | ||||
| Linked diagrams | ||||
| 1605 | ||||

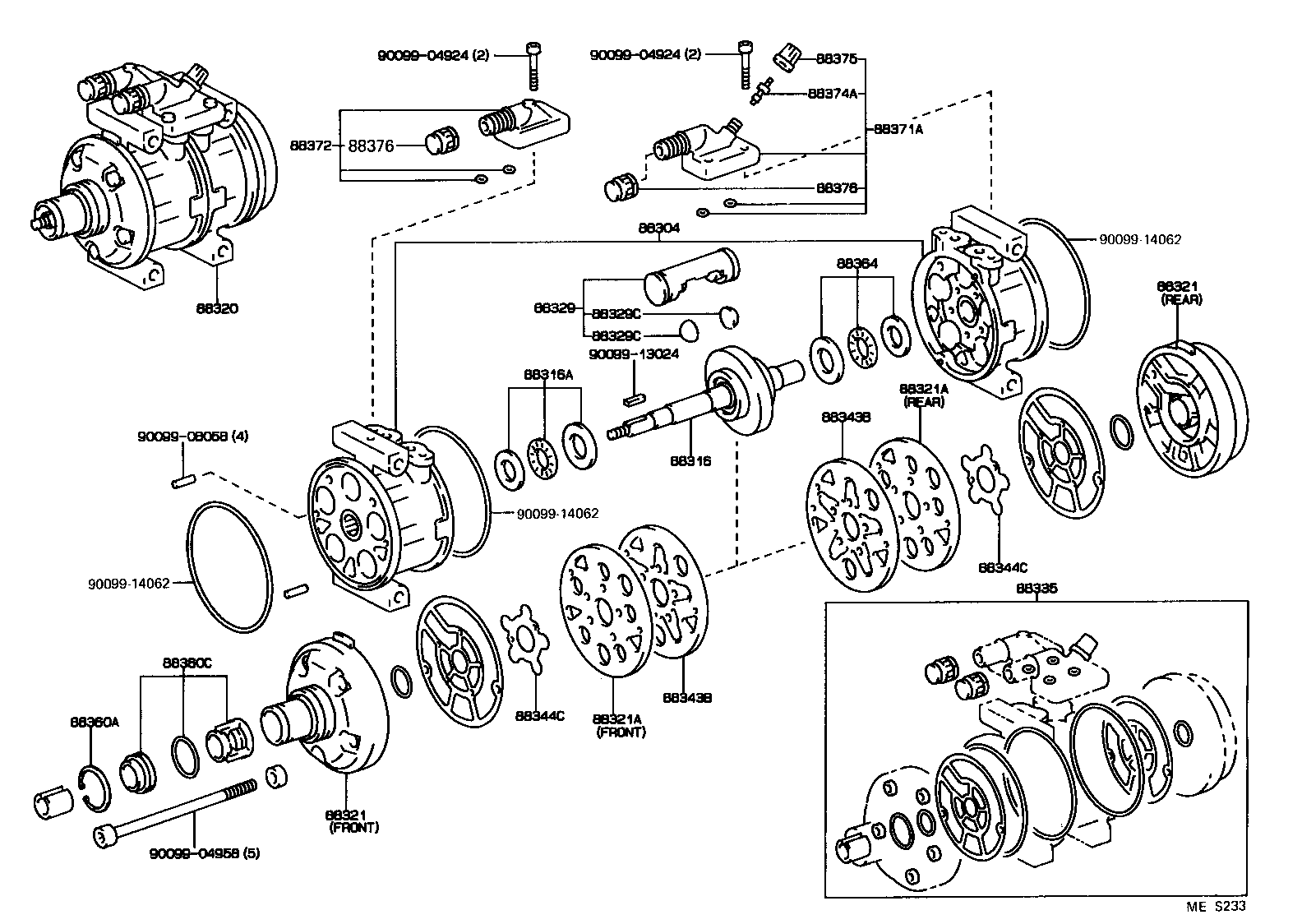

ILLUST NO. 3 OF 3(8808- )KM3#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14021 |
KM3#..LHD |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14011 |
KM30,36..LHD;CM36,KM37..(4H,5F)..(02S,09S) |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
KM3#..LHD |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-27090 |
KM3#..LHD |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) RR |
1 | ||
| 88321-14011 |
KM36,37..4H,5F;CM36,KM30,YM3#..MRF..(4FC,5F) FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) RR |
1 | ||
| 88321-14011 |
KM36,37..4H,5F;CM36,KM30,YM3#..MRF..(4FC,5F) FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) RR |
1 | ||
| 88341-14010 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) RR |
1 | ||
| 88341-14010 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) FR |
1 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-14020 |
KM3#..LHD |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
KM3#..LHD |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
KM3#..LHD |
10 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-10010 |
KM30;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37..(4H,5F)..(02S,09S) |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
CM36..5H;CM36..SRF;KM30,37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-40010 |
KM36,37..4H,5F;CM36,KM30,YM3#..MRF..(4FC,5F) |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
KM3#..LHD |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-28030 |
KM3#..LHD |
1 | ||
| 88372 - VALVE, DISCHARGE | ||||
| 88372-27030 |
KM3#..LHD |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-26020 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) DISCHARGE |
1 | ||
| 88376-26010 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-26020 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) DISCHARGE |
1 | ||
| 88376-26010 |
KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S,09S) SUCTION |
1 | ||
| Common parts | ||||
| 90099-04924 | ||||
| 90099-04958 | ||||
| 90099-08058 | ||||
| 90099-13024 | ||||
| 90099-14062 | ||||
