KM36LV-JRBFE (1988)
Toyota Liteace
Production
Aug 1988
-
Jan 1992
Engine
5K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

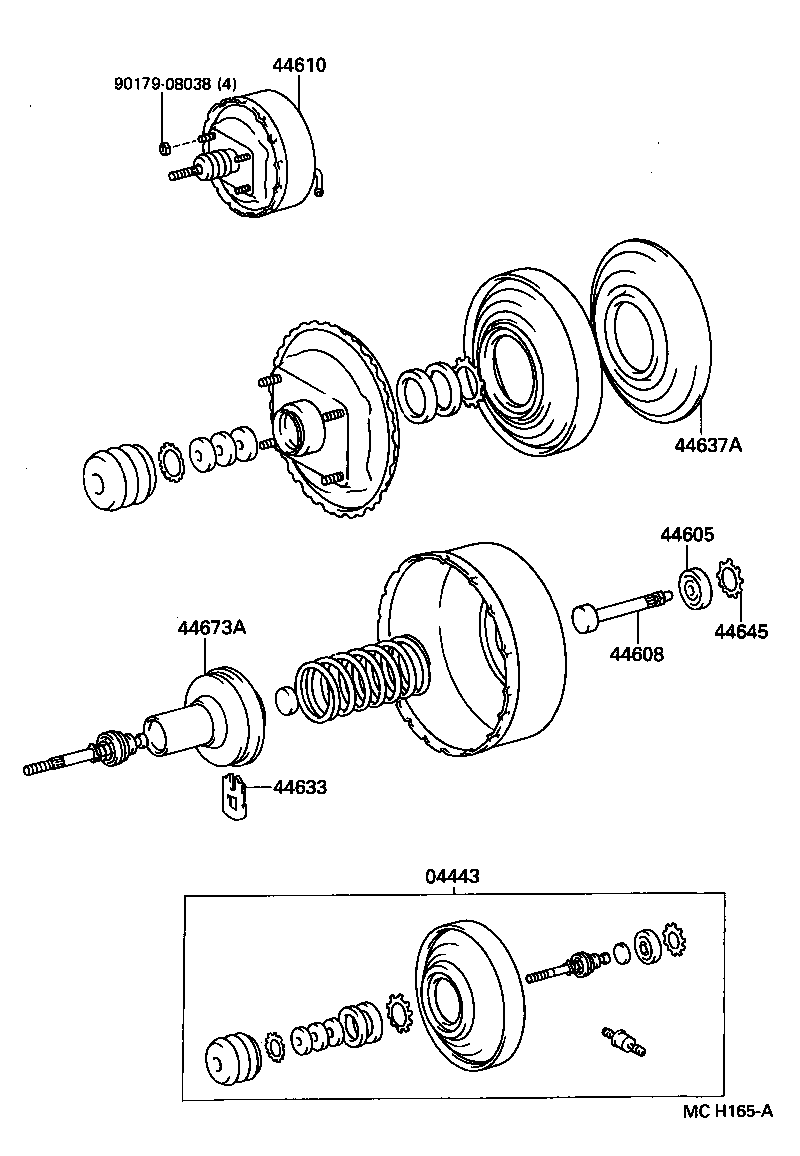

ILLUST NO. 1 OF 2(8808- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-27260 |
KM3#..LHD |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
CM36,KM3#..LHD |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
CM36,KM3#..LHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-27250 |
CM36,KM3#..LHD |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
CM36,KM3#..LHD |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
CM36,KM3#..LHD |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
CM36,KM3#..LHD |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-28190 |
CM36,KM3#..LHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

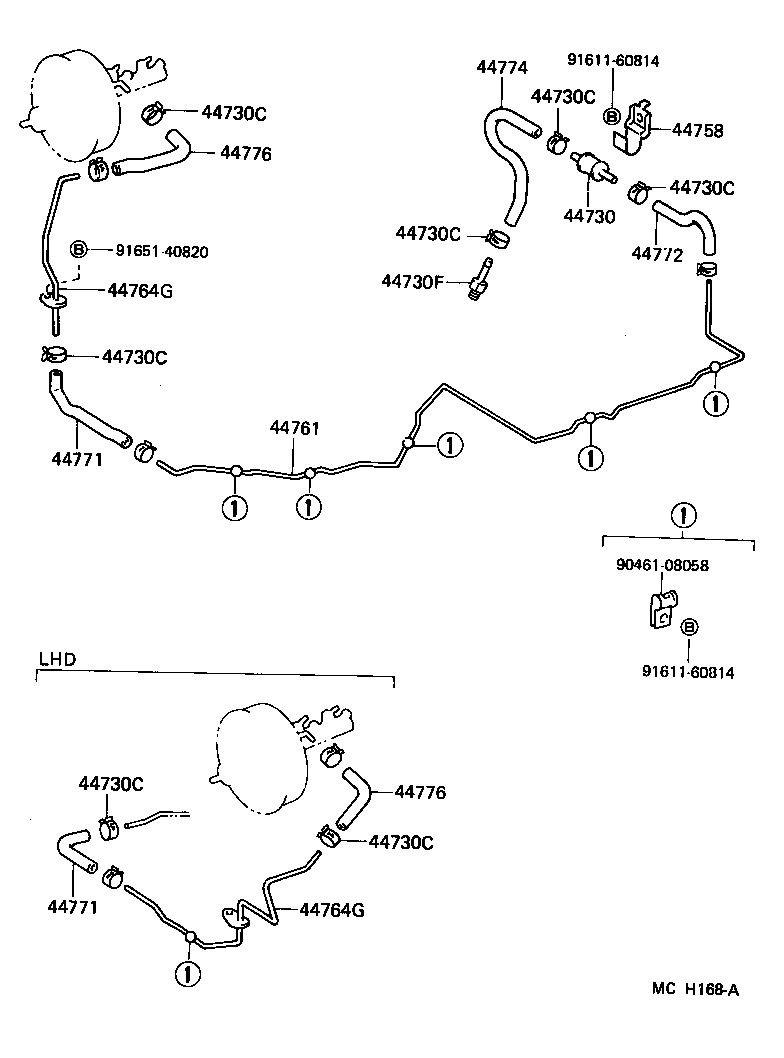

ILLUST NO. 2 OF 2(8808- )KM3#,YM3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24020 |
KM3#,YM3# |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CM36,KM3#,YM3# |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CM36,KM3#,YM3# |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CM36,KM3#,YM3# |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CM36,KM3#,YM3# |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CM36,KM3#,YM3# |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CM36,KM3#,YM3# |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CM36,KM3#,YM3# |
8 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
KM3#,YM3# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-27070 |
KM3#,YM3# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-27100 |
KM3#..LHD |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-27050 |
CM36,KM3#..LHD |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-27050 |
CM36,KM3#..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-27040 |
KM3#..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-27040 |
KM3#..LHD |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-27010 |
KM3#..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-27110 |
KM3#..LHD |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-27010 |
CM36,KM3#..LHD |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-27010 |
CM36,KM3#..LHD |
1 | ||
| Common parts | ||||
| 90461-08058 | ||||
| 91611-60814 | ||||
| 91651-40820 | ||||
