KM36LV-JR (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

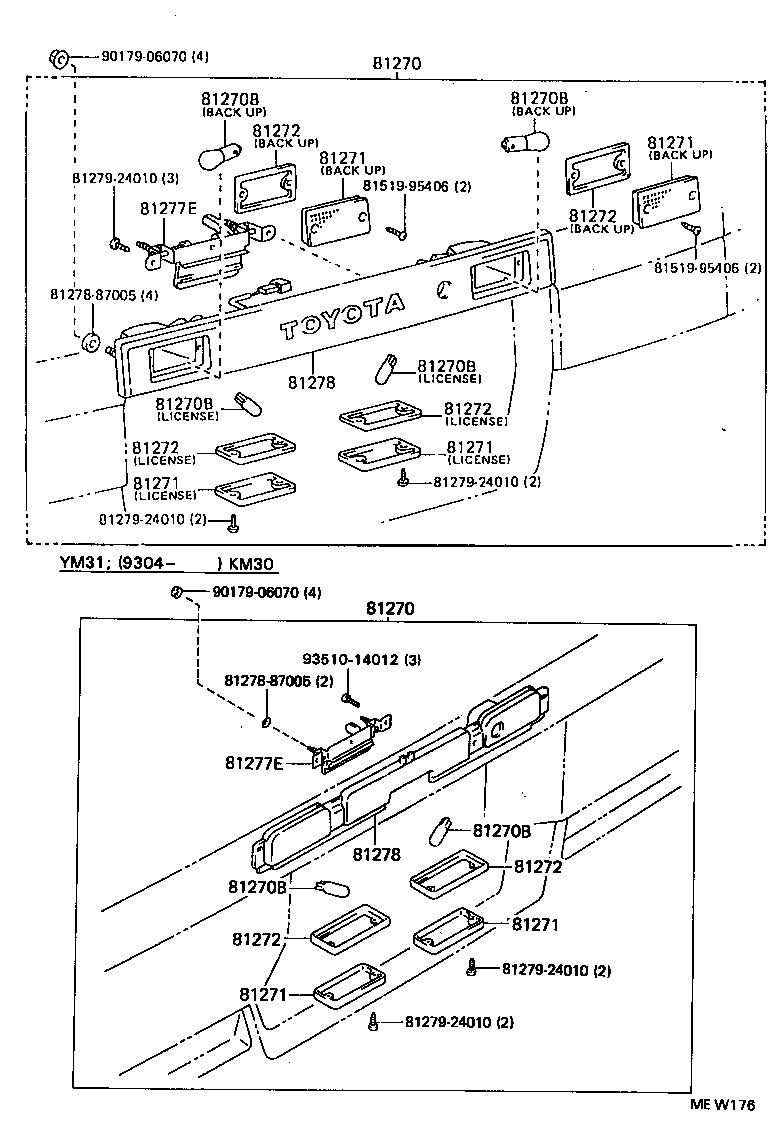

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81270B 81270B 81270B 81271 81271 81271 81271 81271 81271 81272 81272 81272 81272 81272 81272 81277E 81277E 81278 81278 8127887005 8127887005 8127924010 8127924010 8127924010 8127924010 8127924010 8151995406 8151995406 9017906070 9017906070 9351014012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-95713

CM36,KM3#,YM30,35

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-95713

CM36,KM3#,YM30,35

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11210

CM36,KM3#,YM30,35

12V 21W,BACK UP

 2
99132-12050

CM36,KM3#,YM30,35

12V 5W,LICENSE

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11210

CM36,KM3#,YM30,35

12V 21W,BACK UP

 2
99132-12050

CM36,KM3#,YM30,35

12V 5W,LICENSE

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11210

CM36,KM3#,YM30,35

12V 21W,BACK UP

 2
99132-12050

CM36,KM3#,YM30,35

12V 5W,LICENSE

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11210

CM36,KM3#,YM30,35

12V 21W,BACK UP

 2
99132-12050

CM36,KM3#,YM30,35

12V 5W,LICENSE

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11210

CM36,KM3#,YM30,35

12V 21W,BACK UP

 2
99132-12050

CM36,KM3#,YM30,35

12V 5W,LICENSE

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11210

CM36,KM3#,YM30,35

12V 21W,BACK UP

 2
99132-12050

CM36,KM3#,YM30,35

12V 5W,LICENSE

 2
81271 - LENS, LICENSE PLATE LAMP
81277-95709

CM36,KM3#,YM30,35

BACK UP

 2
81271-95709

CM36,KM3#,YM30,35

LICENSE

 2
81271 - LENS, LICENSE PLATE LAMP
81277-95709

CM36,KM3#,YM30,35

BACK UP

 2
81271-95709

CM36,KM3#,YM30,35

LICENSE

 2
81271 - LENS, LICENSE PLATE LAMP
81277-95709

CM36,KM3#,YM30,35

BACK UP

 2
81271-95709

CM36,KM3#,YM30,35

LICENSE

 2
81271 - LENS, LICENSE PLATE LAMP
81277-95709

CM36,KM3#,YM30,35

BACK UP

 2
81271-95709

CM36,KM3#,YM30,35

LICENSE

 2
81271 - LENS, LICENSE PLATE LAMP
81277-95709

CM36,KM3#,YM30,35

BACK UP

 2
81271-95709

CM36,KM3#,YM30,35

LICENSE

 2
81271 - LENS, LICENSE PLATE LAMP
81277-95709

CM36,KM3#,YM30,35

BACK UP

 2
81271-95709

CM36,KM3#,YM30,35

LICENSE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-95709

CM36,KM3#,YM30,35

BACK UP

 2
81272-95709

CM36,KM3#,YM30,35

LICENSE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-95709

CM36,KM3#,YM30,35

BACK UP

 2
81272-95709

CM36,KM3#,YM30,35

LICENSE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-95709

CM36,KM3#,YM30,35

BACK UP

 2
81272-95709

CM36,KM3#,YM30,35

LICENSE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-95709

CM36,KM3#,YM30,35

BACK UP

 2
81272-95709

CM36,KM3#,YM30,35

LICENSE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-95709

CM36,KM3#,YM30,35

BACK UP

 2
81272-95709

CM36,KM3#,YM30,35

LICENSE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-95709

CM36,KM3#,YM30,35

BACK UP

 2
81272-95709

CM36,KM3#,YM30,35

LICENSE

 2
81277E - HANDLE, LICENSE PLATE LAMP
81278-95709

CM36,KM3#,YM3#

 1
81277E - HANDLE, LICENSE PLATE LAMP
81278-95709

CM36,KM3#,YM3#

 1
81278 - COVER, LICENSE PLATE LAMP
81273-95713

CM36,KM3#,YM30,35

 1
81278 - COVER, LICENSE PLATE LAMP
81273-95713

CM36,KM3#,YM30,35

 1
Common parts
81278-87005
81279-24010
81519-95406
90179-06070
93510-14012
