KM36LV-JR (1988)
Toyota Liteace
(8808- )CM36,KM36,YM31,35

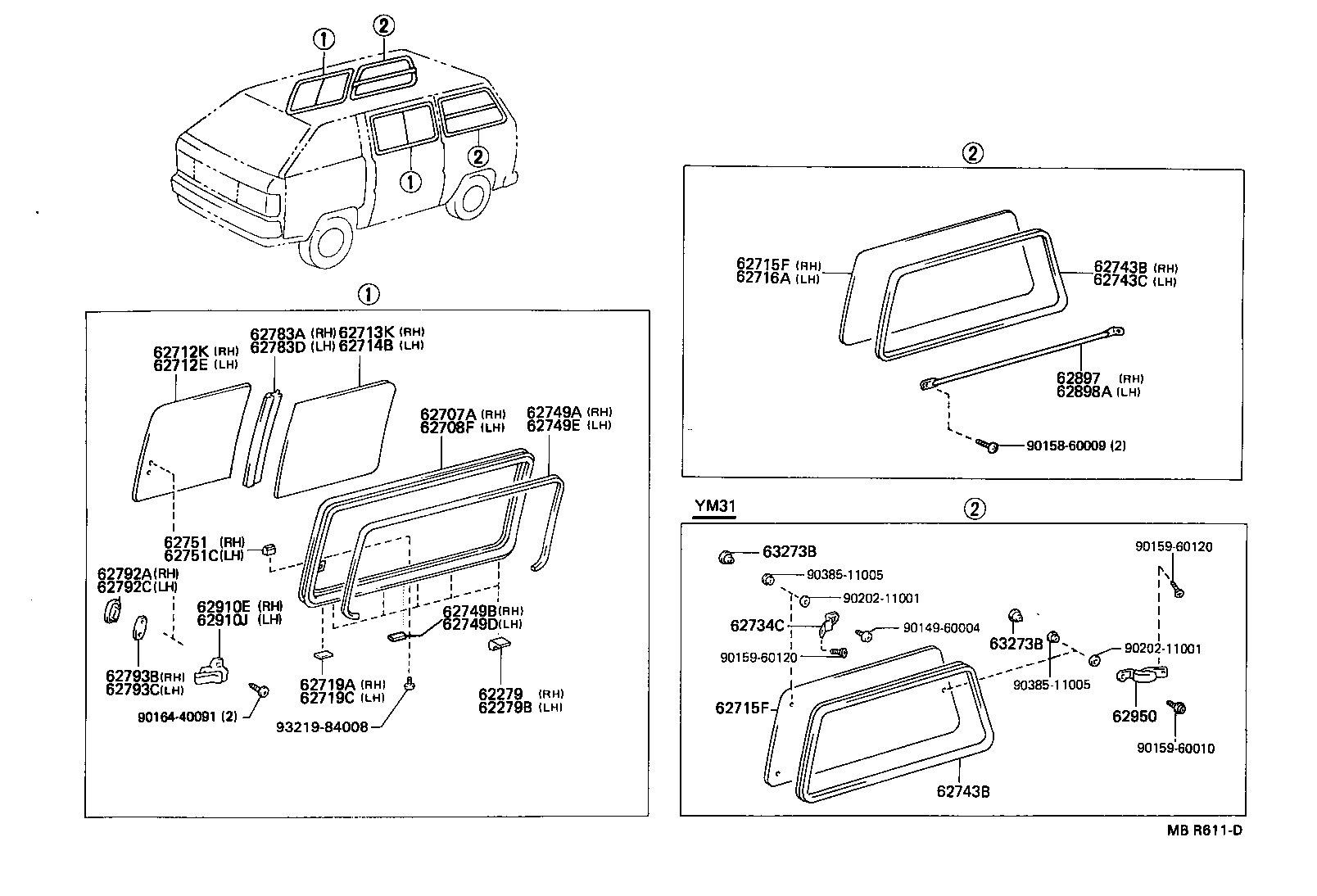

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-95701 |
CM36,KM3#,YM3#..VSG |
4 | ||
| 62279B - SPACER, SIDE WINDOW FRAME, LH | ||||
| 62279-95701 |
CM36,KM3#,YM3#..VSG |
4 | ||
| 62707A - FRAME SUB-ASSY, SIDE FRONT WINDOW, RH | ||||
| 67043-95700 |
CM36,KM36..LHD..VSG |
1 | ||
| 67043-27010 |
CM36,KM36..LHD..VSG |
1 | ||
| 62708F - FRAME SUB-ASSY, SIDE FRONT WINDOW, LH | ||||
| 62708-27010 |
CM36,KM36..LHD..VSG |
1 | ||
| 62708-95700 |
CM36,KM36..LHD..VSG |
1 | ||
| 62712E - GLASS, SIDE FRONT WINDOW, LH | ||||
| 62712-95711 |
CM36,KM36,37..LHD..VSG *TEM,T=4.0 |
1 | ||
| 62712-95712 |
CM36,KM36,37..LHD..VSG *TT,T=4.0 |
1 | ||
| 62712K - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62732-95716 |
CM36,KM36,37..LHD..VSG *TT,T=4.0 |
1 | ||
| 62732-95715 |
CM36,KM36,37..LHD..VSG *TEM,T=4.0 |
1 | ||
| 62713K - GLASS, SIDE WINDOW, REAR RH | ||||
| 62735-95705 |
CM36,KM36..LHD..VSG *TT,T=4.0 |
1 | ||
| 62735-95704 |
CM36,KM36..LHD..VSG *TEM,T=4.0 |
1 | ||
| 62714B - GLASS, SIDE WINDOW, REAR LH | ||||
| 62714-95707 |
CM36,KM36..LHD..VSG *TT,T=4.0 |
1 | ||
| 62714-95706 |
CM36,KM36..LHD..VSG *TEM,T=4.0 |
1 | ||
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95701 |
CM36..SRF..05S;KM37,YM30,35..VSG;CM36,KM36..MRF..(4H,5H);KM36..VSG..SRF..(4H,5F) *TT,T=3.5 |
1 | ||
| 62715-95700 |
CM36,KM36,37,YM30,35..VSG *TEM,T=3.5 |
1 | ||
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95701 |
CM36..SRF..05S;KM37,YM30,35..VSG;CM36,KM36..MRF..(4H,5H);KM36..VSG..SRF..(4H,5F) *TT,T=3.5 |
1 | ||
| 62715-95700 |
CM36,KM36,37,YM30,35..VSG *TEM,T=3.5 |
1 | ||
| 62716A - GLASS, SIDE REAR WINDOW, LH | ||||
| 62716-95700 |
CM36,KM36,YM3#..VSG *TEM,T=3.5 |
1 | ||
| 62716-95701 |
YM30,35..VSG;CM36..SRF..05S;CM36,KM36..MRF..(4H,5H);KM36..VSG..SRF..(4H,5F) *TT,T=3.5 |
1 | ||
| 62719A - PACKING, SIDE FRONT WINDOW, UPPER | ||||
| 62719-95701 |
CM36,KM3#,YM3#..VSG |
3 | ||
| 62719C - PACKING, SIDE FRONT WINDOW | ||||
| 62719-95701 |
CM36,KM3#,YM3#..VSG |
3 | ||
| 62743B - WEATHERSTRIP, SIDE REAR WINDOW | ||||
| 62743-95702 |
CM36,KM3#,YM30,35..VSG |
1 | ||
| 62743B - WEATHERSTRIP, SIDE REAR WINDOW | ||||
| 62743-95702 |
CM36,KM3#,YM30,35..VSG |
1 | ||
| 62743C - WEATHERSTRIP, SIDE REAR WINDOW | ||||
| 62743-95702 |
CM36,KM36,YM3#..VSG |
1 | ||
| 62749A - SEAL, SIDE WINDOW, UPPER | ||||
| 62749-95702 |
CM36,KM3#..LHD..VSG |
1 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95704 |
CM36,KM3#,YM3#..VSG |
1 | ||
| 62749D - SEAL, SIDE WINDOW FLAME | ||||
| 62749-95704 |
CM36,KM3#,YM3#..VSG |
1 | ||
| 62749E - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95701 |
CM36,KM3#..LHD..VSG |
1 | ||
| 62751 - STOP, SIDE WINDOW FIX GLASS | ||||
| 62751-95661 |
CM36,KM36,YM35..VSG |
1 | ||
| 62751C - STOP, SIDE WINDOW FIX GLASS | ||||
| 62751-95661 |
CM36,KM36,YM35..VSG |
1 | ||
| 62783A - SASH, SIDE WINDOW, CENTER | ||||
| 62783-95700 |
CM36,KM3#,YM3#..VSG |
1 | ||
| 62783D - SASH, SIDE WINDOW, CENTER | ||||
| 62783-95700 |
CM36,KM3#,YM3#..VSG |
1 | ||
| 62792A - PACKING, SIDE WINDOW LOCK, RH | ||||
| 62792-95A00 |
CM36,KM36,YM35..VSG |
1 | ||
| 62792C - PACKING, SIDE WINDOW LOCK, LH | ||||
| 62792-95A00 |
CM36,KM36,YM35..VSG |
1 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95704 |
CM36,KM36,YM35..VSG |
1 | ||
| 62793C - RETAINER, SIDE WINDOW LOCK, LH | ||||
| 62793-95704 |
CM36,KM36,YM35..VSG |
1 | ||
| 62897 - TUBE, SIDE WINDOW GUARD | ||||
| 62897-95703 |
CM36,KM36..LHD..VSG |
1 | ||
| 62898A - TUBE, SIDE WINDOW GUARD, LH | ||||
| 62898-95703 |
CM36,KM36..LHD..VSG |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
CM36,KM36,YM35..VSG |
1 | ||
| 62910J - LOCK ASSY, SIDE WINDOW, LH | ||||
| 62910-95702 |
CM36,KM36,YM35..VSG |
1 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90158-60009 | ||||
| 90159-60010 | ||||
| 90159-60120 | ||||
| 90164-40091 | ||||
| 90202-11001 | ||||
| 90385-11005 | ||||
| 93219-84008 | ||||
