KM36LV-JR (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

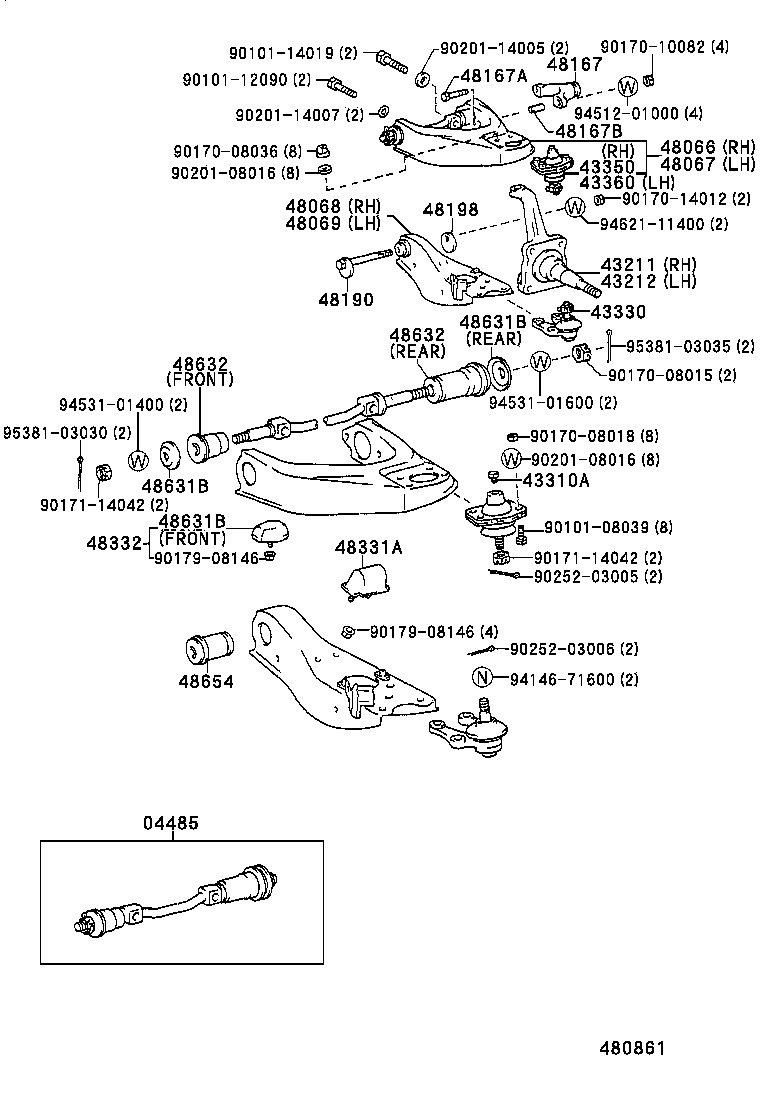

Click highlighted areas on diagram

diagram 04485 43211 43212 43310A 43330 43350 43360 48066 48067 48068 48069 48167 48167A 48167B 48190 48198 48331A 48332 48631B 48631B 48631B 48632 48632 48654 9010108039 9010112090 9010114019 9017008015 9017008018 9017008036 9017010082 9017014012 9017114042 9017114042 9017908146 9017908146 9020108016 9020108016 9020114005 9020114007 9025203005 9025203006 9414671600 9451201000 9453101400 9453101600 9462111400 9538103030 9538103035
Part # Description Qty Price
04485 - SHAFT KIT, UPPER SUSPENSION ARM
04485-28020

CM36,KM3#,YM3#

 2
43211 - KNUCKLE, STEERING, RH
43211-28021

CM36,KM3#,YM3#

 1
43212 - KNUCKLE, STEERING, LH
43211-28021

CM36,KM3#,YM3#

 1
43310A - PLUG (FOR BALL JOINT)
90345-06014

CM36,KM3#,YM3#

 2
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29175

CM36,KM3#,YM3#

 2
43350 - JOINT ASSY, FRONT UPPER BALL, RH
43350-29036

CM36,KM3#,YM3#

 1
43350-29076

CM36,KM3#,YM3#

 1
43360 - JOINT ASSY, FRONT UPPER BALL, LH
43360-29056

CM36,KM3#,YM3#

 1
43350-29076

CM36,KM3#,YM3#

 1
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48610-28012

CM36,KM3#,YM3#

 1
48610-28013

CM36,KM3#,YM3#

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48630-28013

CM36,KM3#,YM3#

 1
48630-28012

CM36,KM3#,YM3#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-28040

CM36,KM3#,YM3#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-28040

CM36,KM3#,YM3#

 1
48167 - ARM, TORQUE
48106-28010

CM36,KM3#,YM3#

 2
48167A - BOLT(FOR TORQUE ARM SETTING)
90101-10177

CM36,KM3#,YM3#

 4
91121-71085

CM36,KM3#,YM3#

 4
48167B - TUBE(FOR TORQUE ARM SETTING BOLT)
90440-17029

CM36,KM3#,YM3#

 2
48190 - CAM ASSY, CAMBER ADJUST
48190-27020

CM36,KM3#,YM3#

 2
48190-27010

CM36,KM3#,YM3#

 2
48198 - CAM, CAMBER ADJUST, NO.2
48198-27010

CM36,KM3#,YM3#

 2
48331A - BUMPER, FRONT SPRING, NO.1
48331-27050

CM36,KM3#,YM31..GEN

 2
48332 - BUMPER, FRONT SPRING, NO.2
48305-30030

CM36,KM3#,YM3#

 2
48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
90948-02048

CM36,KM3#,YM3#

REAR

 2
90948-02049

CM36,KM3#,YM3#

FRONT

 2
48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
90948-02048

CM36,KM3#,YM3#

REAR

 2
90948-02049

CM36,KM3#,YM3#

FRONT

 2
48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
90948-02048

CM36,KM3#,YM3#

REAR

 2
90948-02049

CM36,KM3#,YM3#

FRONT

 2
48632 - BUSH, UPPER ARM
48632-27010

CM36,KM3#,YM3#

FRONT

 2
48635-28010

CM36,KM3#,YM3#

REAR

 2
48632 - BUSH, UPPER ARM
48632-27010

CM36,KM3#,YM3#

FRONT

 2
48635-28010

CM36,KM3#,YM3#

REAR

 2
48654 - BUSH, LOWER ARM
48061-27011

CM36,KM3#,YM3#

 2
Common parts
90101-08039
90101-12090
90101-14019
90170-08015
90170-08018
90170-08036
90170-10082
90170-14012
90171-14042
90179-08146
90201-08016
90201-14005
90201-14007
90252-03005
90252-03006
94146-71600
94512-01000
94531-01400
94531-01600
94621-11400
95381-03030
95381-03035
