KM36LV-JR (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45611 45611A 45612 45619 9017014012 9017014012 9017014012 9025203006 9025203006 9453101000
Part # Description Qty Price

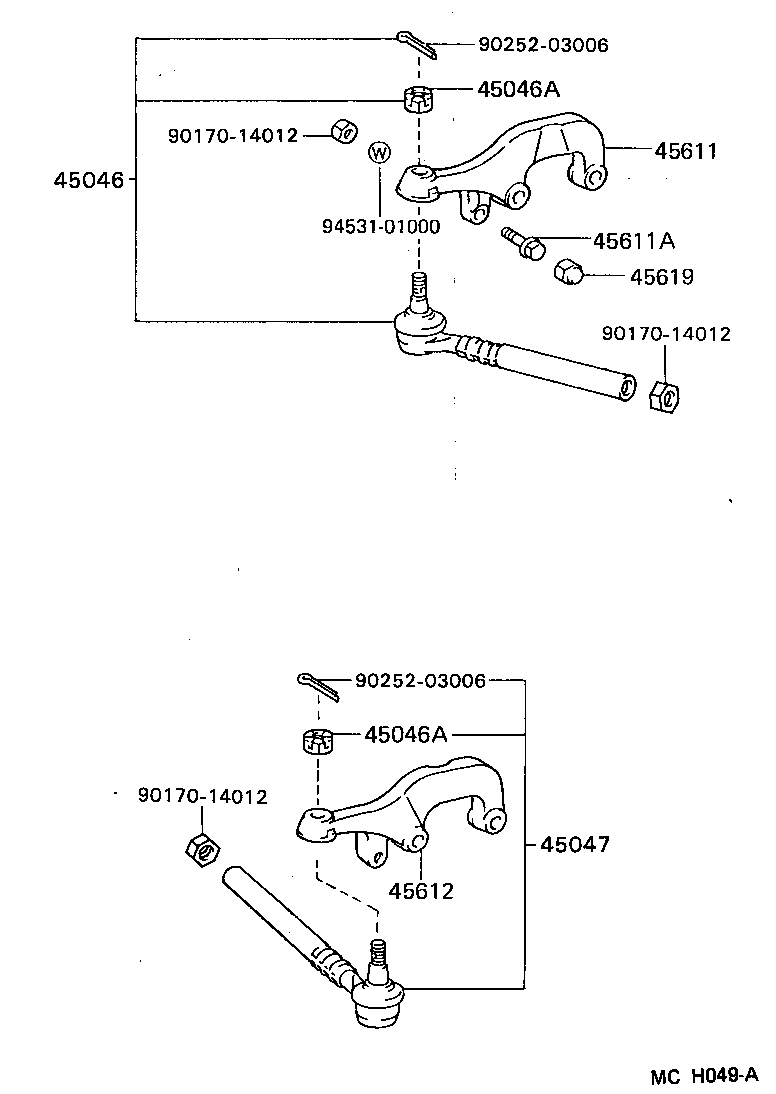

45046 - END SUB-ASSY, TIE ROD, RH
45046-29185

CM36,KM3#,YM3#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

CM36,KM3#,YM3#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

CM36,KM3#,YM3#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29185

CM36,KM3#,YM3#

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-28030

CM36,KM3#,YM3#

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10032

CM36,KM3#,YM3#

 2
45612 - ARM, STEERING KNUCKLE, LH
45612-28030

CM36,KM3#,YM3#

 1
45619 - COVER, KNUCKLE STOPPER
45619-14020

CM36,KM3#,YM3#

 2
Common parts
90170-14012
90252-03006
94531-01000

(8808- )LHD

Click highlighted areas on diagram

MANUAL STEERING

diagram 45222 45501 45501A 45503 45503 45504A 45509 45510 45514 45515 45516 45517 45521 45522 45523A 45524 45524A 45535 45535A 45535A 45535B 45535B 45536 45537A 45537A 45543A 45544A 45545 45545A 9011908143 9011912084
Part # Description Qty Price

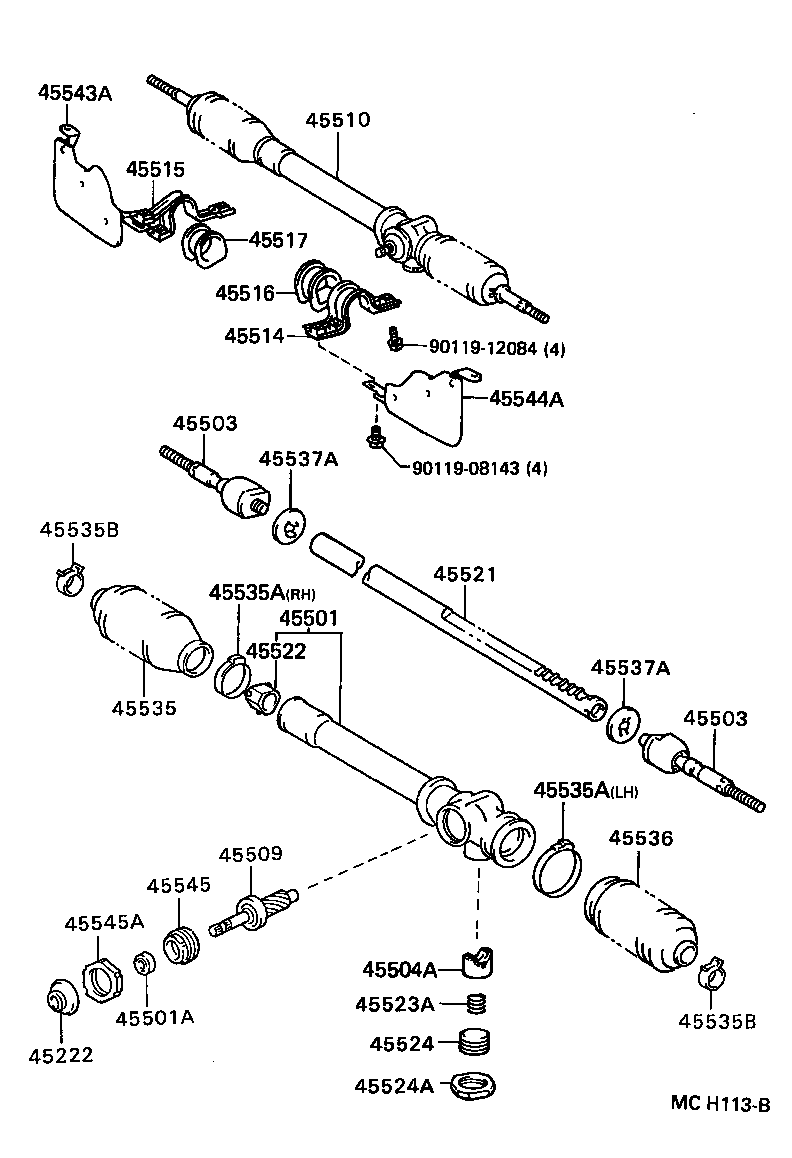

45222 - COVER, STEERING GEAR DUST
45222-27020

CM36,KM3#,YM3#

 1
45501 - HOUSING SUB-ASSY, STEERING RACK
45501-27020

CM36,KM3#..LHD

 1
45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
90311-15002

CM36,KM3#,YM3#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-29215

CM36,KM3#,YM3#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-29215

CM36,KM3#,YM3#

 2
45504A - GUIDE SUB-ASSY, RACK
45504-27010

CM36,KM3#,YM3#

 1
45509 - PINION SUB-ASSY, STEERING
45509-27020

CM36,KM3#..LHD

 1
45510 - GEAR ASSY, STEERING
45510-27040

CM36,KM3#..LHD

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-28020

CM36,KM3#,YM3#

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-28020

CM36,KM3#,YM3#

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-27010

CM36,KM3#,YM3#

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-27010

CM36,KM3#,YM3#

 1
45521 - RACK, STEERING
45521-27020

CM36,KM3#..LHD

 1
45522 - BUSH, STEERING RACK
45522-27010

CM36,KM3#,YM3#

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-23075

CM36,KM3#,YM3#

 1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-16030

CM36,KM3#,YM3#

 1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-36002

CM36,KM3#,YM3#

 1
45535 - BOOT, STEERING RACK, NO.1
45535-27020

CM36,KM3#,YM3#

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-42001

CM36,KM3#,YM3#

BOOT NO.1 SIDE

 1
90460-56001

CM36,KM3#,YM3#

BOOT NO.2 SIDE

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-42001

CM36,KM3#,YM3#

BOOT NO.1 SIDE

 1
90460-56001

CM36,KM3#,YM3#

BOOT NO.2 SIDE

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-15017

CM36,KM3#,YM3#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-15017

CM36,KM3#,YM3#

 2
45536 - BOOT, STEERING RACK, NO.2
45536-27020

CM36,KM3#,YM3#

 1
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14005

CM36,KM3#,YM3#

 2
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14005

CM36,KM3#,YM3#

 2
45543A - PROTECTOR, STEERING RACK BOOT, RH
45057-95701

CM36,KM3#..LHD

 1
45544A - PROTECTOR, STEERING RACK BOOT, LH
45058-95701

CM36,KM3#..LHD

 1
45545 - SCREW, PINION BEARING ADJUSTING
45545-27010

CM36,KM3#,YM3#

 1
45545A - NUT(FOR PINION BEARING ADJUSTING SCREW)
90179-38001

CM36,KM3#,YM3#

 1
Common parts
90119-08143
90119-12084
