KM36LV-JR (1985)
Toyota Liteace

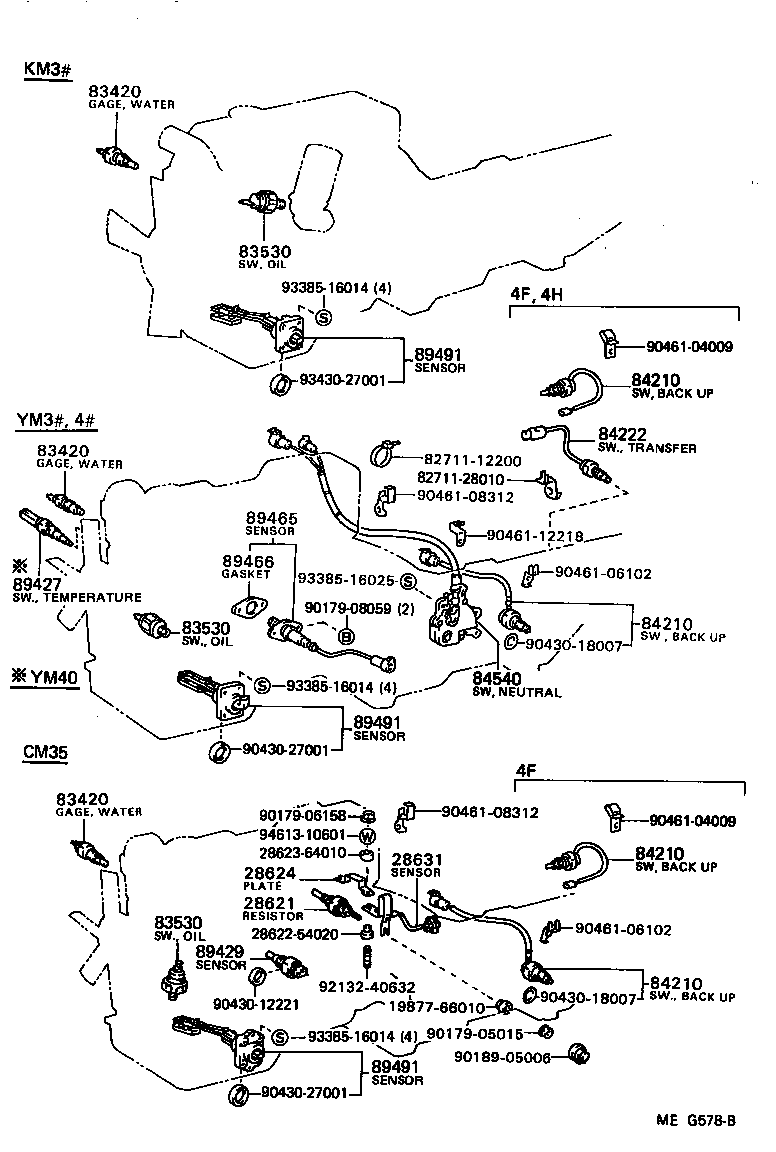

ILLUST NO. 1 OF 6(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
KM36 |
1 | ||
| 83530-14030 |
YM3#,4# |
1 | ||
| 83530-30080 |
KM3# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
KM36 |
1 | ||
| 83530-14030 |
YM3#,4# |
1 | ||
| 83530-30080 |
KM3# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
KM36 |
1 | ||
| 83530-14030 |
YM3#,4# |
1 | ||
| 83530-30080 |
KM3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
CM35,KM3#..4F,4H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
CM35,KM3#..4F,4H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
CM35,KM3#..4F,4H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26030 |
CM35,KM3#..4F,4H |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-64010 | ||||
| 82711-12200 | ||||
| 82711-28010 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90179-08059 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-04009 | ||||
| 90461-06102 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 92132-40632 | ||||
| 93385-16014 | ||||
| 93385-16025 | ||||
| 93430-27001 | ||||
| 94613-10601 | ||||

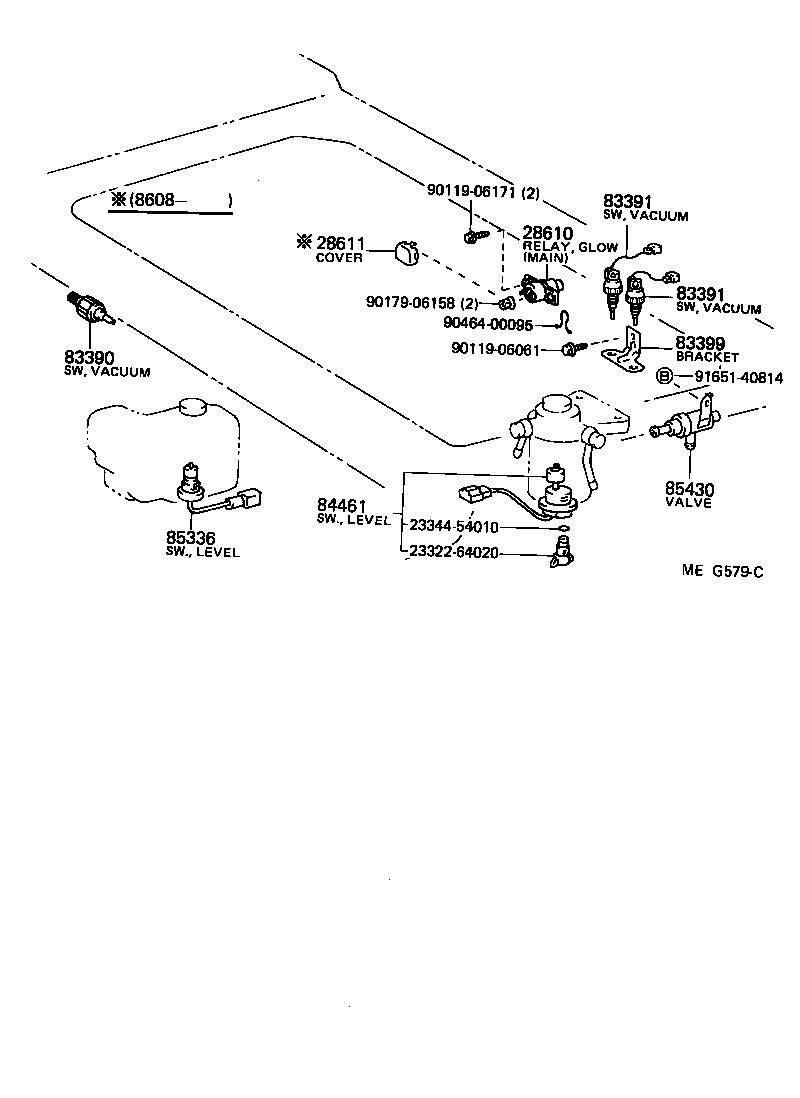

ILLUST NO. 2 OF 6(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-73010 |
YM30,35,4# |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 90119-06061 | ||||
| 90119-06171 | ||||
| 90179-06158 | ||||
| 90464-00095 | ||||
| 91651-40814 | ||||

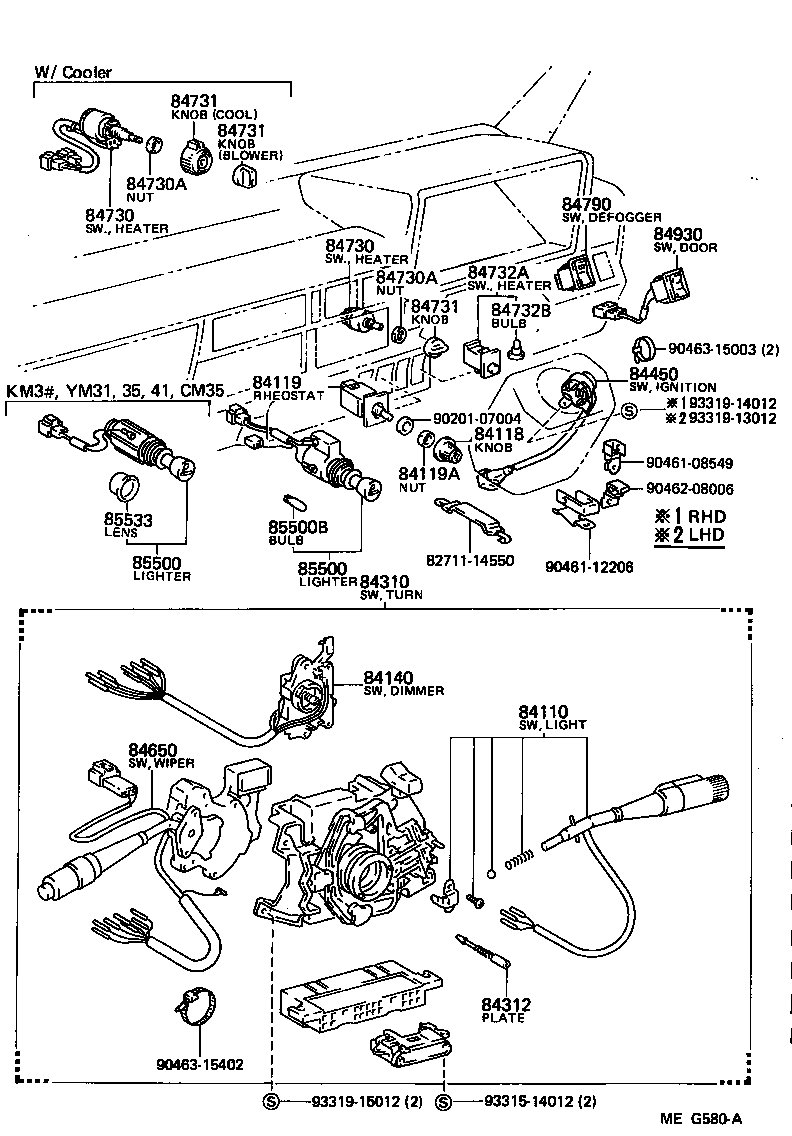

ILLUST NO. 3 OF 6(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29595 |
CM35,KM3#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-27030 |
CM35,KM3#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-27130 |
CM35,KM3#..LHD |
1 | ||
| 84310-27180 |
CM35,KM3#..LHD W/*IW & *RW |
1 | ||
| 84310-27150 |
CM35,KM3#..LHD W/*RW |
1 | ||
| 84310-27160 |
CM35,KM3#..LHD W/*IW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27090 |
CM35,KM3#..LHD..(4H,5H) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-27120 |
CM35,KM3#..LHD |
1 | ||
| 84652-27140 |
CM35,KM3#..LHD W/*IW |
1 | ||
| 84652-27130 |
CM35,KM3#..LHD W/*RW |
1 | ||
| 84652-27160 |
CM35,KM3#..LHD W/*IW & *RW |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-95702 |
KM36..4H;CM3#,KM37 W/*AIC |
1 | ||
| 84732-12020 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-95702 |
KM36..4H;CM3#,KM37 W/*AIC |
1 | ||
| 84732-12020 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
CM3#,KM3#,YM3#,4# BLOWER |
1 | ||
| 84731-12032 |
KM36..4H;CM3#,KM37 W/*AIC,COOL |
1 | ||
| 84731-12032 |
YM30,35,4# W/*AIC,COOL |
1 | ||
| 84731-20030 |
YM30,35,4# W/*AIC,BLOWER |
1 | ||
| 84731-20030 |
KM36..4H;CM3#,KM37 W/*AIC,BLOWER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
CM3#,KM3#,YM3#,4# BLOWER |
1 | ||
| 84731-12032 |
KM36..4H;CM3#,KM37 W/*AIC,COOL |
1 | ||
| 84731-12032 |
YM30,35,4# W/*AIC,COOL |
1 | ||
| 84731-20030 |
YM30,35,4# W/*AIC,BLOWER |
1 | ||
| 84731-20030 |
KM36..4H;CM3#,KM37 W/*AIC,BLOWER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
CM3#,KM3#,YM3#,4# BLOWER |
1 | ||
| 84731-12032 |
KM36..4H;CM3#,KM37 W/*AIC,COOL |
1 | ||
| 84731-12032 |
YM30,35,4# W/*AIC,COOL |
1 | ||
| 84731-20030 |
YM30,35,4# W/*AIC,BLOWER |
1 | ||
| 84731-20030 |
KM36..4H;CM3#,KM37 W/*AIC,BLOWER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32060 |
CM35,YM3#,4# |
1 | ||
| 84790-32060 |
KM3#..4H |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95712 |
CM35,KM3#..LHD |
1 | ||
| 85500-95710 |
CM35,KM3#,YM31,35,41 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95712 |
CM35,KM3#..LHD |
1 | ||
| 85500-95710 |
CM35,KM3#,YM31,35,41 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-95700 |
CM3#,KM3#,YM31,35,41 |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 90201-07004 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

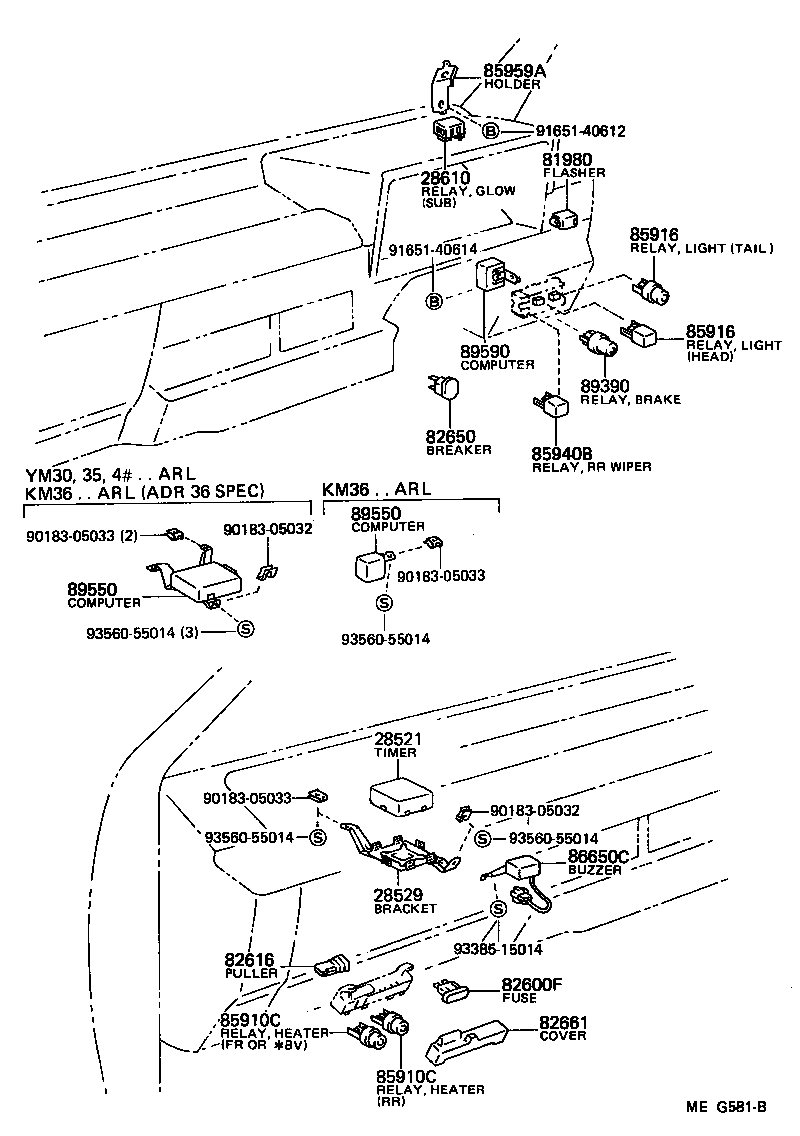

ILLUST NO. 4 OF 6(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 81980-22070 |
CM35,KM36,YM3# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CM3#,KM3#,YM3#,4# 10A,10A |
5 | ||
| 90982-09004 |
CM35,KM3#,YM3#,4# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CM3#,KM3#,YM3#,4# 15A,15A |
7 | ||
| 90982-07011 |
CM35,KM3#,YM3#,4# 30A,GREEN,30A |
1 | ||
| 90982-09005 |
CM3#,KM3#,YM3#,4# 7.5A,7.5A |
8 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM35,KM3#,YM3#,4# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82611-95711 |
CM35,KM3#..LHD |
1 | ||
| 82611-95706 |
CM35,KM36..LHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM3#,KM3#,YM3#,4# FR HEATER OR W/*BV |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM3#,KM3#,YM3#,4# FR HEATER OR W/*BV |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CM3#,KM3#,YM3#,4# TAIL |
1 | ||
| 90987-02006 |
CM3#,KM3#,YM3#,4# HEAD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CM3#,KM3#,YM3#,4# TAIL |
1 | ||
| 90987-02006 |
CM3#,KM3#,YM3#,4# HEAD |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85913-30020 |
CM3#,KM3#,YM3#,4# |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 90183-05033 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93385-15014 | ||||
| 93560-55014 | ||||

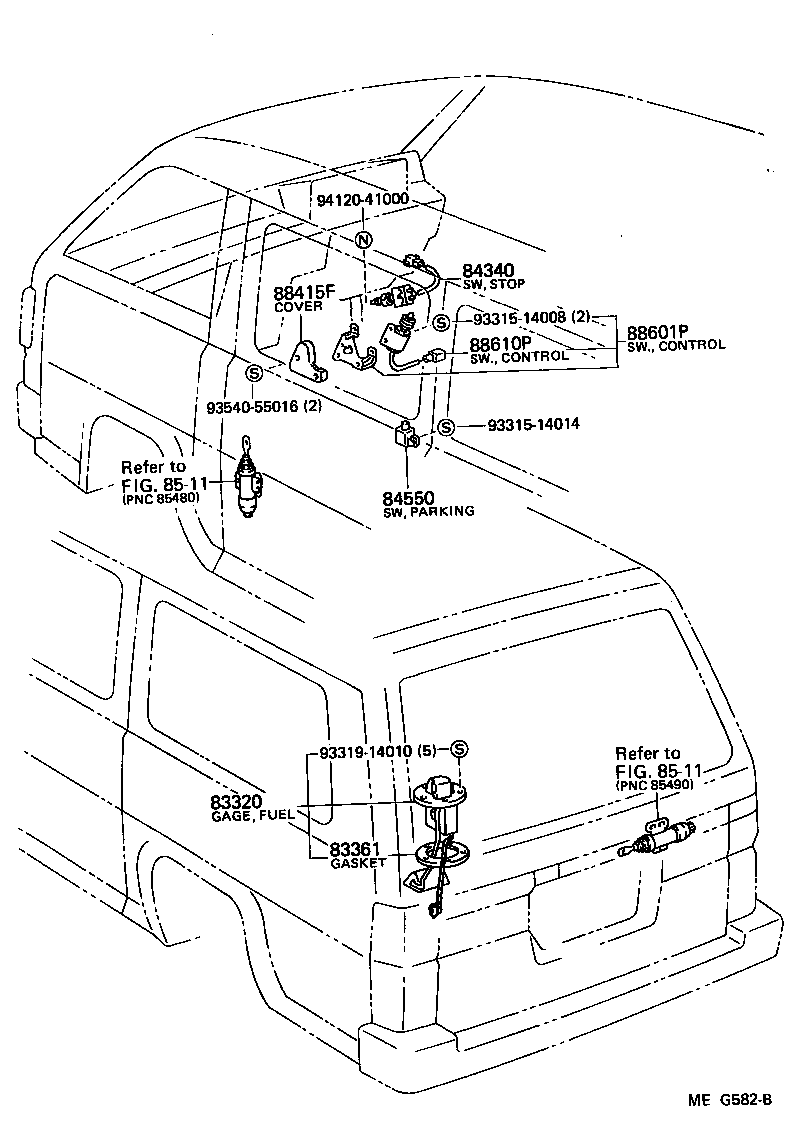

ILLUST NO. 5 OF 6(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80043 |
CM3#,KM3#,YM3# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84380-35010 |
CM35,KM3#..LHD |
1 | ||
| Common parts | ||||
| 93315-14008 | ||||
| 93315-14014 | ||||
| 93319-14010 | ||||
| 93540-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||

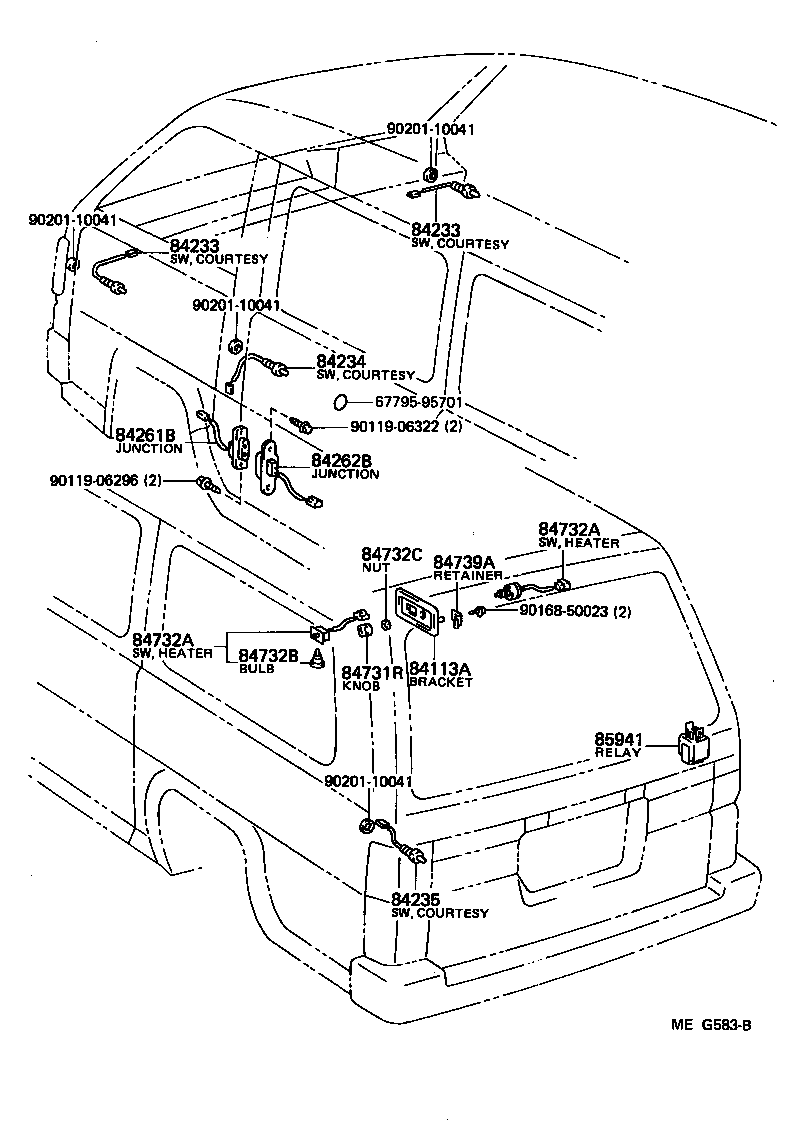

ILLUST NO. 6 OF 6(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM35,KM3#,YM3#,4# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM35,KM3#,YM3#,4# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95702 |
CM3#,KM36,YM30,31,4#..05S,06S,08S |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-95703 |
CM3#,KM36,YM30,31..05S,06S,08S |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 85941-95700 |
CM3#,KM3#,YM3#,4# |
1 | ||
| Common parts | ||||
| 67795-95701 | ||||
| 90119-06296 | ||||
| 90119-06322 | ||||
| 90168-50023 | ||||
| 90201-10041 | ||||
