KM36LV-JR (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

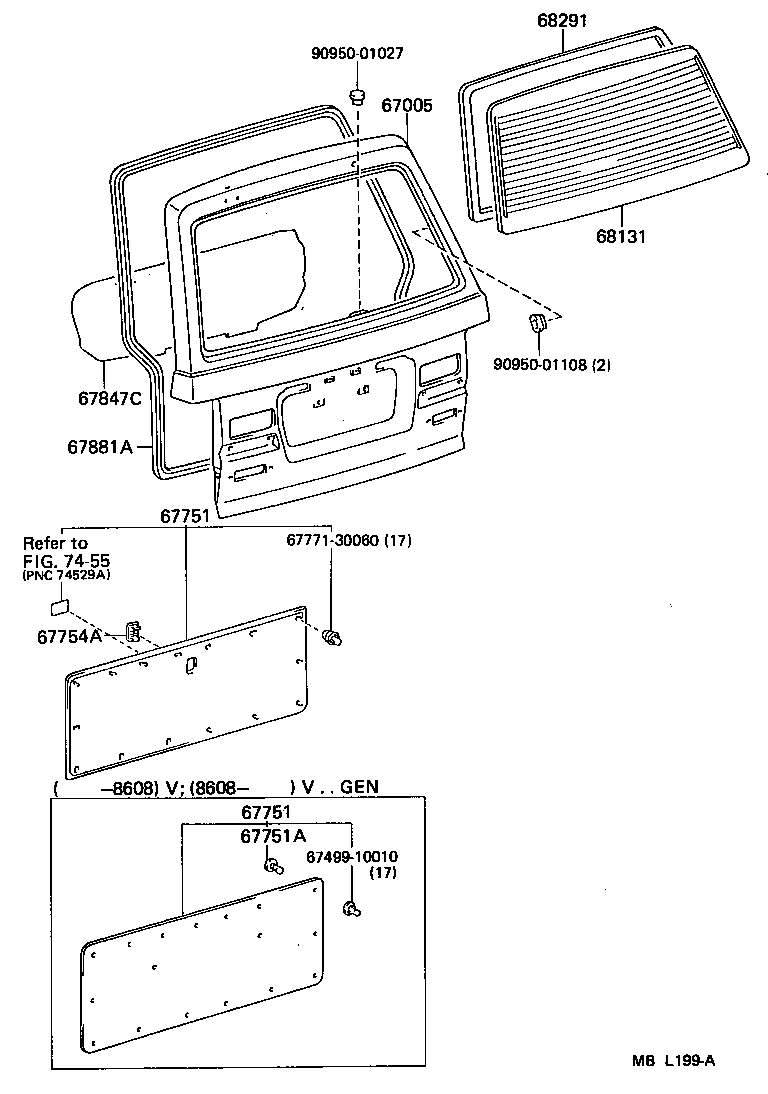

Click highlighted areas on diagram

diagram 67005 6749910010 67751 67751 67751A 67754A 6777130060 67847C 67881A 68131 68291 7455 9095001027 9095001108
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95784

KM3#..SRF

W/RR WIPER

 1
67005-95G02

CM3#..SRF;KM36..DLX;KM36..SRF..4H

 1
67005-95784

CM35,KM36..LHD

W/RR WIPER

 1
67751 - BOARD, BACK DOOR TRIM
67750-9570206

CM3#,KM36..STD..GEN

BROWN,SABLE

 1
67750-9570606

CM35,KM36,YM35,41

W/RR WIPER,BROWN,BROWN

 1
67750-9570606

CM3#,KM36..STD..GEN

W/RR WIPER,BROWN,BROWN

 1
67751 - BOARD, BACK DOOR TRIM
67750-9570206

CM3#,KM36..STD..GEN

BROWN,SABLE

 1
67750-9570606

CM35,KM36,YM35,41

W/RR WIPER,BROWN,BROWN

 1
67750-9570606

CM3#,KM36..STD..GEN

W/RR WIPER,BROWN,BROWN

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0705406

CM3#,KM36,YM35

BROWN,SABLE

 17
90467-0703716

CM35,KM36,YM31,35

BROWN,BROWN

 17
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95700

KM37,YM30,31,4#

 1
67847-95701

CM3#,KM3#..GEN

 1
67847-95700

CM3#,KM36,YM35

W/RR WIPER

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-95702

CM3#,KM3#,YM31..SRF

 1
68131 - GLASS, BACK DOOR
68131-95712

KM36..DLX;KM36..SRF..4H;CM35,YM31..SRF

*EHT,T=4.0,*EHT,T=4.0

 1
68131-95713

CM35..05S;KM36..06S..GEN

*EHTT,T=4.0,*EHTT,T=4.0

 1
68131-95714

CM3#,KM3#..SRF

*TEM,T=4.0,*TEM,T=4.0

 1
68131-95715

CM35..05S;KM36..06S..GEN

*TT,T=4.0,*TT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95706

CM3#,KM36,YM31..SRF

 1
Common parts
67499-10010
67771-30060
90950-01027
90950-01108
Linked diagrams
7455
