KM20RV-JRZQ (1982)

Toyota Liteace

Production Apr 1982 - Aug 1985
Engine 4K 4KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210) ; (8210- )LHD

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87138 87174A 87174A 87174B 87174B 87188 87230A 87245F 87246F 9009902134 9009902135 9009902210 9009905164 9011906191 9017906115 9017908123 9095001006 9095001006 9095001047 9161140816 9611110250 9611110250
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95401

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87104-95701

CM20,KM20,YM2#..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12030

KM20..RHD

 1
87105-16020

CM20,KM20,YM21..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95400

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87107-95701

CM20,KM20,YM2#..RHD

 1
87110 - HEATER ASSY
87110-95700

KM20..RHD..(ARL,GEN)

 1
87138 - RESISTOR, HEATER BLOWER
87138-95703

CM20,KM20,YM2#..RHD

 1
87138-87003

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87174A - GUIDE, AIR HEATER
87174-95010

KM20..RHD

 1
87174-95701

CM20,KM20,YM2#..RHD

 1
87174A - GUIDE, AIR HEATER
87174-95010

KM20..RHD

 1
87174-95701

CM20,KM20,YM2#..RHD

 1
87174B - GUIDE, AIR, NO.2
87175-95010

KM20..RHD

 1
87175-95701

CM20,KM20,YM2#..RHD

 1
87174B - GUIDE, AIR, NO.2
87175-95010

KM20..RHD

 1
87175-95701

CM20,KM20,YM2#..RHD

 1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87245F - HOSE, HEATER WATER, INLET F
99552-30075

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

*H,L=45

 1
87246F - HOSE, HEATER WATER, OUTLET F
99552-30075

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

*H,L=45

 1
Common parts
90099-02134
90099-02135
90099-02210
90099-05164
90119-06191
90179-06115
90179-08123
90950-01006
90950-01047
91611-40816
96111-10250

(7910-8210) ; (8210- )LHD

Click highlighted areas on diagram

diagram 87104 87105 87138 87174A 87174A 87174B 87174B 88910 9009905164 9011906191 9017906115 9017908123 9095001006 9095001006 9161140816
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95401

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87104-95701

CM20,KM20,YM2#..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12030

KM20..RHD

 1
87105-16020

CM20,KM20,YM21..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95703

CM20,KM20,YM2#..RHD

 1
87138-87003

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87174A - GUIDE, AIR HEATER
87174-95010

KM20..RHD

 1
87174-95701

CM20,KM20,YM2#..RHD

 1
87174A - GUIDE, AIR HEATER
87174-95010

KM20..RHD

 1
87174-95701

CM20,KM20,YM2#..RHD

 1
87174B - GUIDE, AIR, NO.2
87175-95010

KM20..RHD

 1
87175-95701

CM20,KM20,YM2#..RHD

 1
87174B - GUIDE, AIR, NO.2
87175-95010

KM20..RHD

 1
87175-95701

CM20,KM20,YM2#..RHD

 1
Common parts
90099-05164
90119-06191
90179-06115
90179-08123
90950-01006
91611-40816

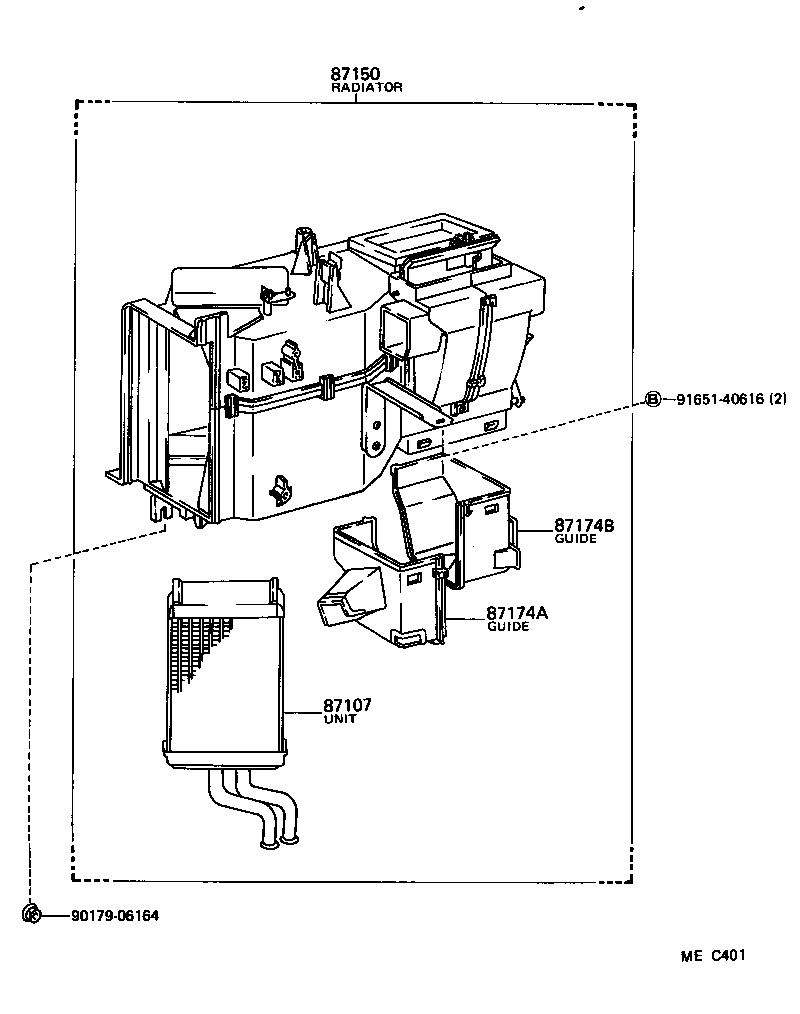

(8210- )RHD

Click highlighted areas on diagram

diagram 87107 87150 87174A 87174B 9017906164 9165140616
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95400

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87107-95701

CM20,KM20,YM2#..RHD

 1
87150 - RADIATOR ASSY, HEATER
87150-95700

CM20,KM20,YM2#..RHD

 1
87174A - GUIDE, AIR HEATER
87174-95010

KM20..RHD

 1
87174-95701

CM20,KM20,YM2#..RHD

 1
87174B - GUIDE, AIR, NO.2
87175-95010

KM20..RHD

 1
87175-95701

CM20,KM20,YM2#..RHD

 1
Common parts
90179-06164
91651-40616

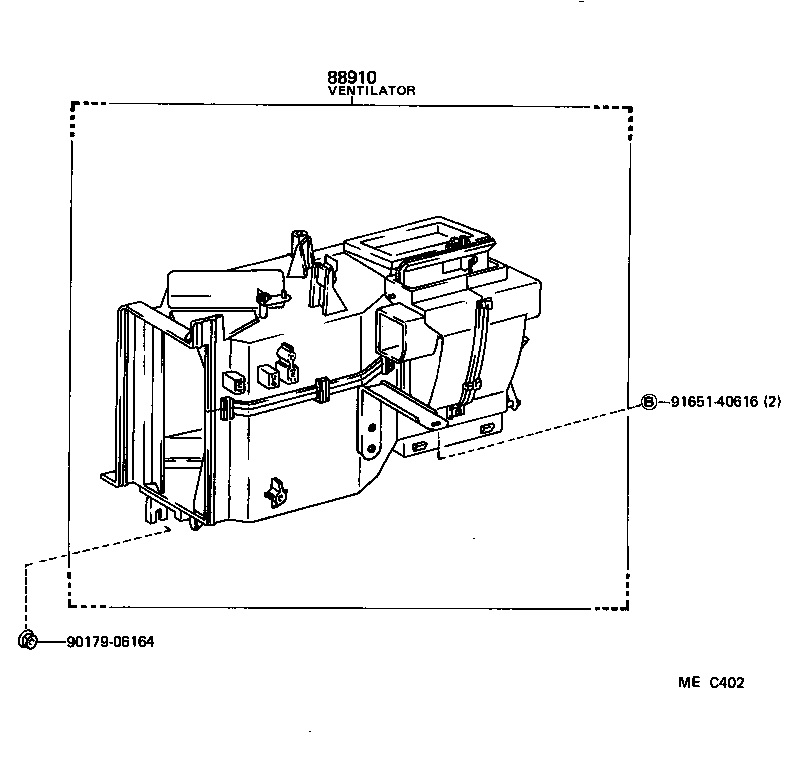

(8210- )RHD

Click highlighted areas on diagram

diagram 88910 9017906164 9165140616
Part # Description Qty Price
Common parts
90179-06164
91651-40616

(8210- )RHD

Click highlighted areas on diagram

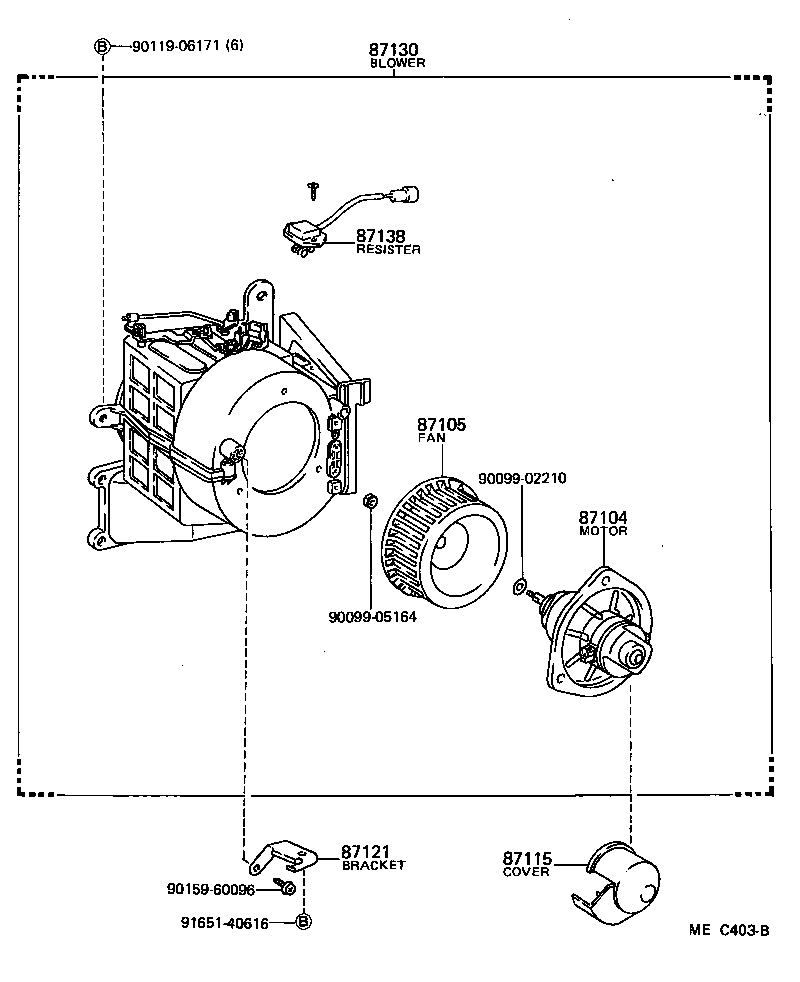

diagram 87104 87105 87115 87121 87130 87138 9009902210 9009905164 9011906171 9015960096 9165140616
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95401

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
87104-95701

CM20,KM20,YM2#..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12030

KM20..RHD

 1
87105-16020

CM20,KM20,YM21..RHD

 1
87115 - COVER, MOTOR
87137-95700

KM20,YM21..(05S,08S)..ARL

 1
87121 - BRACKET, HEATER, FRONT RH
87121-95702

CM20,KM20,YM2#..RHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-95700

CM20,KM20,YM2#..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95703

CM20,KM20,YM2#..RHD

 1
87138-87003

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
Common parts
90099-02210
90099-05164
90119-06171
90159-60096
91651-40616
