KM20RV-JRZQ (1982)
Toyota Liteace
Production
Apr 1982
-
Aug 1985
Engine
4K 4KC
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910-8210)RHD

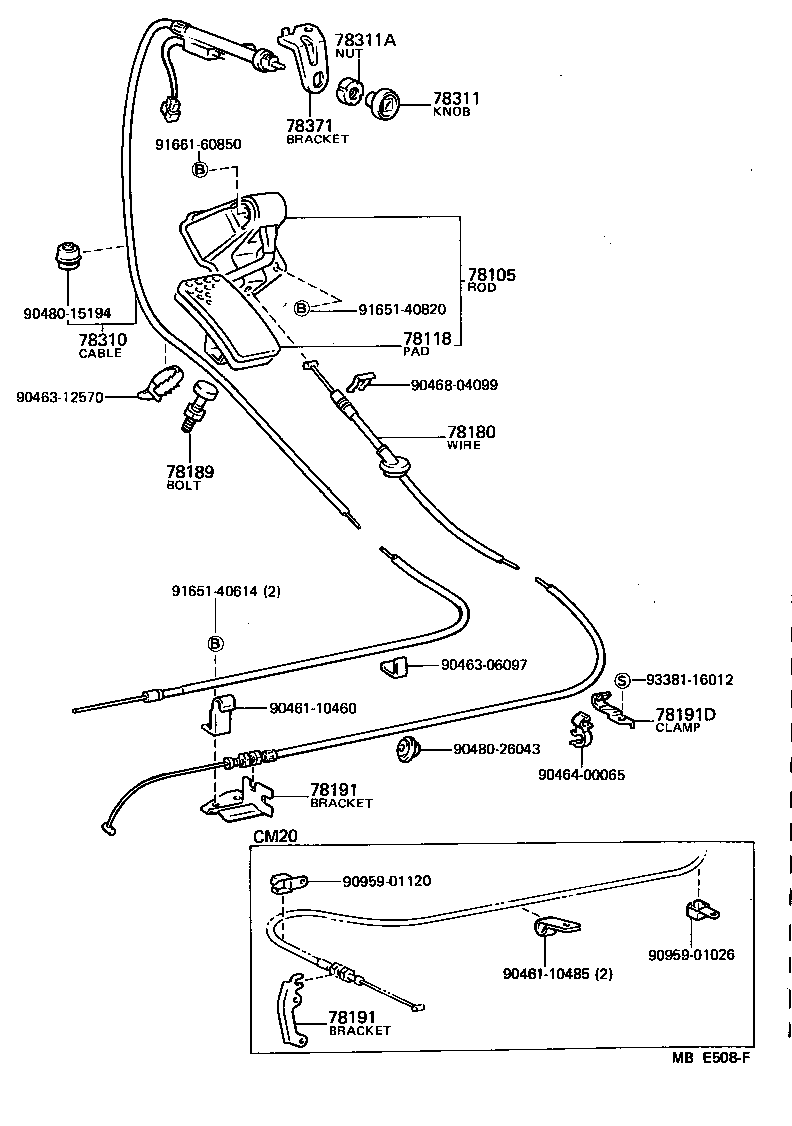

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78105-95700 |
CM20,KM20,YM2#..RHD..MTM |
1 | ||
| 78105-95700 |
KM20..RHD |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95700 |
CM20,KM20,YM2#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95710 |
KM20..RHD..(HRF,SRF) |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78107-95A00 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-95700 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-95705 |
KM20..RHD |
1 | ||
| 78301-95702 |
KM20..RHD W/O RR FOG LAMP |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-95705 |
KM20..RHD |
1 | ||
| 78301-95702 |
KM20..RHD W/O RR FOG LAMP |
1 | ||
| Common parts | ||||
| 45619-14010 | ||||
| 90461-10460 | ||||
| 90463-06097 | ||||
| 90463-12570 | ||||
| 90464-00200 | ||||
| 90468-06009 | ||||
| 90480-15001 | ||||
| 90480-26043 | ||||
| 91131-40835 | ||||
| 91651-40614 | ||||
| 91651-40820 | ||||
| 91661-60850 | ||||
| 94120-40800 | ||||
(8210- )RHD

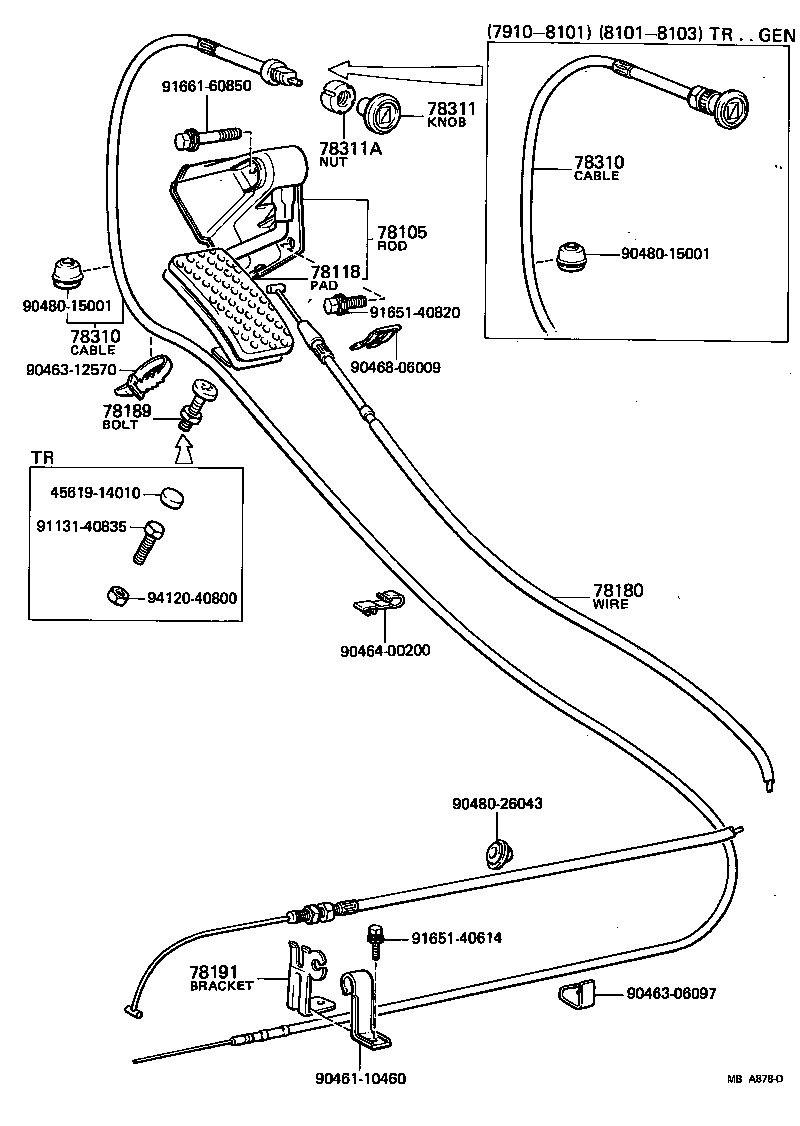

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78105-95700 |
CM20,KM20,YM2#..RHD..MTM |
1 | ||
| 78105-95700 |
KM20..RHD |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95700 |
CM20,KM20,YM2#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95710 |
KM20..RHD..(HRF,SRF) |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78107-95A00 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-95700 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-95700 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-95705 |
KM20..RHD |
1 | ||
| 78301-95702 |
KM20..RHD W/O RR FOG LAMP |
1 | ||
| 78371 - BRACKET, CHOKE CONTROL CABLE | ||||
| 78371-95700 |
KM20..RHD |
1 | ||
| Common parts | ||||
| 90461-10460 | ||||
| 90461-10485 | ||||
| 90463-06097 | ||||
| 90463-12570 | ||||
| 90464-00065 | ||||
| 90468-04099 | ||||
| 90480-15194 | ||||
| 90480-26043 | ||||
| 90959-01026 | ||||
| 90959-01120 | ||||
| 91651-40614 | ||||
| 91651-40820 | ||||
| 91661-60850 | ||||
| 93381-16012 | ||||
