KM20RV-JRZQ (1982)

Toyota Liteace

Production Apr 1982 - Aug 1985
Engine 4K 4KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)

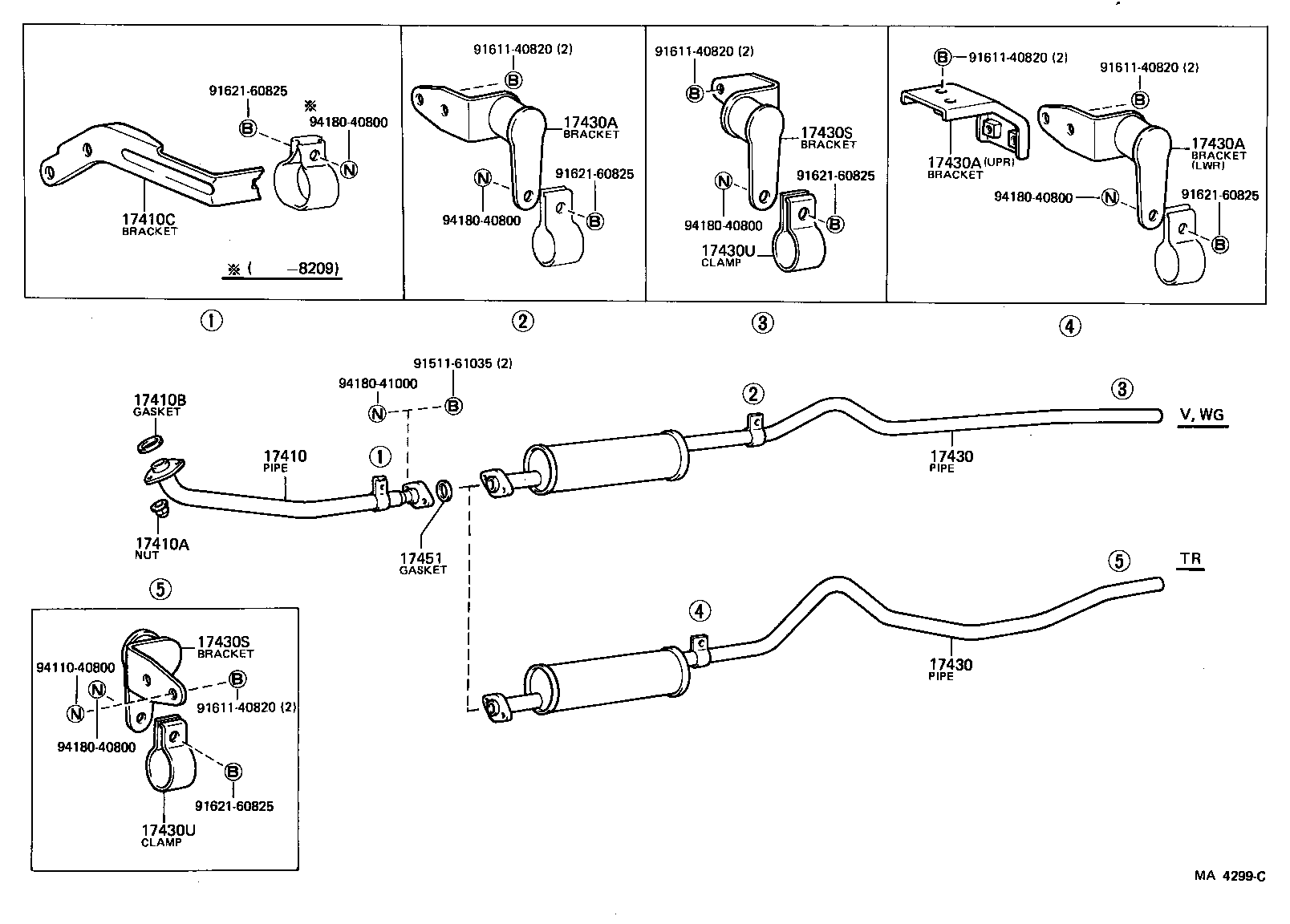

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430 17430A 17430A 17430A 17430S 17430S 17430U 17430U 17451 9151161035 9161140820 9161140820 9161140820 9161140820 9161140820 9162160825 9162160825 9162160825 9162160825 9162160825 9411040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-24070

4K..KM20

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

1C,4K,1Y,2YC..CM20,KM20,YM2#

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

4K..KM20

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-24150

4K..KM20

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-13070

4K..KM20..ARL

 1
17405-24081

4K..KM20..RHD

 1
17405-24080

4K..KM20..RHD..(HRF,SRF)

 1
17405-13071

4K..KM20..ARL

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-13070

4K..KM20..ARL

 1
17405-24081

4K..KM20..RHD

 1
17405-24080

4K..KM20..RHD..(HRF,SRF)

 1
17405-13071

4K..KM20..ARL

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4K..KM20

 1
17562-24120

4K..KM20..VSP..02S;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4K..KM20

 1
17562-24120

4K..KM20..VSP..02S;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4K..KM20

 1
17562-24120

4K..KM20..VSP..02S;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-24120

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
17563-24121

1C,4K,1Y,2YC..CM20,KM20,YM2#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-24120

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
17563-24121

1C,4K,1Y,2YC..CM20,KM20,YM2#

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
90461-23072

4K..KM20

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
90461-23072

4K..KM20

 1
17451 - GASKET, EXHAUST PIPE
90917-06001

1C,4K,1Y..CM20,KM20,YM20

 1
Common parts
91511-61035
91611-40820
91621-60825
94110-40800
94180-40800
94180-41000

(8210- )1C,4K

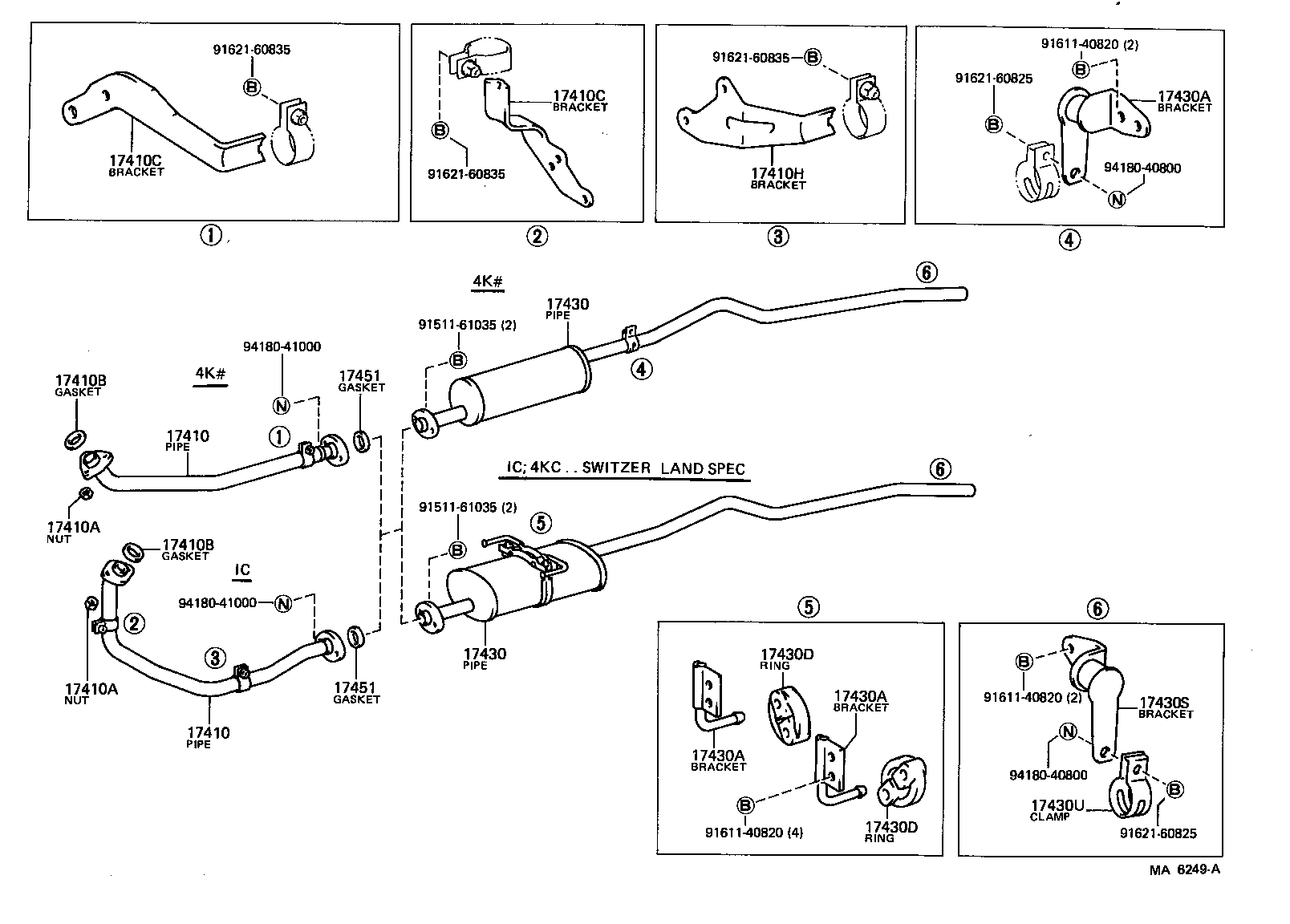

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17410H 17430 17430 17430A 17430A 17430A 17430D 17430D 17430S 17430U 17451 17451 9151161035 9151161035 9161140820 9161140820 9161140820 9162160825 9162160825 9162160835 9162160835 9162160835 9418040800 9418040800 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-24070

4K..KM20

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-24070

4K..KM20

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

1C,4K,1Y,2YC..CM20,KM20,YM2#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

1C,4K,1Y,2YC..CM20,KM20,YM2#

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

4K..KM20

 1
17410B - GASKET, EXHAUST PIPE
90917-06012

4K..KM20

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-24150

4K..KM20

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-24150

4K..KM20

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-13070

4K..KM20..ARL

 1
17405-24081

4K..KM20..RHD

 1
17405-24080

4K..KM20..RHD..(HRF,SRF)

 1
17405-13071

4K..KM20..ARL

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-13070

4K..KM20..ARL

 1
17405-24081

4K..KM20..RHD

 1
17405-24080

4K..KM20..RHD..(HRF,SRF)

 1
17405-13071

4K..KM20..ARL

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4K..KM20

 1
17562-24120

4K..KM20..VSP..02S;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4K..KM20

 1
17562-24120

4K..KM20..VSP..02S;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4K..KM20

 1
17562-24120

4K..KM20..VSP..02S;4K..KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-24120

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 1
17563-24121

1C,4K,1Y,2YC..CM20,KM20,YM2#

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
90461-23072

4K..KM20

 1
17451 - GASKET, EXHAUST PIPE
90917-06001

1C,4K,1Y..CM20,KM20,YM20

 1
17451 - GASKET, EXHAUST PIPE
90917-06001

1C,4K,1Y..CM20,KM20,YM20

 1
Common parts
91511-61035
91611-40820
91621-60825
91621-60835
94180-40800
94180-41000
