KM20RV-JRZBEQ (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K 4KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

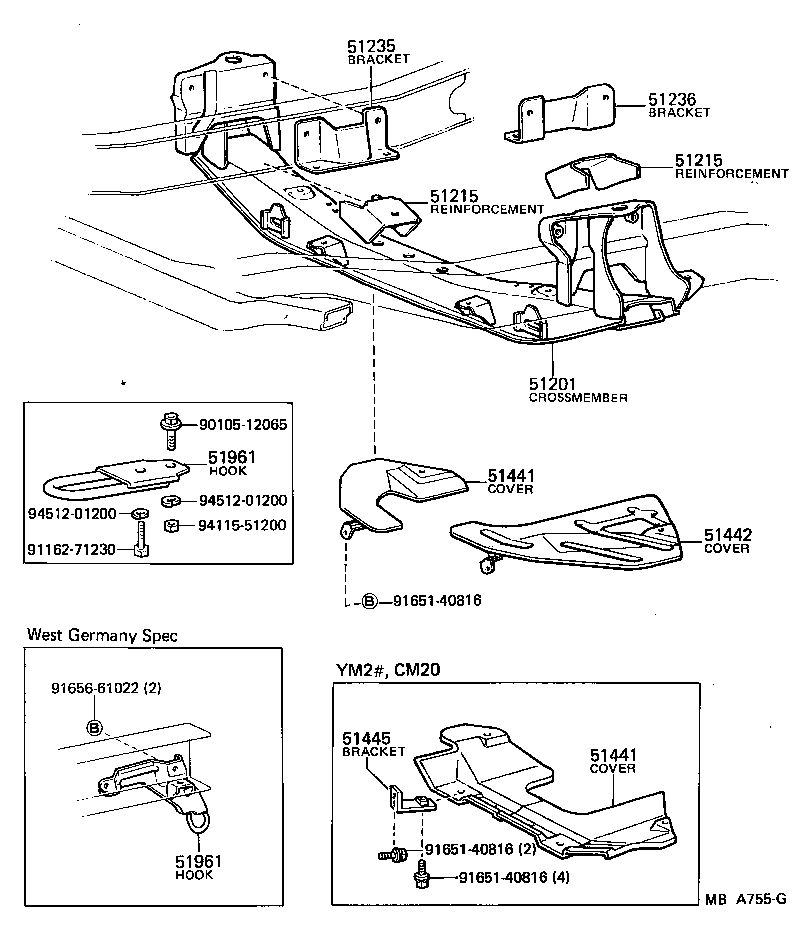

Click highlighted areas on diagram

diagram 51201 51215 51215 51235 51236 51441 51441 51442 51445 51961 51961 9010512065 9116271230 9165140816 9165140816 9165140816 9165661022 9411551200 9451201200 9451201200
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-27030

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
51203-27031

KM20

 1
51215 - REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER
51215-27040

CM20,KM20,YM2#

 2
51215 - REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER
51215-27040

CM20,KM20,YM2#

 2
51235 - BRACKET, FRONT SUSPENSION CROSSMEMBER, RH
51225-27030

CM20,KM20,YM2#..HRF,SRF

 1
51236 - BRACKET, FRONT SUSPENSION CROSSMEMBER, LH
51226-27030

CM20,KM20,YM2#..HRF,SRF

 1
51441 - COVER, ENGINE UNDER, NO.1
51408-27010

KM20..RHD

 1
51441 - COVER, ENGINE UNDER, NO.1
51408-27010

KM20..RHD

 1
51442 - COVER, ENGINE UNDER, NO.2
51409-27020

KM20..RHD

 1
Common parts
90105-12065
91162-71230
91651-40816
91656-61022
94115-51200
94512-01200
