KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

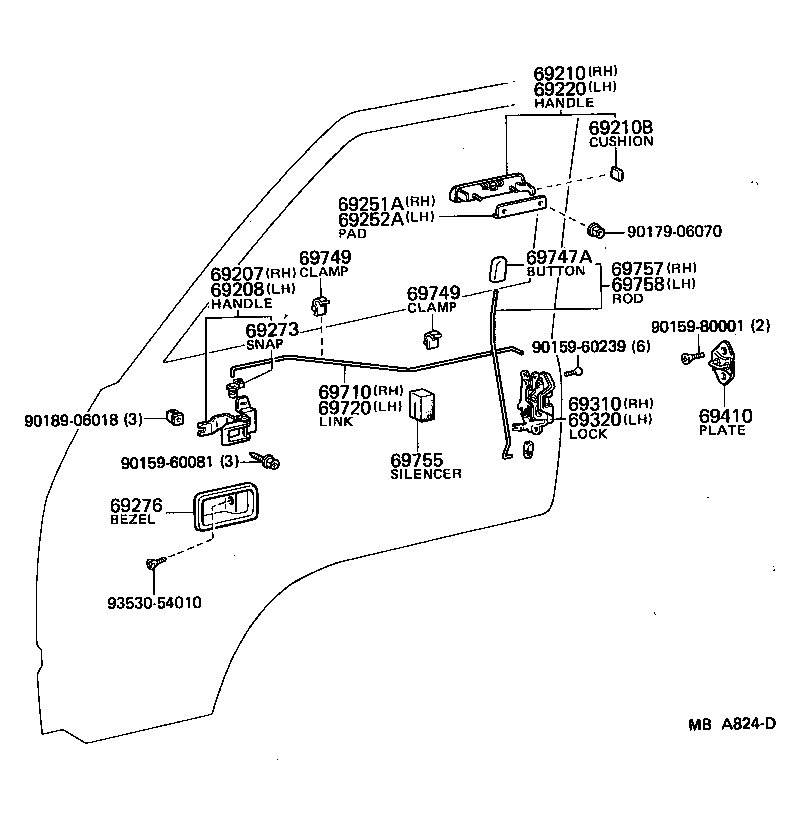

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69251A 69252A 69273 69276 69310 69320 69410 69710 69720 69747A 69749 69749 69755 69757 69758 9015960081 9015960239 9015980001 9017906070 9018906018 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-9570106

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-9570106

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-95011

CM20,KM20,YM2#

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69239-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95011

CM20,KM20,YM2#

 1
69251A - PAD, FRONT DOOR OUTSIDE HANDLE, NO.1 RH
69241-95010

CM20,KM20,YM2#

 1
69252A - PAD, FRONT DOOR OUTSIDE HANDLE, NO.1 LH
69241-95010

CM20,KM20,YM2#

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69279-16010

CM20,KM20,YM2#

LH

 1
69279-12010

CM20,KM20,YM2#

RH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-9570106

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95013

CM20,KM20,YM2#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-95015

CM20,KM20,YM2#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

CM20,KM20,YM2#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69715-95701

CM20,KM20,YM2#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69716-95701

CM20,KM20,YM2#

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-2002001

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BLACK,BLACK

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 4
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 4
69757 - ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH
69705-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
69758 - ROD, FRONT DOOR LOCKING CONTROL, NO.2 LH
69706-95700

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
Common parts
90159-60081
90159-60239
90159-80001
90179-06070
90189-06018
93530-54010
