KM20RV-JRZBE (1979)
Toyota Liteace
(7910- )RHD..HRF,SRF..GEN

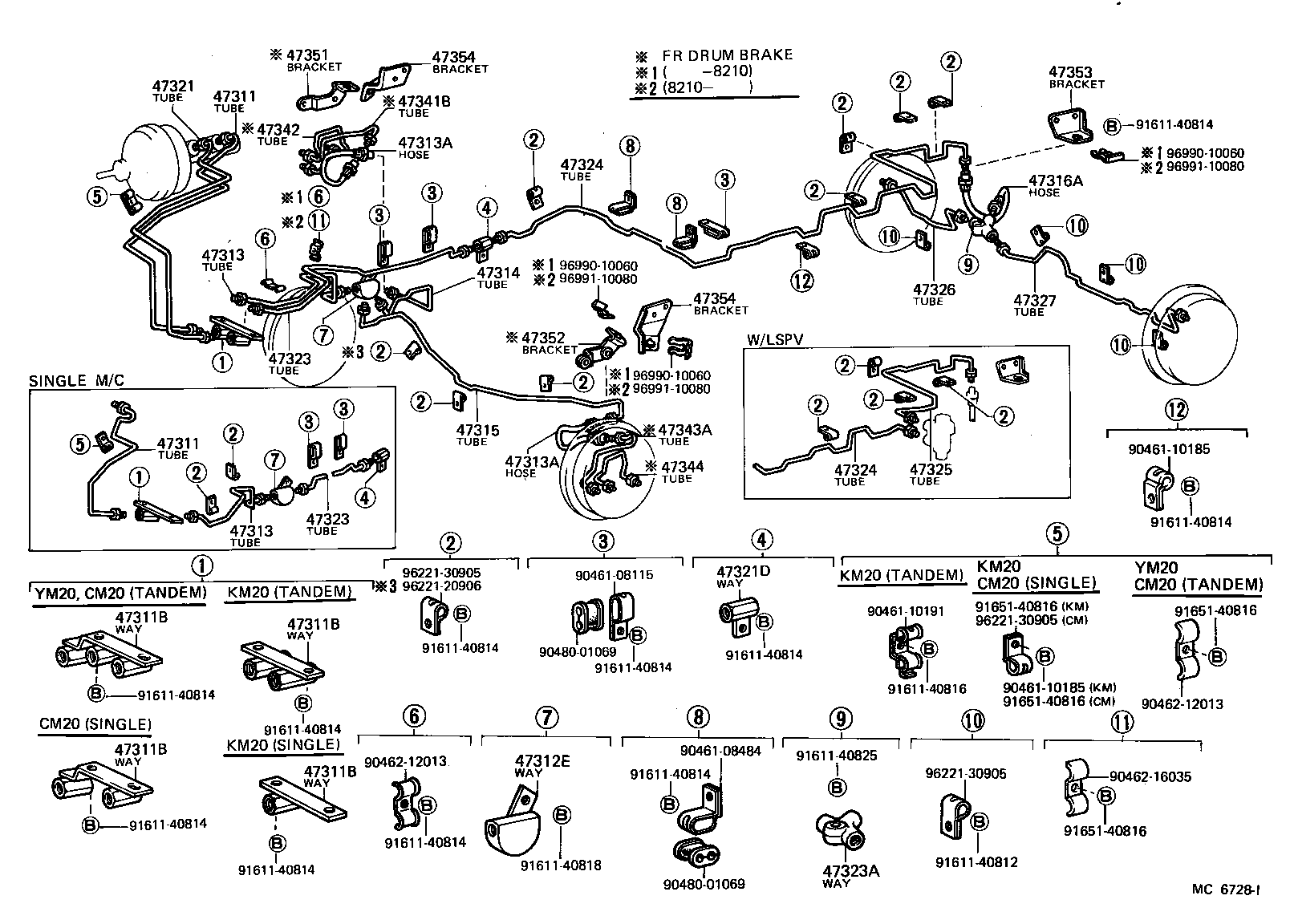

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-27050 |
KM20..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47311-27110 |
KM20..RHD..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47311-27050 |
KM20..RHD..(03S,06S,09S) TANDEM MASTER CYLINDER |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-27050 |
KM20..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47311-27110 |
KM20..RHD..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47311-27050 |
KM20..RHD..(03S,06S,09S) TANDEM MASTER CYLINDER |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10058 |
KM20..V..GEN SINGLE MASTER CYLINDER |
1 | ||
| 90412-10057 |
KM20..(HRF,SRF)..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10058 |
KM20..V..GEN SINGLE MASTER CYLINDER |
1 | ||
| 90412-10057 |
KM20..(HRF,SRF)..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10058 |
KM20..V..GEN SINGLE MASTER CYLINDER |
1 | ||
| 90412-10057 |
KM20..(HRF,SRF)..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10058 |
KM20..V..GEN SINGLE MASTER CYLINDER |
1 | ||
| 90412-10057 |
KM20..(HRF,SRF)..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90414-10005 |
KM20..GEN SINGLE MASTER CYLINDER |
1 | ||
| 90413-10096 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S TANDEM MASTER CYLINDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47312-27040 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47312-27040 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-32805 |
KM20..VSP..02S;KM20..03S,05S,06S,09S FR DRUM BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-32805 |
KM20..VSP..02S;KM20..03S,05S,06S,09S FR DRUM BRAKE |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-27030 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47314-27040 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33805 |
CM20,KM20,YM2# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-27020 |
KM20..RHD..(03S,06S,09S) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10063 |
CM20,KM20,YM20..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47322-27020 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47322-27020 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47323-27030 |
KM20..(HRF,SRF)..GEN W/LSPV |
1 | ||
| 47323-27010 |
KM20..V..GEN W/O LSPV |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47323-27030 |
KM20..(HRF,SRF)..GEN W/LSPV |
1 | ||
| 47323-27010 |
KM20..V..GEN W/O LSPV |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47324-27010 |
KM20..(HRF,SRF)..GEN |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47325-27030 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47326-27010 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-27020 |
KM20..VSP..02S;KM20..03S,05S,06S,09S |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-27020 |
KM20..VSP..02S;KM20..03S,05S,06S,09S |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-27020 |
KM20..VSP..02S;KM20..03S,05S,06S,09S |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-27020 |
KM20..VSP..02S;KM20..03S,05S,06S,09S |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-27020 |
KM20..VSP..02S;KM20..03S,05S,06S,09S |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-27030 |
KM20..VSP..02S;KM20..03S,05S,06S,09S |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-27010 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-27020 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) LH |
1 | ||
| 47353-27030 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) RH |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-27020 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) LH |
1 | ||
| 47353-27030 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) RH |
1 | ||
| Common parts | ||||
| 90461-08115 | ||||
| 90461-08484 | ||||
| 90461-10185 | ||||
| 90461-10191 | ||||
| 90462-12013 | ||||
| 90462-16035 | ||||
| 90480-01069 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91611-40818 | ||||
| 91611-40825 | ||||
| 91651-40816 | ||||
| 96221-20906 | ||||
| 96221-30905 | ||||
| 96990-10060 | ||||
| 96991-10080 | ||||

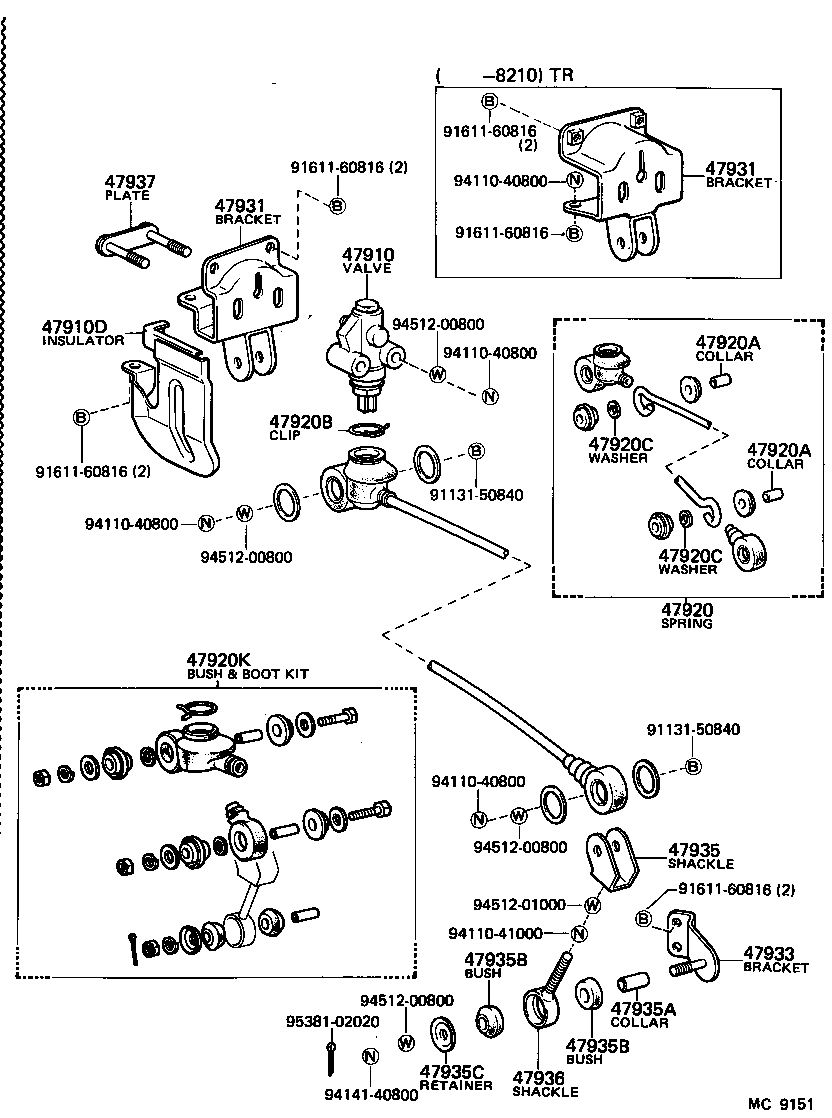

(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-27010 |
KM20..VSP..02S;KM20..03S,05S,06S,09S |
1 | ||
| 47910D - INSULATOR, LOAD SENSING VALVE HEAT | ||||
| 44786-27010 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-27030 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
CM20,KM20,YM2# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
CM20,KM20,YM2# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
CM20,KM20,YM2# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
CM20,KM20,YM2# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
CM20,KM20,YM2# |
2 | ||
| 47920K - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-35010 |
CM20,KM20,YM2# |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-27030 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-27030 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-27030 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
CM20,KM20,YM2# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
CM20,KM20,YM2# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
CM20,KM20,YM2# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
CM20,KM20,YM2# |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
CM20,KM20,YM2# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
CM20,KM20,YM2#..HRF,SRF |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26010 |
CM20,KM20,YM2# |
1 | ||
| Common parts | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
