KM20RV-JRZBE (1979)
Toyota Liteace
(7910- )RHD..4H

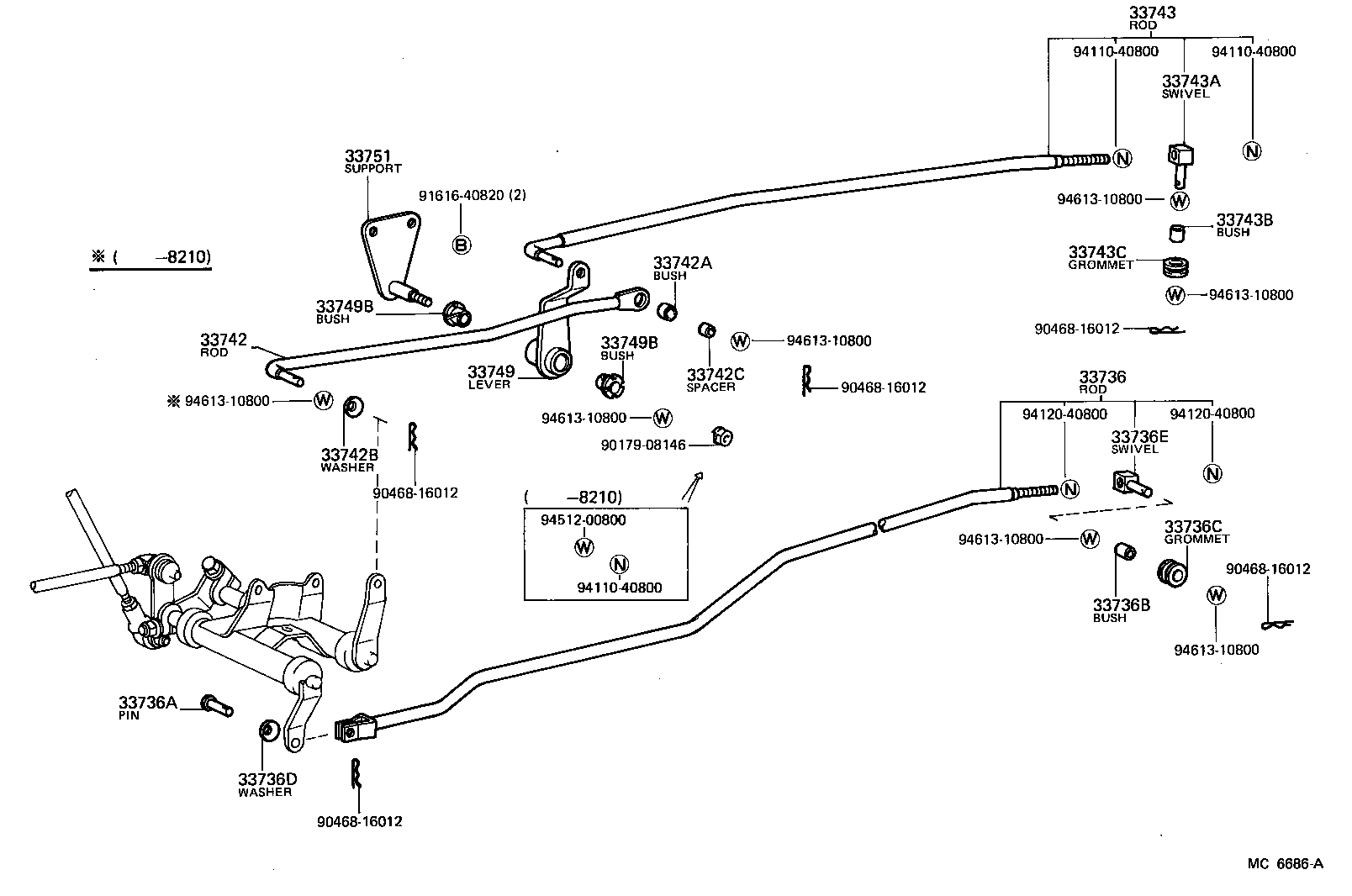

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33790-27010 |
KM20..RHD |
1 | ||
| 33736A - PIN, W/HOLE | ||||
| 90240-08094 |
KM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 33736B - BUSH(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90389-08005 |
CM20,KM20..4H,5H |
1 | ||
| 33736C - GROMMET(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90480-17177 |
CM20,KM20..4H,5H |
1 | ||
| 33736D - WASHER, WAVE(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90206-08016 |
KM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 33736E - SWIVEL, CONNECTING ROD | ||||
| 33723-10020 |
CM20,KM20..4H,5H |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-27030 |
KM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 33742A - BUSH(FOR SHIFTING ROD NO.2) | ||||
| 90385-10063 |
CM20,KM20..4H,5H |
1 | ||
| 33742B - WASHER, WAVE(FOR SHIFTING NO.2 ROD) | ||||
| 90206-08016 |
CM20,KM20..4H,5H |
1 | ||
| 33742C - SPACER(FOR SHIFTING, NO.2 ROD) | ||||
| 90560-08366 |
CM20,KM20..4H,5H |
1 | ||
| 33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33840-27030 |
KM20..RHD |
1 | ||
| 33743A - SWIVEL, CONNECTING ROD | ||||
| 33723-10020 |
CM20,KM20..4H |
1 | ||
| 33743B - BUSH, NO.1 | ||||
| 90389-08005 |
CM20,KM20..4H |
1 | ||
| 33743C - GROMMET | ||||
| 90480-17177 |
CM20,KM20..4H |
1 | ||
| 33749 - LEVER, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33749-27030 |
KM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-13007 |
CM20,KM20..4H,5H |
2 | ||
| 33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-13007 |
CM20,KM20..4H,5H |
2 | ||
| 33751 - SUPPORT, GEAR SHIFT LINK LEVER (FOR COLUMN SHIFT) | ||||
| 33705-27020 |
CM20,KM20..4H,5H |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90468-16012 | ||||
| 91616-40820 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
(7910-8210)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-27050 |
KM20..RHD |
1 | ||
| 33503 - LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT) | ||||
| 33503-27020 |
CM20,KM20..RHD..(4H,5H) |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
CM20,KM20..4H,5H |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
CM20,KM20..4H,5H |
2 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-36020 |
CM20,KM20..4H |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
CM20,KM20..4H,5H |
1 | ||
| 33515 - SEAT, CONTROL SHAFT UPPER | ||||
| 33515-30010 |
CM20,KM20..4H,5H |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
CM20,KM20..4H,5H |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
KM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
CM20,KM20..4H,5H |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-35010 |
CM20,KM20..4H,5H |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
CM20,KM20..4H,5H |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
CM20,KM20..4H,5H |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-27050 |
KM20..RHD |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-27030 |
KM20..RHD |
1 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
CM20,KM20..4H,5H |
2 | ||
| 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) | ||||
| 33536-25010 |
CM20,KM20..4H,5H |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-26012 |
KM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-36010 |
CM20,KM20..4H,5H |
1 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
CM20,KM20..4H,5H |
2 | ||
| 33602 - LEVER SUB-ASSY, SELECT (FOR COLUMN SHIFT) | ||||
| 33602-27020 |
KM20..RHD |
1 | ||
| 33607 - SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT) | ||||
| 33607-27030 |
KM20..RHD..(HRF,SRF) |
1 | ||
| 33607A - COVER, DUST (FOR CONTROL SUPPORT) | ||||
| 33775-28020 |
CM20,KM20..RHD..(4H,5H) |
4 | ||
| 33607A - COVER, DUST (FOR CONTROL SUPPORT) | ||||
| 33775-28020 |
CM20,KM20..RHD..(4H,5H) |
4 | ||
| 33607A - COVER, DUST (FOR CONTROL SUPPORT) | ||||
| 33775-28020 |
CM20,KM20..RHD..(4H,5H) |
4 | ||
| 33641 - LINK, SELECTING (FOR COLUMN SHIFT) | ||||
| 33641-27020 |
KM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 33670A - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-15082 |
CM20,KM20..RHD..(4H,5H) |
4 | ||
| 33670A - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-15082 |
CM20,KM20..RHD..(4H,5H) |
4 | ||
| 33670A - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-15082 |
CM20,KM20..RHD..(4H,5H) |
4 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33527-26030 |
KM20..RHD |
1 | ||
| 33711G - BOLT, CONTROL SHAFT LEVER LOCK | ||||
| 33218-35010 |
CM20,KM20..4H,5H |
1 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-10020 |
CM20,KM20..4H,5H |
1 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
CM20,KM20..4H,5H |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
CM20,KM20..4H,5H |
2 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
CM20,KM20..4H,5H |
2 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
CM20,KM20..4H,5H |
2 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33720-27020 |
KM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
CM20,KM20..4H,5H |
2 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-27020 |
KM20..RHD |
1 | ||
| 33744 - LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33744-27020 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 33744-27030 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT) | ||||
| 33750-35011 |
CM20,KM20..4H,5H |
1 | ||
| Common parts | ||||
| 90170-08052 | ||||
| 90201-08084 | ||||
| 90468-16012 | ||||
| 90580-14002 | ||||
| 91121-50840 | ||||
| 91611-40814 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||
| 96160-01200 | ||||
