KM20RV-JRZBE (1979)
Toyota Liteace
Production
Oct 1979
-
Oct 1982
Engine
4K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

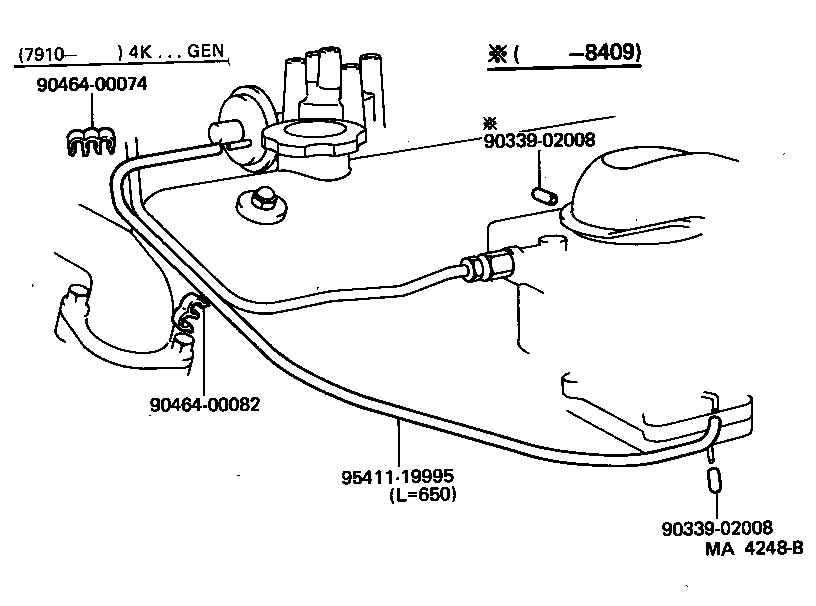

(7910-8202) ; (7910-8210)4K..EUR ; (7910- )4K..GEN
Click highlighted areas on diagram
(7910-8202)HONG KONG SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90339-02008 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 95411-19995 | ||||

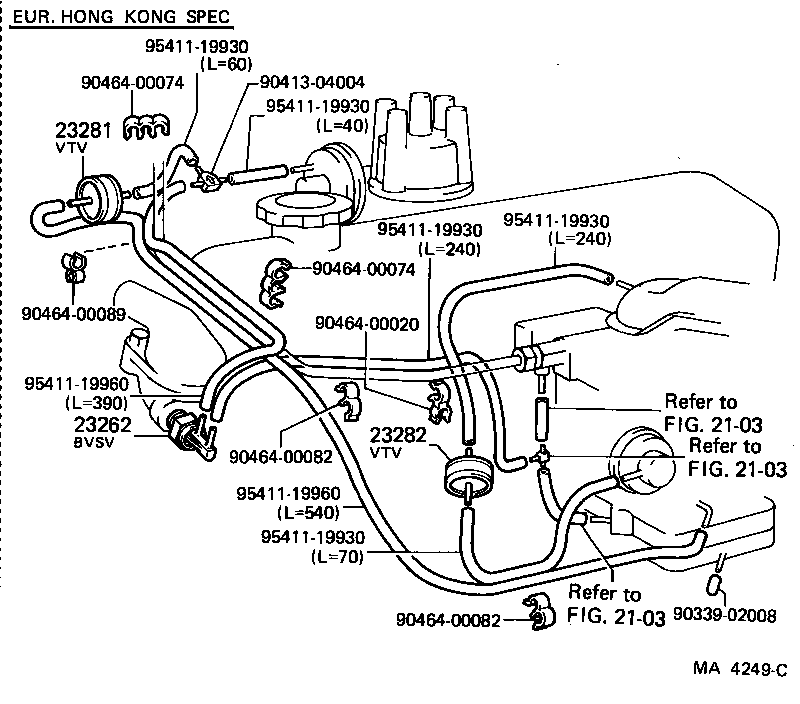

(7910-8210)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01029 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01058 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| Common parts | ||||
| 90339-02008 | ||||
| 90413-04004 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(7910- )4K
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01053 | ||||
| 90925-01054 | ||||
| 90925-01062 | ||||
| 90925-01064 | ||||
