KM20RV-JRZ (1979)
Toyota Liteace

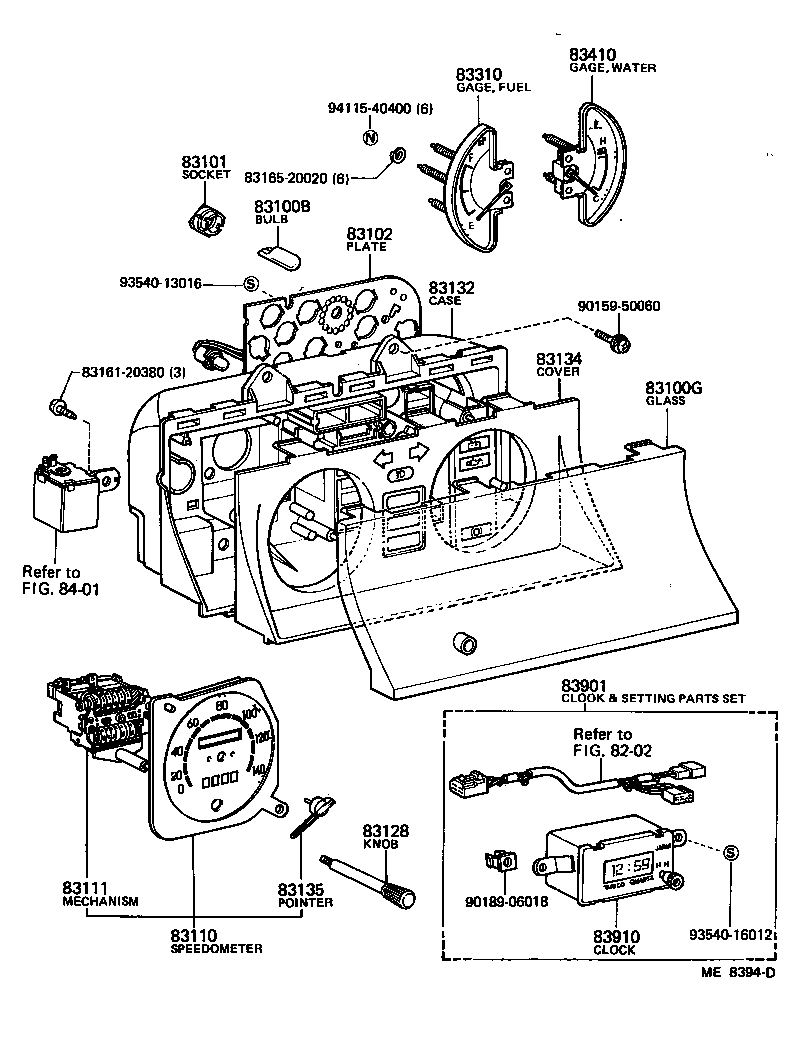

(7910-8210) ; (8210- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-95700 |
CM20,KM20 W/GREEN CAP,12V 3W |
4 | ||
| 99132-12034 |
CM20,KM20,YM2# 12V 3.4W,12V 3.4W |
13 | ||
| 83109-95700 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S W/GREEN CAP,12V 3W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-95700 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CM20,KM20,YM2# |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95700 |
KM20..LHD..GEN;KM20..RHD..(EUR,GEN) |
1 | ||
| 83247-95700 |
KM20..GEN |
1 | ||
| 83247-95700 |
KM20..LHD..VSP..EUR;KM20..RHD..(EUR,GEN);KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 83247-95709 |
KM20,YM2#..RHD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95701 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S KM |
1 | ||
| 83110-95703 |
KM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) MILE & KM |
1 | ||
| 83110-95708 |
CM20,KM20..RHD..(EUR,GEN) MILE & KM |
1 | ||
| 83110-95706 |
CM20,KM20..RHD..(EUR,GEN) KM |
1 | ||
| 83110-95710 |
CM20,KM20..RHD..(EUR,GEN) MILE & KM |
1 | ||
| 83110-95713 |
CM20,KM20,YM20..RHD..GEN KM |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83112-95701 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S KM |
1 | ||
| 83112-95703 |
KM20..GEN MILE & KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 83128-95J00 |
CM20,KM20,YM2#..RHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J00 |
CM20,KM20,YM2#..RHD |
1 | ||
| 83132-95010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95705 |
KM20..LHD..VSP..EUR;KM20..RHD..(EUR,GEN);KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 83134-95705 |
KM20..LHD..GEN;KM20..RHD..(EUR,GEN) |
1 | ||
| 83134-95705 |
KM20..GEN |
1 | ||
| 83134-95735 |
CM20,KM20,YM2#..RHD W/METER GLASS |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-95700 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95701 |
KM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 83243-95707 |
CM20,KM20,YM20..RHD..(EUR,GEN) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95701 |
KM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 83244-95703 |
KM20..GEN MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95701 |
CM20,KM20,YM20..RHD..GEN |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83165-20020 | ||||
| 90159-50060 | ||||
| 90189-06018 | ||||
| 93540-13016 | ||||
| 93540-16012 | ||||
| 94115-40400 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

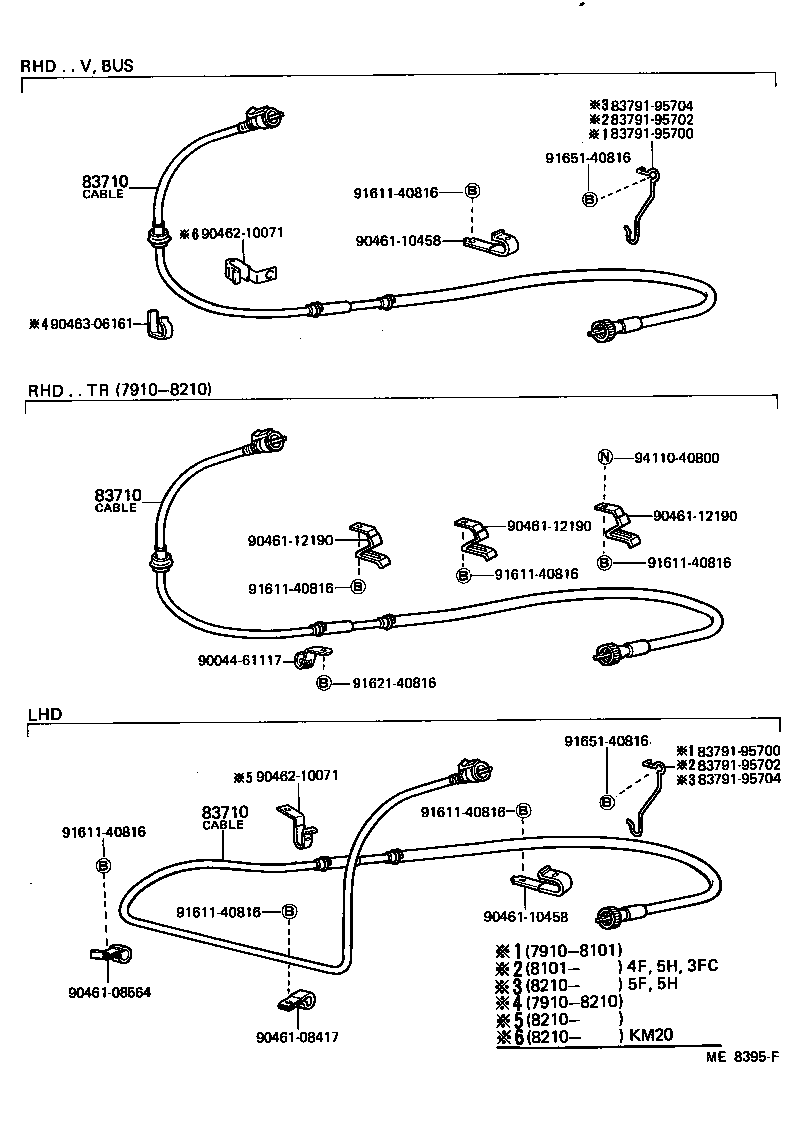

(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95700 |
KM20..RHD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95700 |
KM20..RHD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95700 |
KM20..RHD |
1 | ||
| Common parts | ||||
| 18379-95700 | ||||
| 83791-95700 | ||||
| 83791-95702 | ||||
| 83791-95704 | ||||
| 90044-61117 | ||||
| 90461-08417 | ||||
| 90461-08564 | ||||
| 90461-10458 | ||||
| 90461-12190 | ||||
| 90462-10071 | ||||
| 90463-06161 | ||||
| 91611-40816 | ||||
| 91621-40816 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||

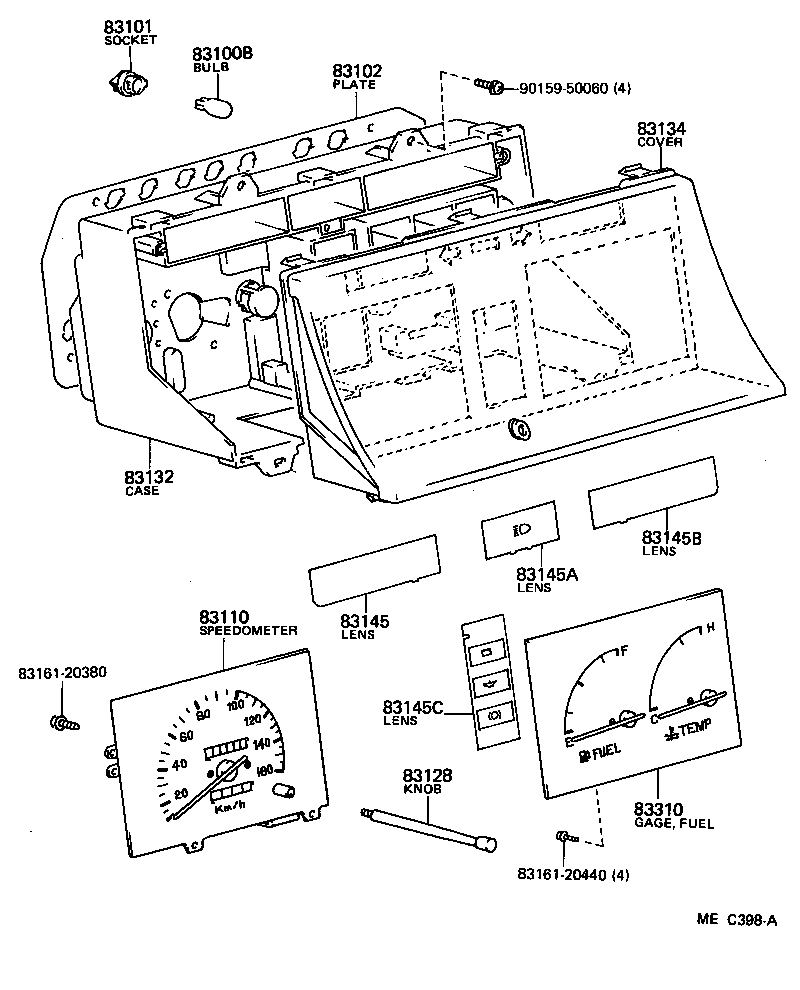

(8210- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-95700 |
CM20,KM20 W/GREEN CAP,12V 3W |
4 | ||
| 99132-12034 |
CM20,KM20,YM2# 12V 3.4W,12V 3.4W |
13 | ||
| 83109-95700 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S W/GREEN CAP,12V 3W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CM20,KM20,YM2# |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95700 |
KM20..LHD..GEN;KM20..RHD..(EUR,GEN) |
1 | ||
| 83247-95700 |
KM20..GEN |
1 | ||
| 83247-95700 |
KM20..LHD..VSP..EUR;KM20..RHD..(EUR,GEN);KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 83247-95709 |
KM20,YM2#..RHD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95701 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S KM |
1 | ||
| 83110-95703 |
KM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) MILE & KM |
1 | ||
| 83110-95708 |
CM20,KM20..RHD..(EUR,GEN) MILE & KM |
1 | ||
| 83110-95706 |
CM20,KM20..RHD..(EUR,GEN) KM |
1 | ||
| 83110-95710 |
CM20,KM20..RHD..(EUR,GEN) MILE & KM |
1 | ||
| 83110-95713 |
CM20,KM20,YM20..RHD..GEN KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 83128-95J00 |
CM20,KM20,YM2#..RHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J00 |
CM20,KM20,YM2#..RHD |
1 | ||
| 83132-95010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95705 |
KM20..LHD..VSP..EUR;KM20..RHD..(EUR,GEN);KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 83134-95705 |
KM20..LHD..GEN;KM20..RHD..(EUR,GEN) |
1 | ||
| 83134-95705 |
KM20..GEN |
1 | ||
| 83134-95735 |
CM20,KM20,YM2#..RHD W/METER GLASS |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95700 |
KM20,YM2#..RHD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95701 |
CM20,KM20,YM2#..RHD |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95702 |
CM20,KM20,YM20..RHD..GEN |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95714 |
CM20,KM20,YM20..RHD..(EUR,GEN) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95701 |
KM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 83243-95707 |
CM20,KM20,YM20..RHD..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90159-50060 | ||||

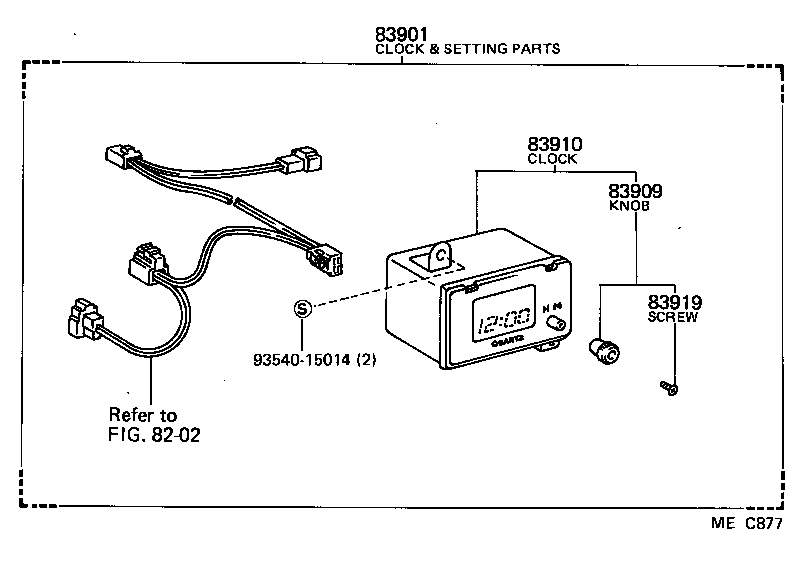

(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83909 - KNOB, CLOCK | ||||
| 83909-12230 |
CM20,KM20,YM20..RHD..GEN |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95701 |
CM20,KM20,YM20..RHD..GEN |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
CM20,KM20,YM20..RHD..GEN |
1 | ||
| Common parts | ||||
| 93540-15014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
