KM20RV-JRZ (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )CM20,KM20..STD ; (8311- )YM2#..V4D

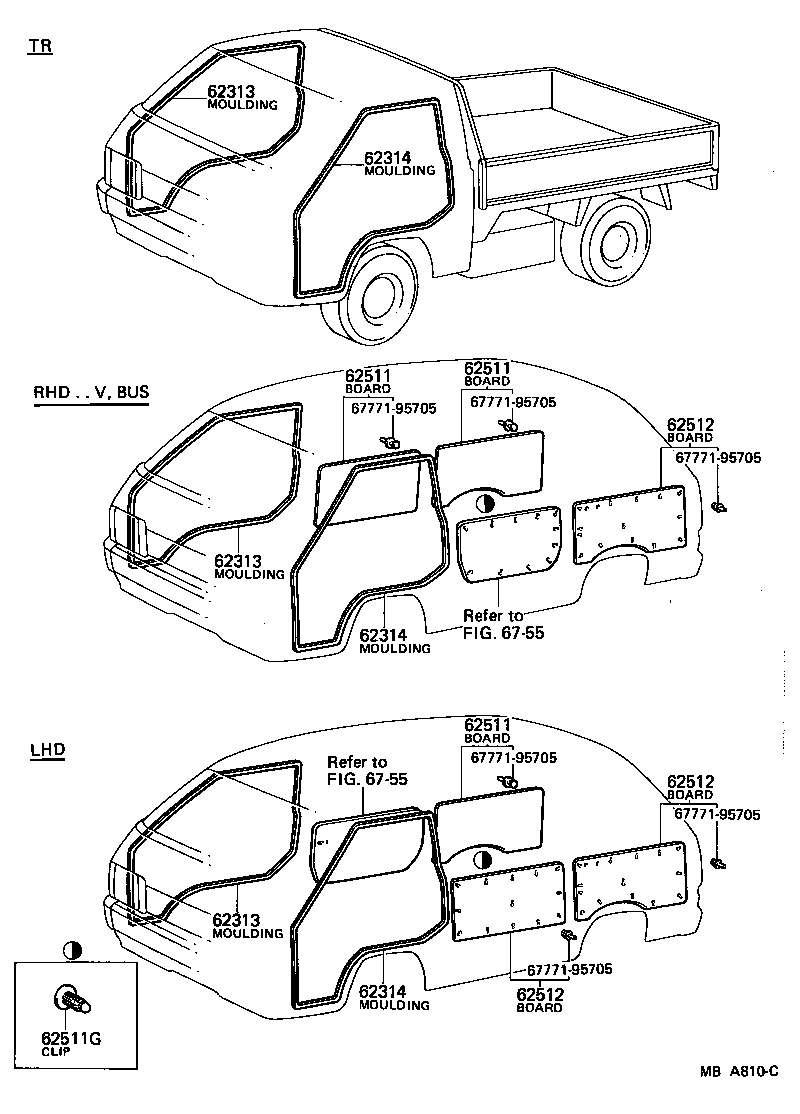

Click highlighted areas on diagram

diagram 62313 62313 62313 62314 62314 62314 62511 62511 62511 62511G 62512 62512 62512 6755 6755 6777195705 6777195705 6777195705 6777195705 6777195705 6777195705
Part # Description Qty Price
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95703

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
62313-9570305

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

BEIGE,BEIGE

 1
62313-9570316

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

BROWN,BROWN

 1
62313-95703

KM20..(HRF,SRF)..(ARL,GEN)

 1
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95703

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
62313-9570305

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

BEIGE,BEIGE

 1
62313-9570316

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

BROWN,BROWN

 1
62313-95703

KM20..(HRF,SRF)..(ARL,GEN)

 1
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95703

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
62313-9570305

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

BEIGE,BEIGE

 1
62313-9570316

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

BROWN,BROWN

 1
62313-95703

KM20..(HRF,SRF)..(ARL,GEN)

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95703

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
62313-95703

KM20..(HRF,SRF)..(ARL,GEN)

 1
62313-9570305

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

BEIGE,BEIGE

 1
62313-9570316

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

BROWN,BROWN

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95703

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
62313-95703

KM20..(HRF,SRF)..(ARL,GEN)

 1
62313-9570305

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

BEIGE,BEIGE

 1
62313-9570316

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

BROWN,BROWN

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95703

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
62313-95703

KM20..(HRF,SRF)..(ARL,GEN)

 1
62313-9570305

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

BEIGE,BEIGE

 1
62313-9570316

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

BROWN,BROWN

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95700

KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

FR

 1
62130-9570005

KM20..RHD..(06S,09S)

FR,BEIGE,BEIGE

 1
62140-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD

RR

 1
62130-95700

KM20..RHD..(02S,05S,09S)..(EUR,GEN);KM20..RHD..V4D..(02S,03S,06S)..(ARL,GEN)

FR

 1
62141-95722

CM20,YM2#..V4D;KM20..02S..ARL;KM20..V..(EUR,GEN)

RR

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95700

KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

FR

 1
62130-9570005

KM20..RHD..(06S,09S)

FR,BEIGE,BEIGE

 1
62140-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD

RR

 1
62130-95700

KM20..RHD..(02S,05S,09S)..(EUR,GEN);KM20..RHD..V4D..(02S,03S,06S)..(ARL,GEN)

FR

 1
62141-95722

CM20,YM2#..V4D;KM20..02S..ARL;KM20..V..(EUR,GEN)

RR

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95700

KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

FR

 1
62130-9570005

KM20..RHD..(06S,09S)

FR,BEIGE,BEIGE

 1
62140-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD

RR

 1
62130-95700

KM20..RHD..(02S,05S,09S)..(EUR,GEN);KM20..RHD..V4D..(02S,03S,06S)..(ARL,GEN)

FR

 1
62141-95722

CM20,YM2#..V4D;KM20..02S..ARL;KM20..V..(EUR,GEN)

RR

 1
62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-1003405

CM20,YM2#..V4D;KM20..02S..ARL;KM20..V..(EUR,GEN)

BEIGE,REDDISH BROWN

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62150-95703

KM20..RHD..VSG

RR

 1
62150-95707

KM20..RHD..05S..EUR;KM20..RHD..(02S,03S,06S)

RR

 1
62142-95748

CM20,KM20..RHD..06S

RR

 1
62142-95739

CM20,KM20..RHD..V..GEN

RR,W/O RR SEAT

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62150-95703

KM20..RHD..VSG

RR

 1
62150-95707

KM20..RHD..05S..EUR;KM20..RHD..(02S,03S,06S)

RR

 1
62142-95748

CM20,KM20..RHD..06S

RR

 1
62142-95739

CM20,KM20..RHD..V..GEN

RR,W/O RR SEAT

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62150-95703

KM20..RHD..VSG

RR

 1
62150-95707

KM20..RHD..05S..EUR;KM20..RHD..(02S,03S,06S)

RR

 1
62142-95748

CM20,KM20..RHD..06S

RR

 1
62142-95739

CM20,KM20..RHD..V..GEN

RR,W/O RR SEAT

 1
Common parts
67771-95705
Linked diagrams
6755
