KM20RV-JRW (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

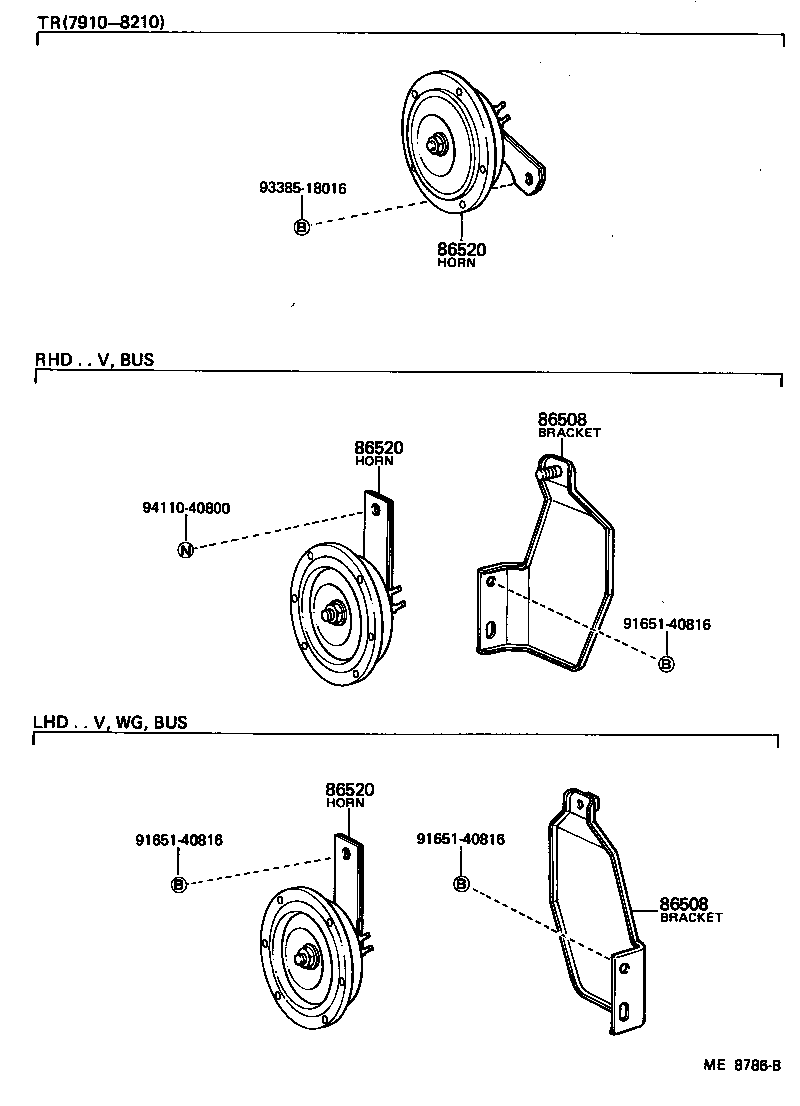

Click highlighted areas on diagram

diagram 86508 86508 86520 86520 86520 9165140816 9165140816 9165140816 9338518016 9411040800
Part # Description Qty Price
86508 - BRACKET SUB-ASSY, HORN
86521-95701

KM20..RHD..(HRF,SRF)

 1
86508 - BRACKET SUB-ASSY, HORN
86521-95701

KM20..RHD..(HRF,SRF)

 1
86520 - HORN ASSY, LOW PITCHED
86520-12111

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 1
86520 - HORN ASSY, LOW PITCHED
86520-12111

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 1
86520 - HORN ASSY, LOW PITCHED
86520-12111

KM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR

 1
Common parts
91651-40816
93385-18016
94110-40800
