KM20RV-JRW (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

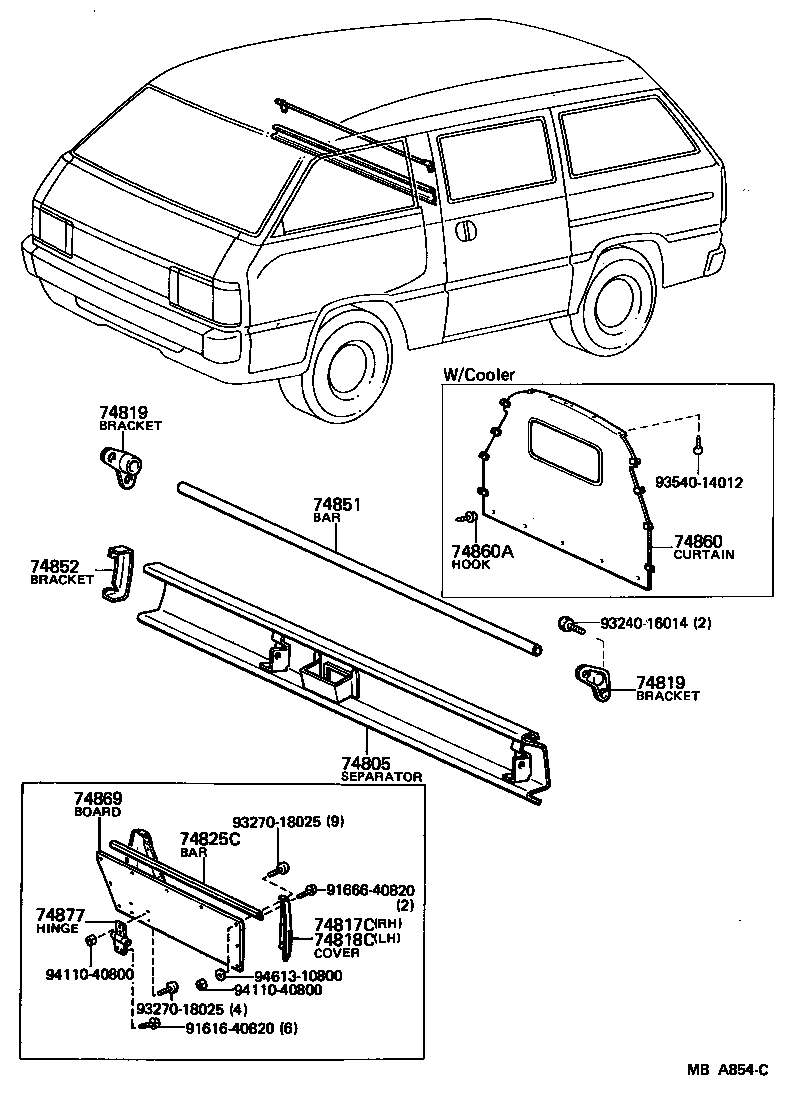

Click highlighted areas on diagram

diagram 74805 74817C 74818C 74819 74819 74825C 74851 74852 74860 74860A 74869 74877 9161640820 9166640820 9324016014 9327018025 9327018025 9354014012 9411040800 9411040800 9461310800
Part # Description Qty Price
74805 - SEPARATOR SUB-ASSY
74805-95705

KM20..4H..05S..EUR

 1
74805-95705

KM20..RHD..05S

 1
74819 - BRACKET, SEPARATOR FRAME
74855-9570106

KM20..RHD..(HRF,SRF)

RH,BROWN,BROWN

 1
74854-9570106

KM20..RHD..(HRF,SRF)

LH,BROWN,BROWN

 1
74819 - BRACKET, SEPARATOR FRAME
74855-9570106

KM20..RHD..(HRF,SRF)

RH,BROWN,BROWN

 1
74854-9570106

KM20..RHD..(HRF,SRF)

LH,BROWN,BROWN

 1
74851 - BAR, SEPARATOR
74807-9570006

KM20..RHD..(HRF,SRF)

BROWN,BROWN

 1
74851-95702

KM20..RHD..V

 1
74852 - BRACKET, SEPARATOR, RH
74852-95701

KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
Common parts
91616-40820
91666-40820
93240-16014
93270-18025
93540-14012
94110-40800
94613-10800
